Description and location of parts

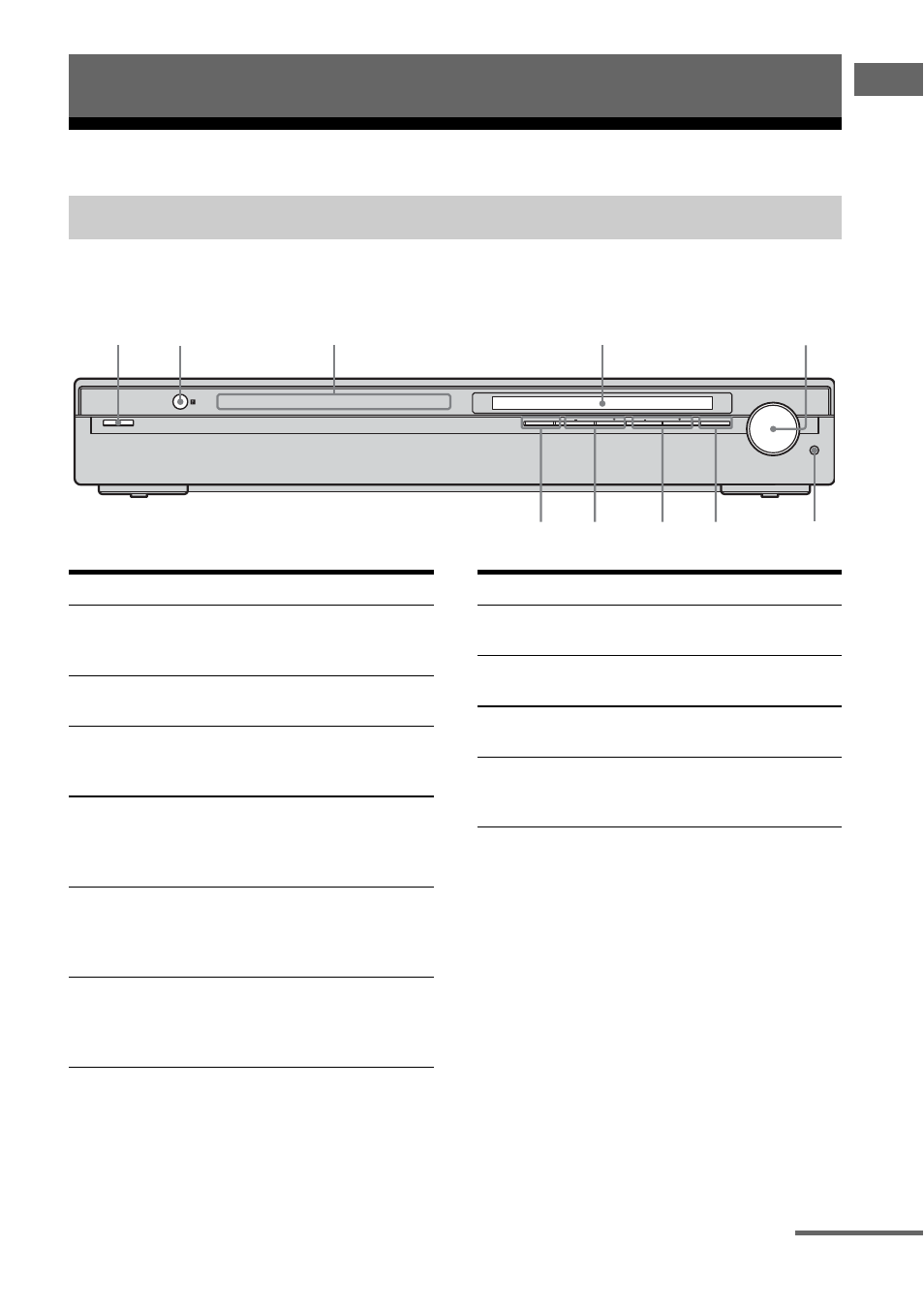

Front panel
Getting Started
Receiver
DMPORT VIDEO 1 VIDEO 2/BD DVD SAT TV SA-CD/CD TUNER
MASTER VOLUME
AUTO CAL MIC
INPUT SELECTOR PRESET TUNING SOUND FIELD MUTING
?/1
2 4 3 1 5
6 7 q; 8 9
Name Function
A ?/1
(on/standby)
Press to turn the receiver
on or off (page 21, 28, 29,
43).
B Remote sensor
Receives signals from
remote commander.
C Input lamps The lamp of the chosen
input source lights up
(page 27).
D Display
The current status of the
selected component or a
list of selectable items
appears here (page 6).
E MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 26, 27,
28, 29).
F AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 23).
Name Function
G MUTING
Press to mute the sound
(page 27).
H SOUND FIELD
+/–
Press to select a sound
field (page 38, 40, 42, 43).
I PRESET TUNING
+/–
Press to select a preset
station (page 46).
J INPUT
SELECTOR
Press to select the input
source to playback (page
27, 28, 29, 44, 45, 46, 54).
continued
