HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.

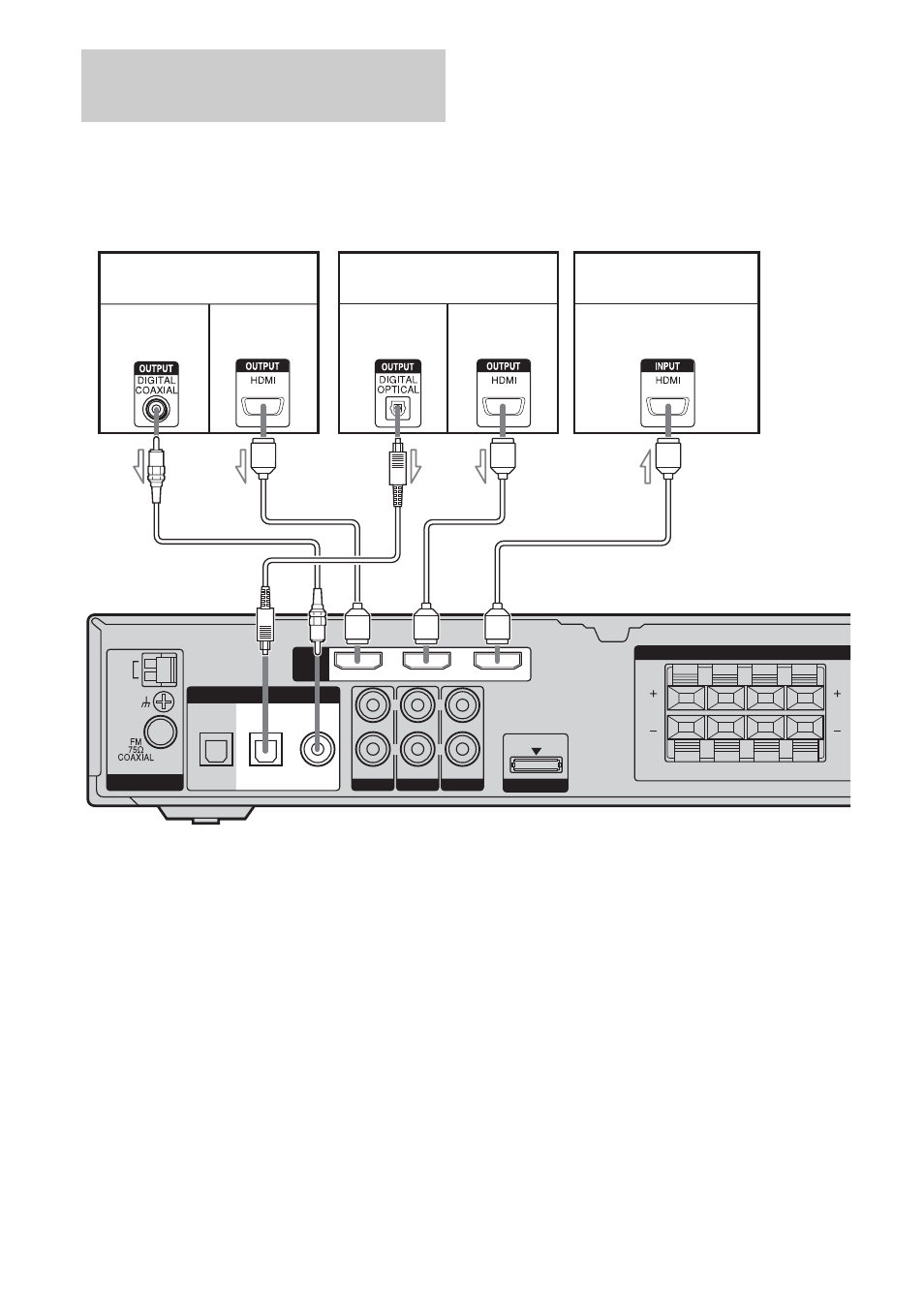

Connecting components with
HDMI jacks
AUDIO IN
DVD IN VIDEO 2/BD IN OUT
ANTENNA SA-CD/CD
AUDIO IN
TV
AUDIO IN FRONT R SUR L SUR R FRONT L
VIDEO 1 DMPORT
SPEAKERS
AM
R
L
R
L
OPT IN
SAT
OPT IN
VIDEO 2/BD
COAX IN
DVD
HDMI
DIGITAL
DVD player Blu-ray disc player TV, projector, etc.
A Coaxial digital cord (supplied)
B HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
C Optical digital cord (not supplied)
B B B
Audio signal Audio/video
signal
Audio signal Audio/video
signal
Audio/video signal
A C
