14 GB

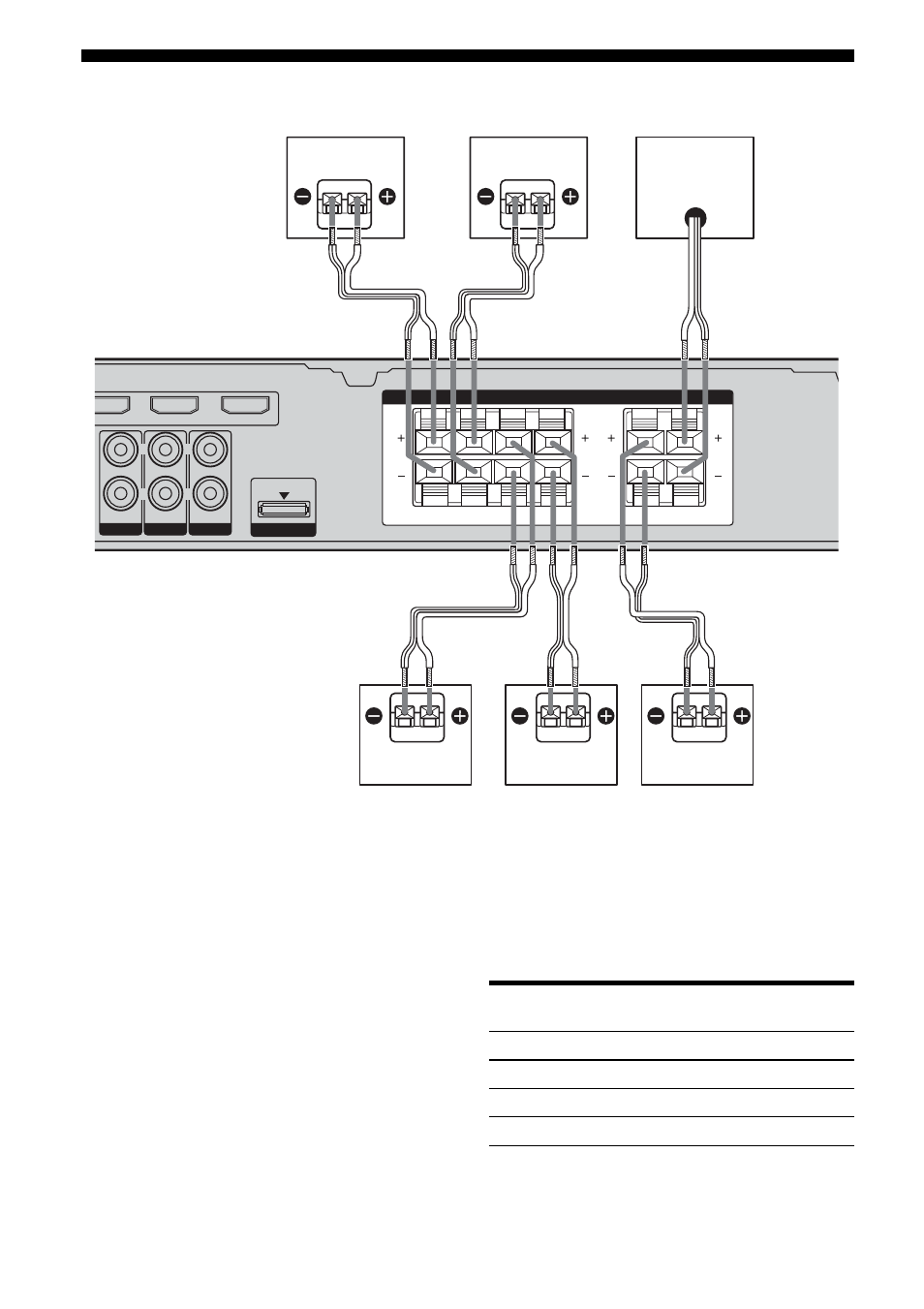

2: Connecting speakers
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSub woofer
a)
Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
Note
Do not connect or disconnect the speaker cords to
SPEAKERS terminals while the receiver is turned
on.
Note on speakers
To connect the speakers correctly, be sure to
check the type of speakers by referring to the
speaker label* at the rear panel or bottom of
the speakers.
* The center speaker and sub woofer do not have the
character on the speaker label. For details on the
speaker type, see page 3.
AUDIO IN
DVD IN VIDEO 2/BD IN OUT
SA-CD/CD
AUDIO IN
TV
AUDIO IN
VIDEO 1 DMPORT
R
L
R
L
SUBWOOFER
SPEAKERS
FRONT R SUR L CENTER SUR R FRONT L
F
C D E
A
A Speaker cord (supplied)
a)
A
A A
B
A
A
Character on
speaker label Speaker type
L Front left
R Front right
SL Surround left
SR Surround right
