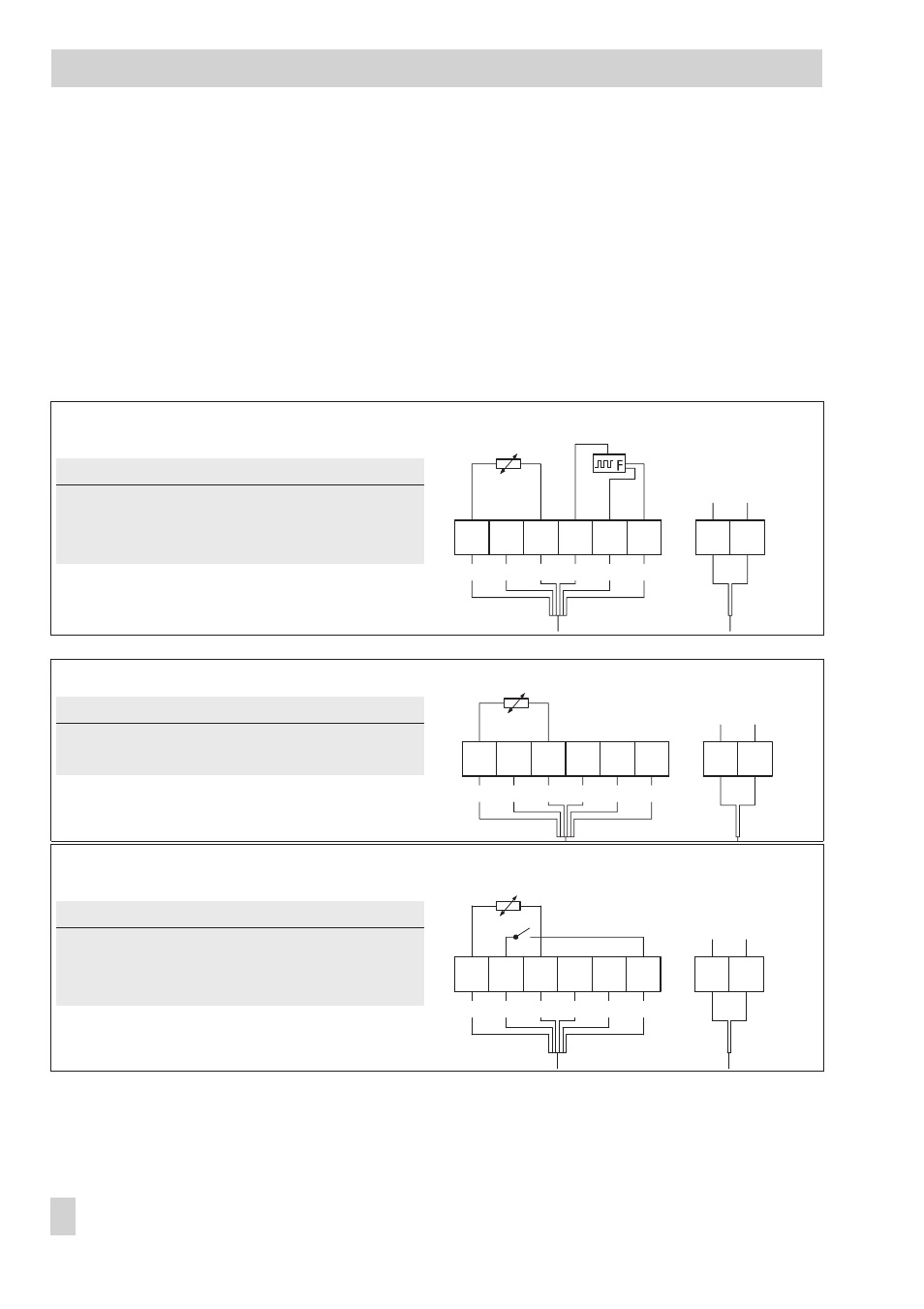

9.2 Wiring for Type 5757 (refer to EB 5757 EN)
Note: Terminals at point of installation, not included in scope of delivery
1) Water flowmeter
2) Flow switch
blk black · bl blue · br brown · gr green · or orange · rd red · ye yellow
20
EB 5766 EN
Appendix
or ye rd br gr blk
230V, 50Hz
5V GND L N
BE1
Pt 1000
Operation with Pt 1000 sensor and binary contact for
switching between set points
Functions WE Configuration
Hot water tapping recognition 1 F01 - 0
Current input 0 F05 - 0
Binary input function 0 F08 - 1
or ye rd br gr blk
230V, 50Hz
Pt 1000
5V GND L N
1)
Operation with Pt 1000 sensor and water flowmeter
= Default setting (WE)
Functions WE Configuration
Hot water tapping recognition 1 F01 - 1
Water flowmeter 1 F02 - 1
Current input 0 F05 - 0
or ye rd br gr blk
230V, 50Hz
5V GND L N
Pt 1000
Operation with Pt 1000 sensor
Functions WE Configuration
Hot water tapping recognition 1 F01 - 0
Current input 0 F05 - 0
