Weights of controllers with electric actuators
Type 5757/-7 5724 5725
Weight without valve, approx. kg 0.7 1.1 1.3
EB 5766 EN
17
Dimensions in mm and weights
Type 3222/5757(-7),
only up to DN 25
Types 3222/5724
Types 3222/5725
Intermediate
insulating piece

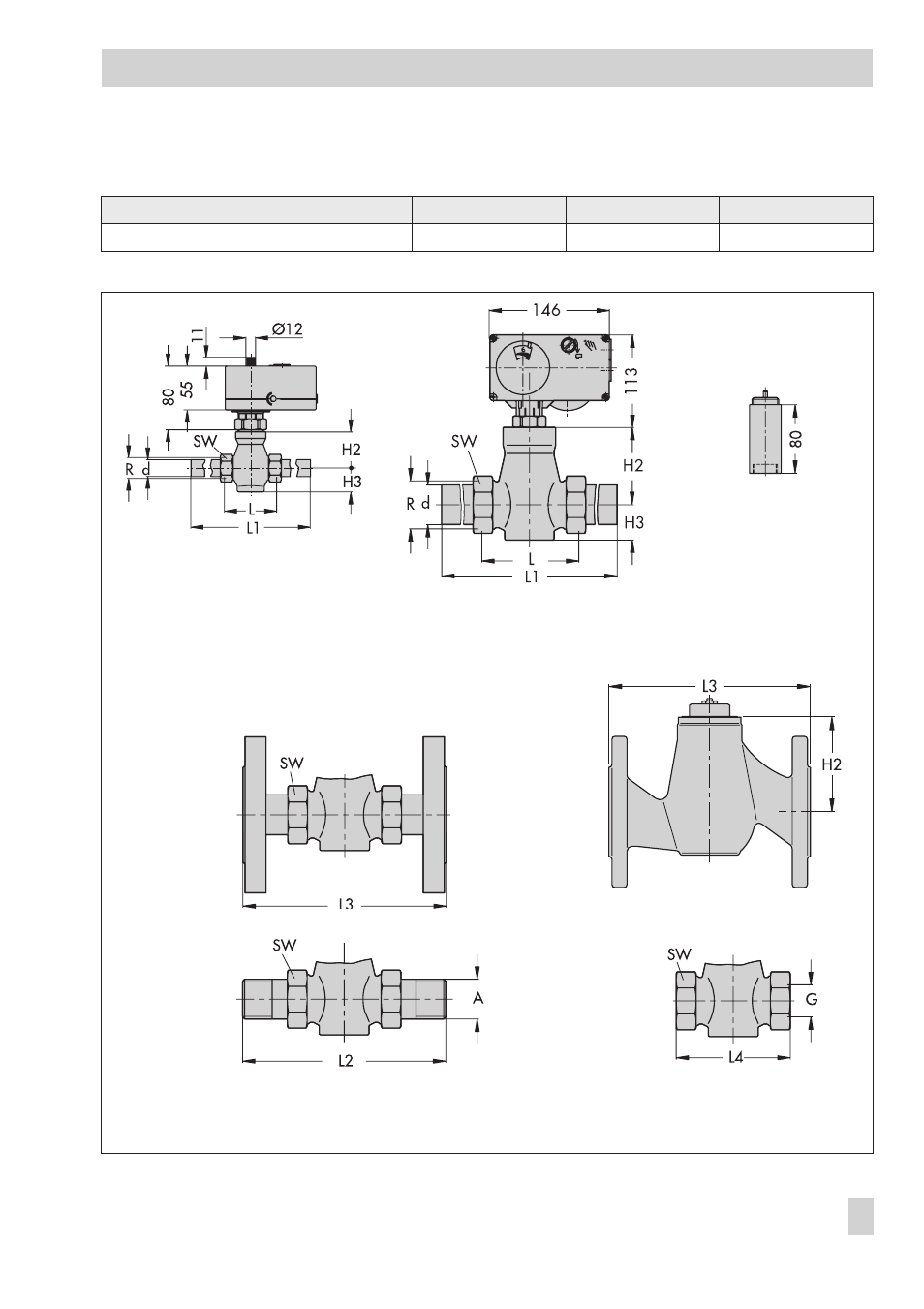

Fig. 6 · Top: Valve dimensions (version with welding ends) · Bottom: Other valve versions
Version with
flanges Flanged valve
body version
Version with
threaded ends Version with
female thread
