Form No. 702718 Rev. A March, 2005 23
Owner’s Manual - Regal Intensive Care Unit
34 - Oxygen Port to
Filter/Fans
Compartment
After leaving the oxygen flow meter, oxygen is directed through
plastic tubing to this port in the partition wall between the electron-
ics compartment and the filter/fans compartment (Figure 26). The
oxygen is injected into the airflow after it passes through the Soda-
lime filter, and is then carried to the animal compartment in the
circulating air. Also, refer to Figure 29.

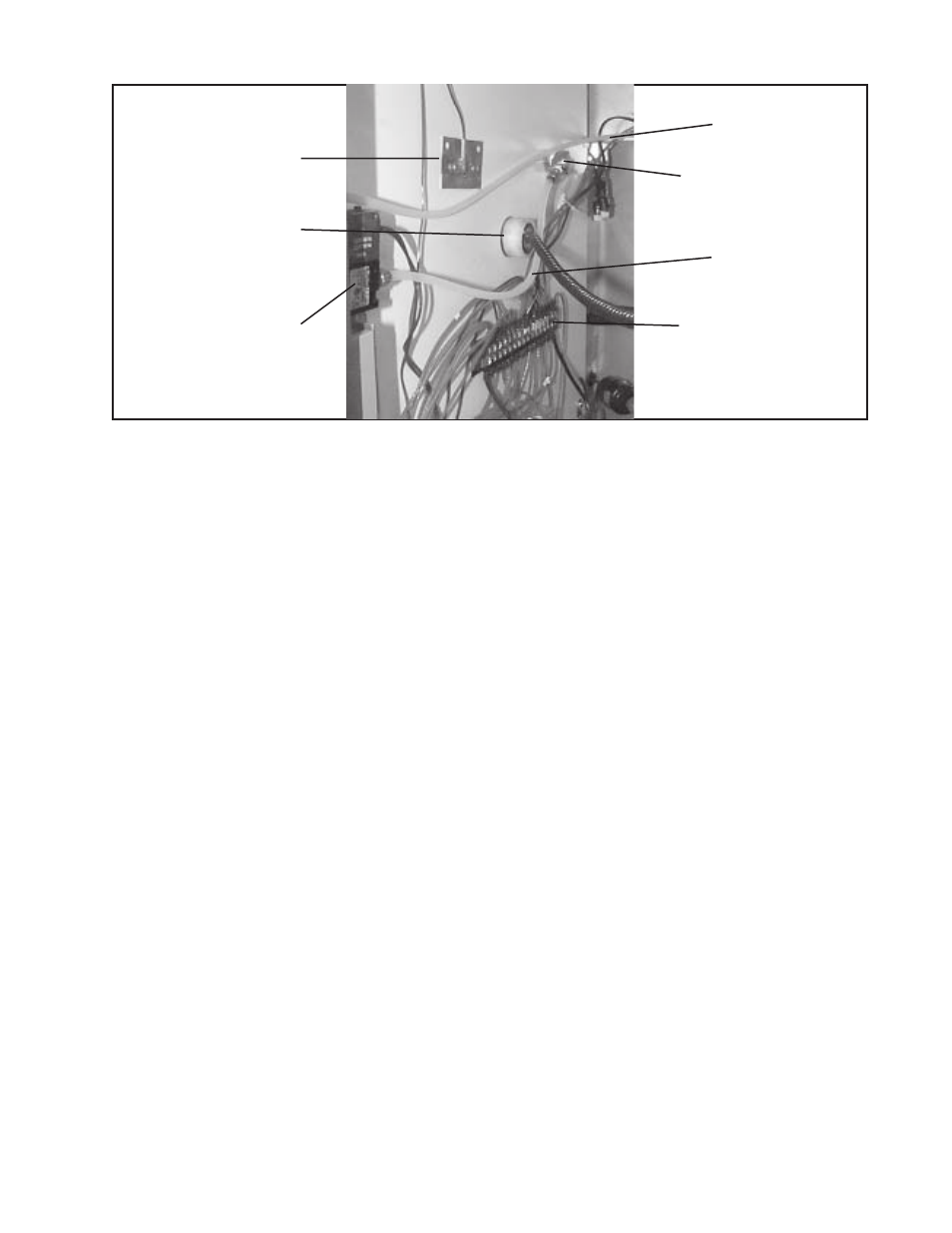

Figure 26. Main Terminal Block, Oxygen Sensor/Fuel Cell,and Oxygen Port to Filter/
Fans Compartment
Temperature
Sensor Mount
32 - Oxygen
Sensor/Fuel Cell
23 - Oxygen Flow
Meter & Solenoid
Oxygen Line to
Flow Meter
34 - Oxygen Port to
Filter/Fans
Compartment
Oxygen Line to
Filter/Fans
Compartment
32 - Main Terminal
Block
