NL50 INSTALLATION/OPERATION MANUAL
DO NOT PLUG LIGHT IN UNTIL INSTRUCTED IN MANUAL
READ ALL DIRECTIONS FIRST THEN REFER TO EXAMPLE IMAGES BEFORE PERFORMING THAT STEP
A.

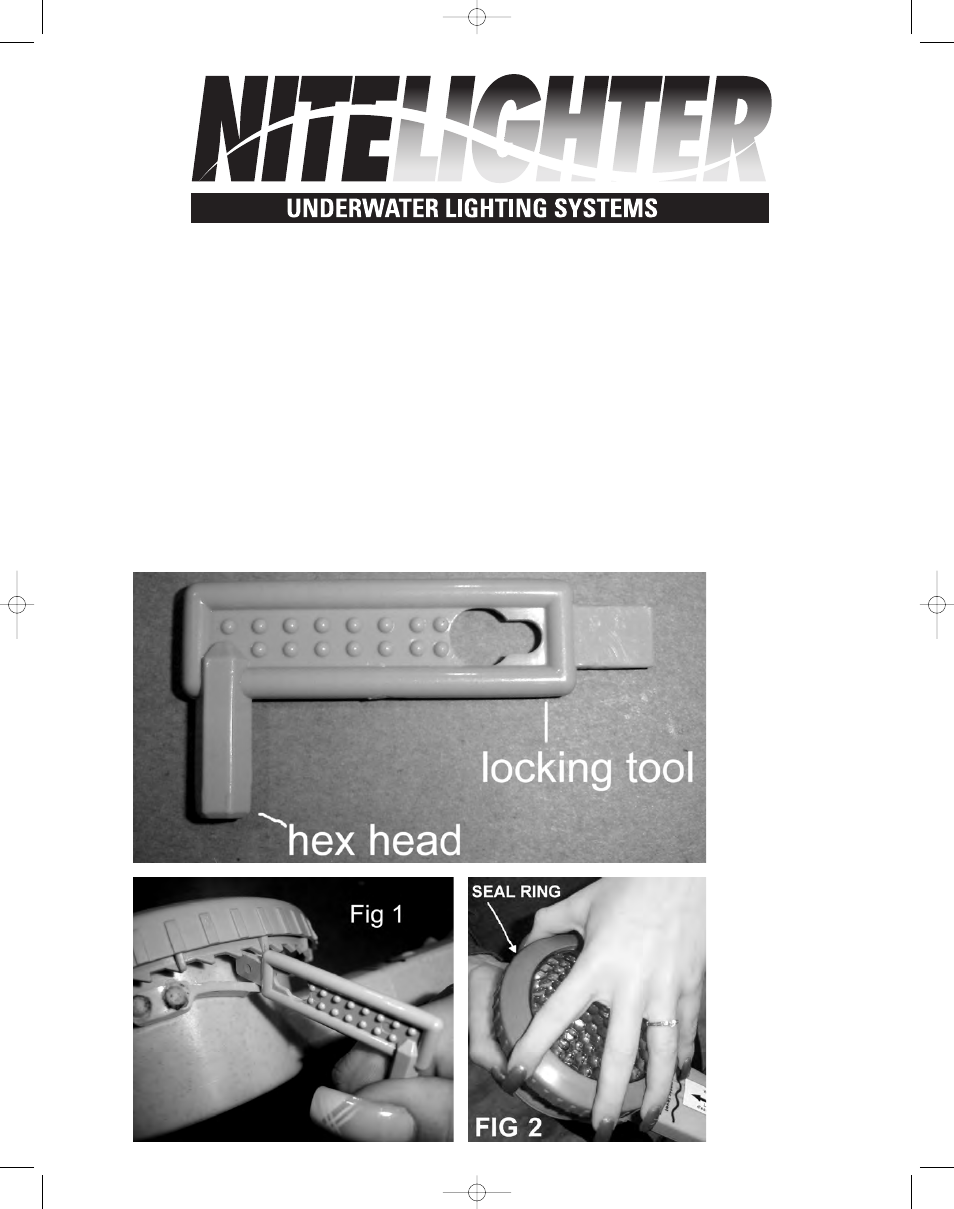

To install bulb, place the light on a table or similar flat, dry working surface.
Use the supplied seal ring lock key to loosen the seal ring. Insert the key into
the locking latch on the bottom of the light as shown in FIG 1. Turn and hold
the key to the left to release the locking mechanism. At the same time rotate
the seal ring in a counter clockwise direction to loosen. Remove ring and lens.
(See FIG 2)
