PAGE 74
QUICKIE Z-BOP

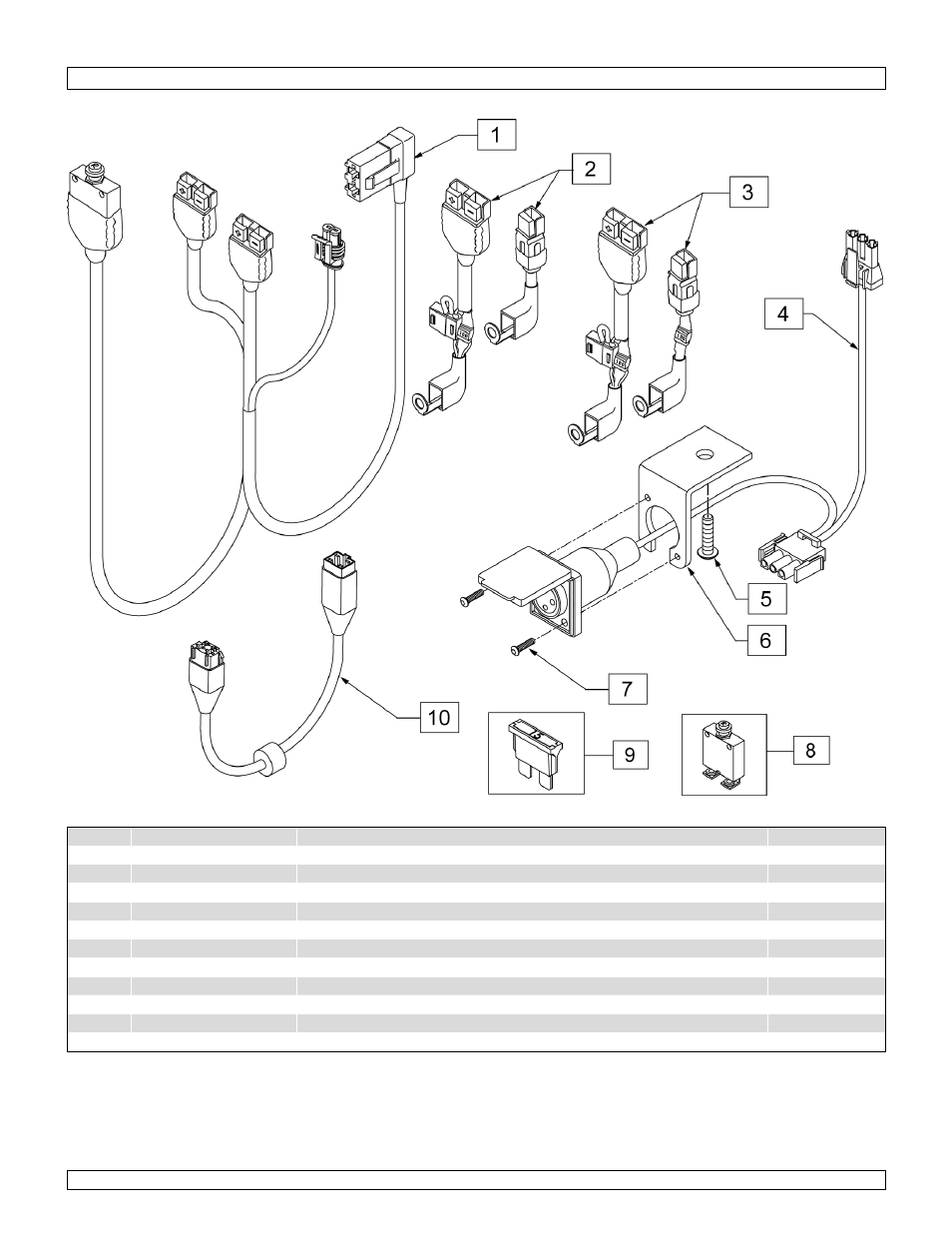

Z-BOP - WIRING
Pos.
Item Number
Description
Remarks
1
013180
HARNESS MAIN/AUX POWER B
4
012392-060
HARN OFFBOARD CHARGER 600 MM
5
230032
M6 X 16 B/H CAP SCREW
6
014356
CHARGER MOUNTING BRKT
7
281036
4-40 X 3/8 PAN PHIL M/S BLK
10
101366
HARN LT MTR ADAPTR ZBOP/DELPH
10
101367
HARN RT MTR ADAPTR ZBOP/DELPH
2
101762
HARNESS BATTERY HIGH DEUNION
3
101761
HARNESS BATTERY LOW DEUNION
8
133015
CIRCUIT BREAKER 70 AMP
9
131058
FUSE ATO BLADE 15 AMP
