Switch off TV and external equipment before
connecting cables.
(Cables are not supplied.)
1 Connect DVD Player or other
equipment’s S-Video Out to
the TV S-Video In Jack.
Using the S-Video jack over-
rides the Video (AV1) jack.
For external equipment without an S-Video
jack, refer to Step 1 on page 11 for AV
connections.
2 Connect DVD Player or other
equipment’s Audio Out to the
TV Audio In Jacks.
3 Press POWER to turn on the TV. Turn on
external equipment also.
4 Press the INPUT key to select VIDEO1 or
VIDEO2.

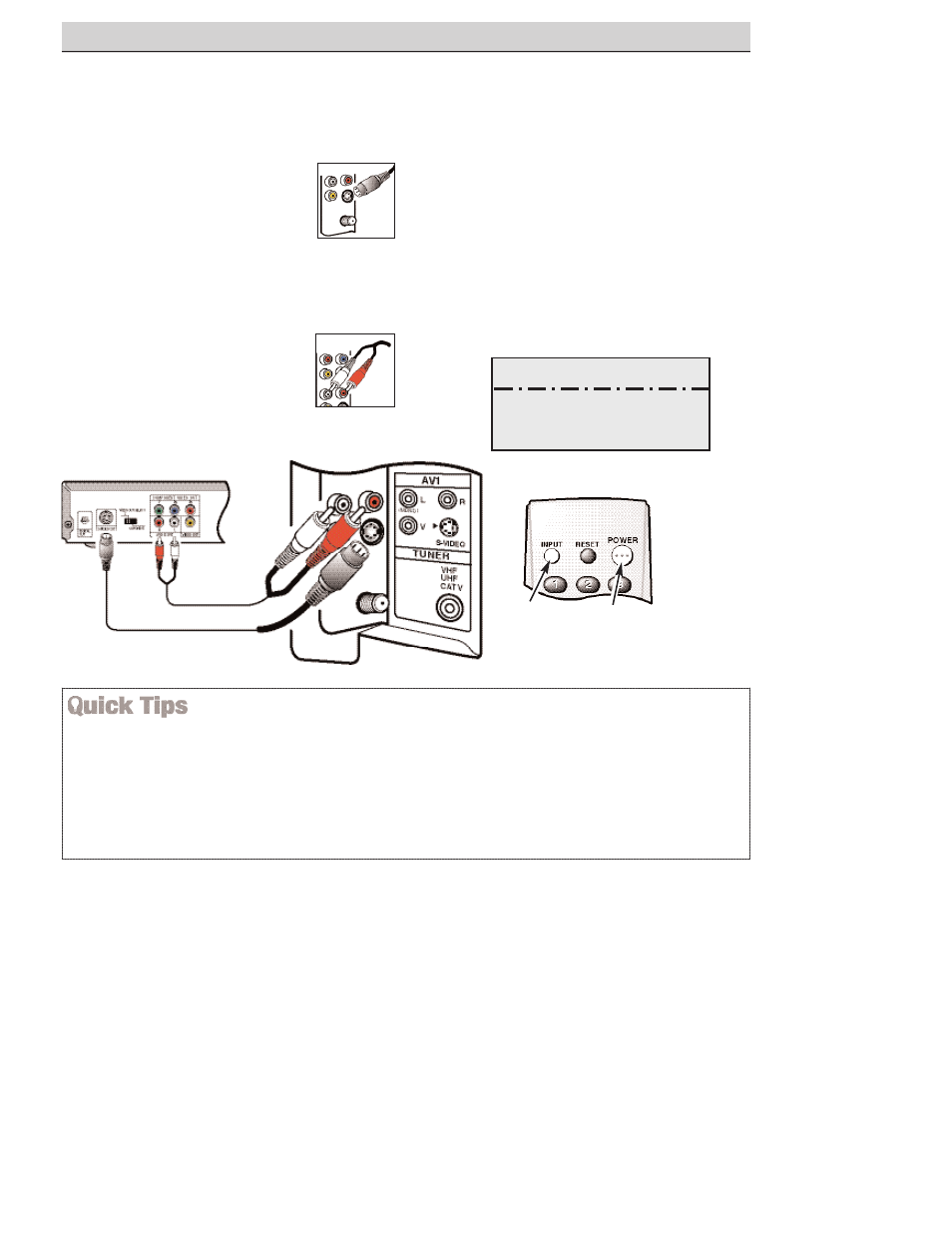

USING THE AV1 AND S-VIDEO INPUT JACKS
LCD TV BACK DVD Player or
Video Game System
What you will need for connections:
• • S-Video Cable – 1
• • Audio Cable – 1
1
Remote Control
4 3
■ Press the INPUT key after connecting cables to access
the A V Inputs. There is NO need to tune to a blank
channel.
■ Make sure all cable connectors are fully seated on
jacks.
■ Analog equipment can be connected to either AV1 or
AV2 input jacks.
■ A solid Blue screen with the word VIDEO1 or VIDEO2,
displayed means that the Video mode is selected, but
no signal is being detected at the Video jacks. Check
connections, turn on external equipment.
CONNECTING DVD PLAYER
2
