STOW G-2.9R A.C. GENERATOR — OPERATION & PARTS MANUAL — REV. #1 (10/28/04) — PAGE 31

STOW G-2.9R — WIRING DIAGRAM (S/N 5497957 AND ABOVE)

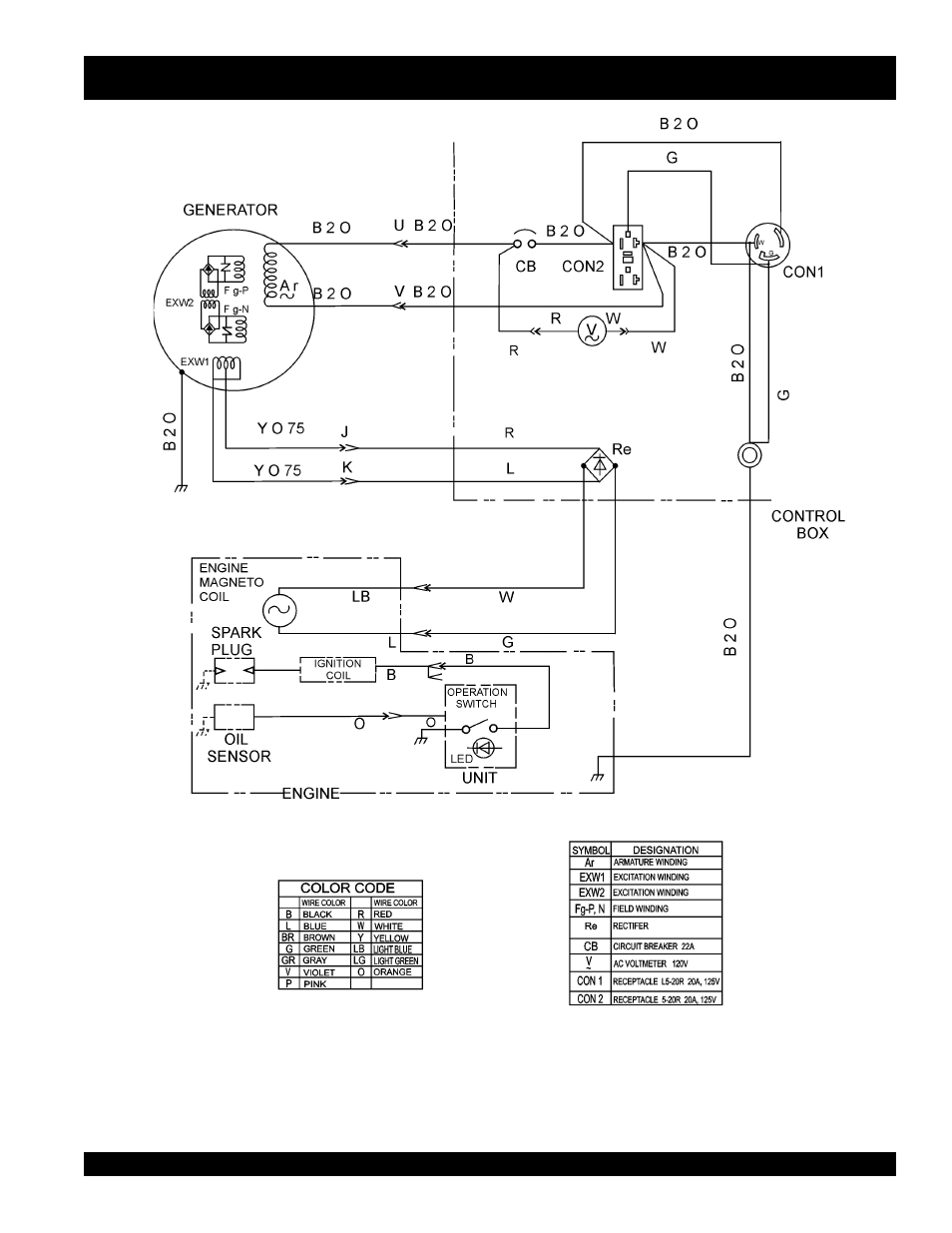

Figure 26. Generator/Engine Wiring Diagram (S/N 5497957 and Above)
