Samsung 670 - Manual (Page 58)

58
English
Other Information

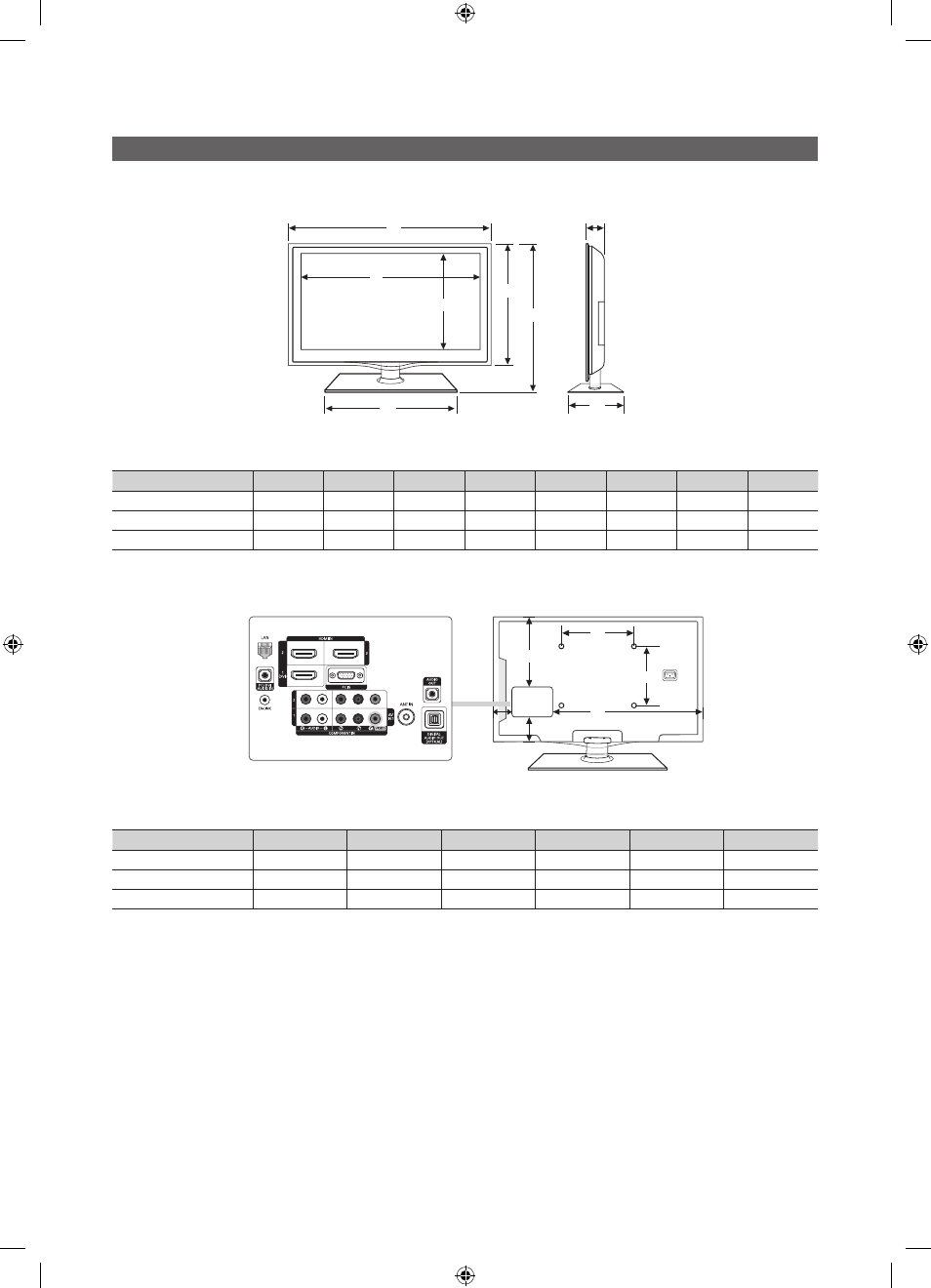

Dimensions
■ Front view / Side view`
(Unit: inches)
Model name 1 2 3 4 5 6 7 8
LN40C670 38.4 34.9 19.7 20.5 24.2 26.0 3.2 10.0
LN46C670 43.6 40.1 22.6 21.7 27.2 28.9 3.2 10.8
LN55C670 51.2 47.7 26.9 22.8 31.5 33.3 3.4 12.0
■ Jack panel detail / Rear view
(Unit: inches)
Model name 1 2 3 4 5 6
LN40C670 13.2 2.7 4.0 27.6 7.9 7.9
LN46C670 16.1 3.7 4.0 31.8 15.7 15.7
LN55C670 20.5 3.8 4.1 39.3 15.7 15.7
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
