10
English
Connections

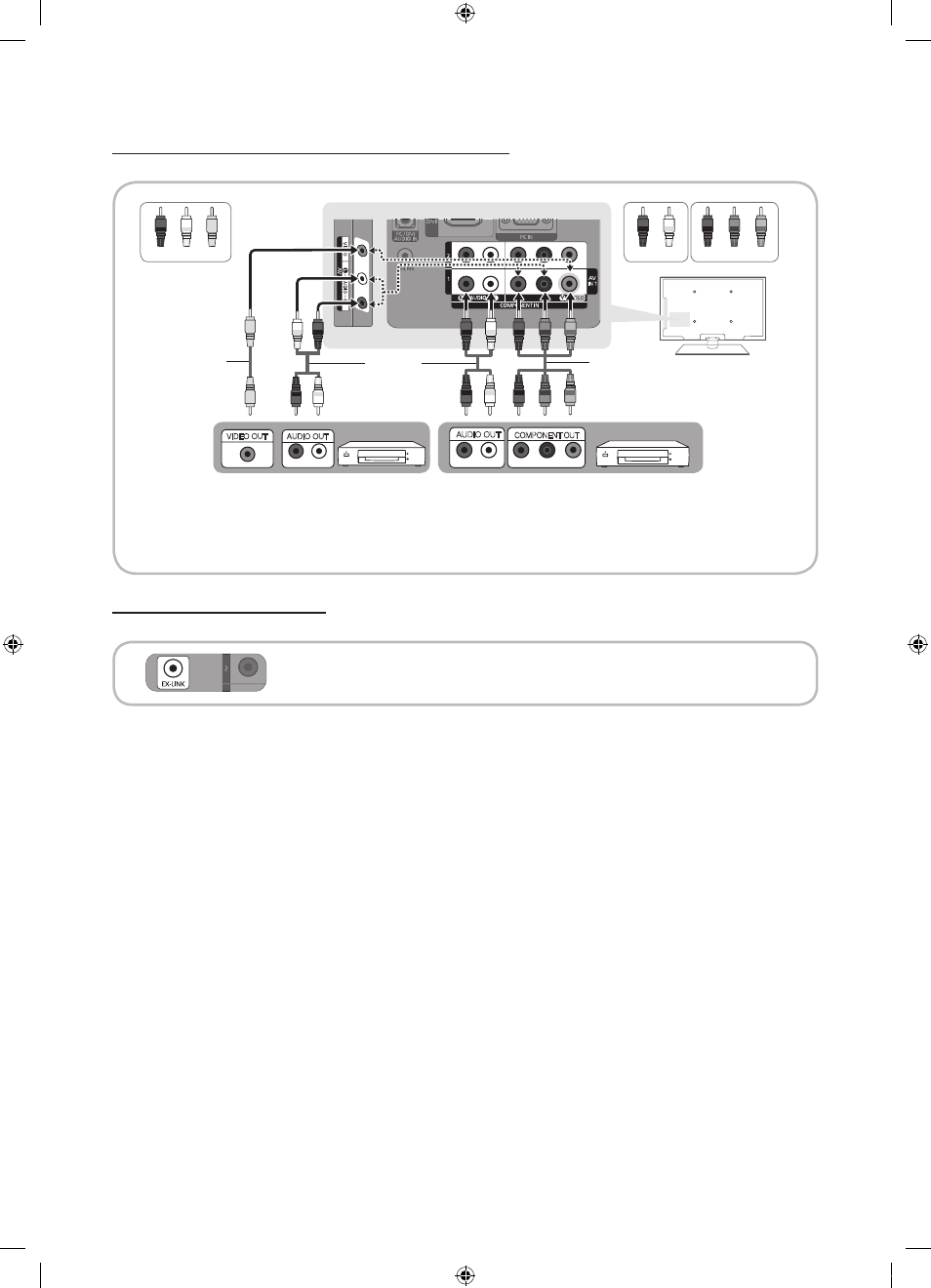

Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎
When connecting to AV IN 1 , the color of the AV IN 1 [Y/VIDEO] jack (green) will not match the video cable
(yellow).
✎
For better picture quality, the Component connection is recommended over the A/V connection.
Using an EX-Link Cable Connection
Available devices: External devices that support EX-Link.
EX-LINK : Connector for service only.
R W R G B R W Y
R W R G B
R W R B G W R
W R Y
Y
AUDIO OUT
R-AUDIO-L
VIDEO OUT
P R P B Y
COMPONENT OUT AUDIO OUT
R-AUDIO-L
Device Device
Red Red Red White Blue White Yellow Green
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
Video Cable
(Not Supplied)
