SETUP
The setup menu contains less frequently used adjustments
that may be required during installation (e.g. The display of
Test Patterns).
ORiENTATiON
Reverse the image vertically and horizontally to best fit the
installation: i.e. desktop front, ceiling front, desktop rear and
ceiling rear (Fig.19).
KEYSTONE
This adjustment compensate the image distortion caused by
tilting the projector. We recommend installing the projector on
a surface which is perpendicular to the screen and use LENS
SHIFT adjustment to centre the image. Tilt the projector and use
Keystone correction only when necessary.

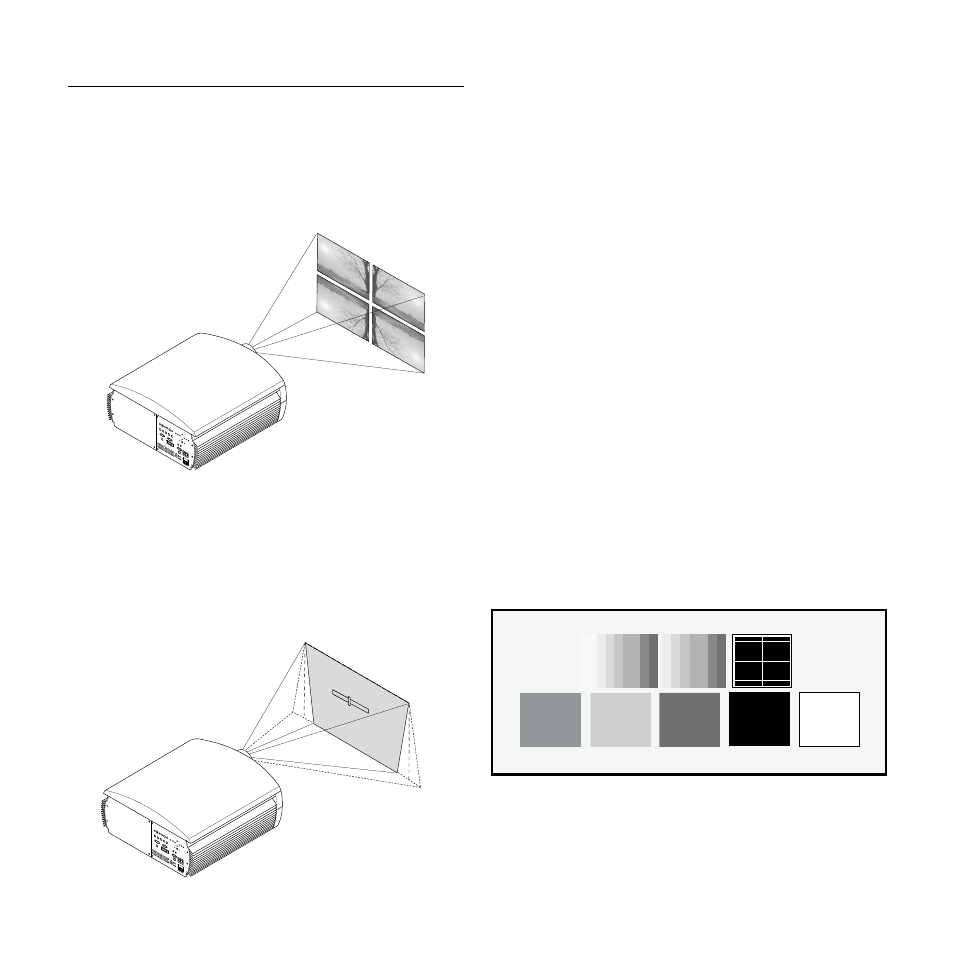

Fig.19
PROJECTiON LENS
The ZOOM adjustment impacts on the motorized zoom lens
allowing to increase or decrease the dimension of the projected
image. The FOCUS adjustment impacts on the motorized lens
focus, allowing to obtain the highest definition on the projected
image. An accurate focus setting should allow the viewer to
distinguish each pixel that create the image one from another.
In the initial phase of installation the configurable keys (F1, F)
serve as optical zoom and optical focus.
LAMP POwER
If your room is especially dark, the images from the system
HT5000 could result execessively bright. In order to enjoy won-
derful images, the LAMP POWER allows to reduce the lamp
power. In this way, the brightness of the image will be adapted
to your projection conditions and a grater life lamp will be
guaranteed.
POwER ON
If selected (AUTO), this option allows the system when the
projector is connected to the mains power supply.
In STANDBY mode the projector remain in STANDBY mode and
awaits the power-up command from the remote control or
keypad.
TEST PATTERNS
Displays a series of eight test patterns, which are useful when
installing the system and checking basic functions. Use the ▼
and ▲ keys to browse through the test patterns (Fig. 1).
iNiTiAL SETTiNgS
Reconfigures the projector to original factory settings except
Position, Orientation, Y/C Delay, Zoom and Focus (Fig. ).
Fig.0
KEYSTONE
20%
Fig.1
