O
Extends range up to 1,000 feet for these
SECO-LARM RF receivers:
— SK-910RA single-channel miniature receiver,
— SK-910R single-channel receiver,
— SK-910R2 two-channel receiver,
— SK-910R4 four-channel receiver.
O
Easily plugs into a connector on the receiver’s
motherboard - no extra wiring needed.
O
Includes 9-foot cable.
O
Power supply: +5VDC, +/- 0.1VDC
(supplied by receiver’s motherboard).
O
Current consumption: 4.0mA.
O
Sensitivity: 0.89μV @ -108dBm.
O
Frequency: 315MHz.
O
Bandwidth: 3.0MHz (-3dB).
O
Double-stick mounting tape included.
ENFORCER
®

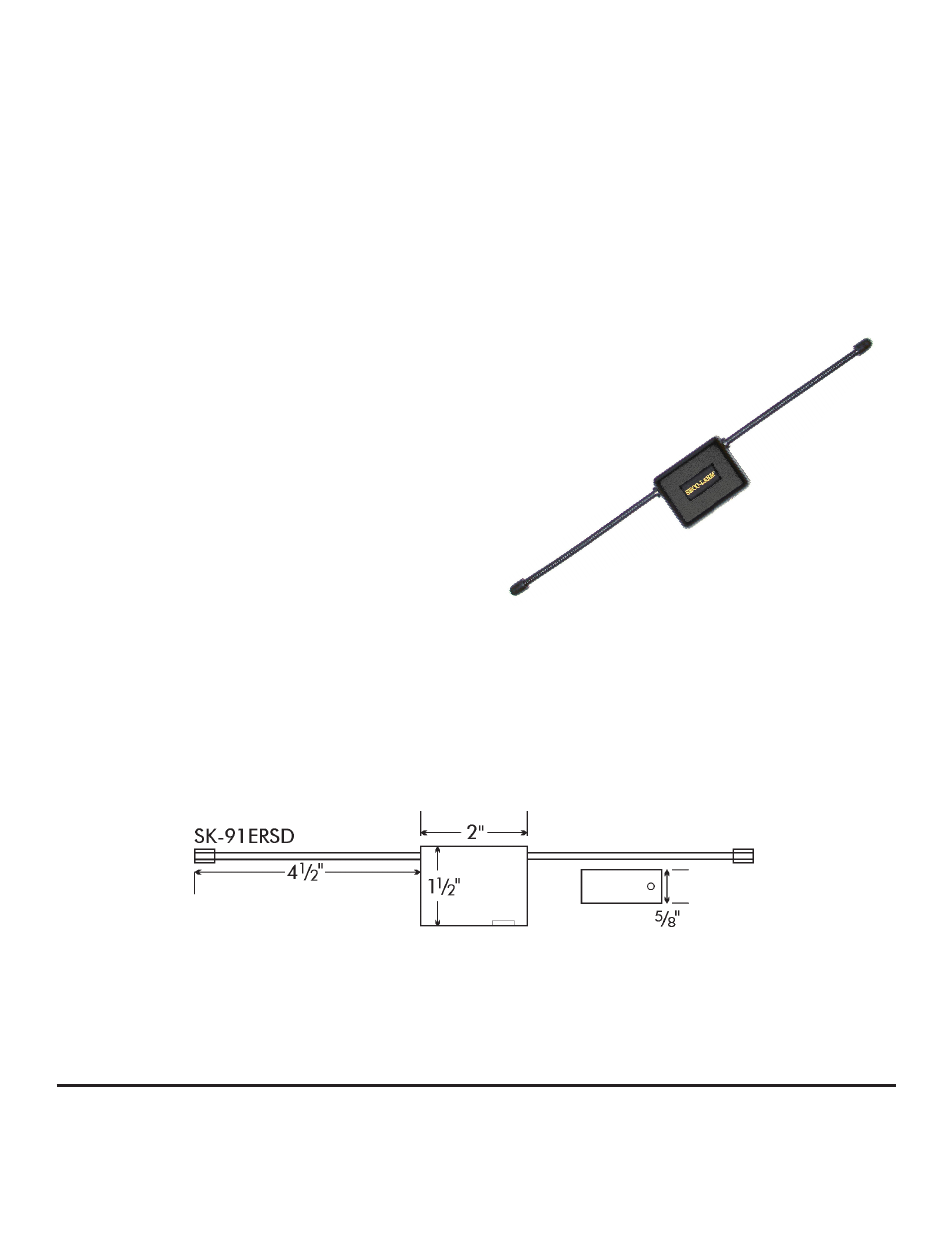

Extended Range Antenna
SK-91ERSD (Dipole — 1,000 foot range max.)
FEATURES:
SK-91ERSD Dipole
Up to 1,000 foot
range
