ST-UV24-W50Q
ST-UV16-W100Q
ST-UVDA-W100Q
ST-UVDA-W180Q
®
Technical Specifications:
Model Output Voltage Amperage VA Input Voltage
ST-UV24-W50Q
24VAC
2.08
50VA
120VAC or 240VAC 50/60Hz
ST-UV16-W100Q
16VAC
6.25
100VA
120VAC or 240VAC 50/60Hz
24VAC
4.16
100VA
120VAC or 240VAC 50/60Hz
ST-UVDA-W100Q
28VAC
3.57
100VA
120VAC or 240VAC 50/60Hz
24VAC
7.50
180VA
120VAC or 240VAC 50/60Hz
ST-UVDA-W180Q
28VAC
6.43
180VA
120VAC or 240VAC 50/60Hz
24VAC/50VA
16VAC/100VA
24/28VAC/100VA
24/28VAC/180VA
–
–
–
–
Output voltage:
ST-2406-2A
ST-2406-3A
ST-2406-5A
ST-2406-7A
ST-UV24-W50Q
ST-UV16-W100Q
ST-UVDA-W180Q
6VDC
12VAC/20VA
24VAC/50VA
16VAC/100VA
24-28VAC/180VA
ST-UVDA-W100Q
ST-UV16-W100Q
ST-UVDA-W180Q
12VDC
12VAC/40VA
24-28VAC/100VA
16VAC/100VA
24-28VAC/180VA
ST-UV24-W50Q ST-UVDA-W100Q
ST-UVDA-W180Q
24VDC
24-28VAC/210VA
24VAC/50VA
24-28VAC/100VA
24-28VAC/180VA
Transformer Selection Table:
Match the ENFORCER Open-Frame
Transformers with the ENFORCER
Series Power Supply/Chargers
1.5A continuous. 6/12/24 VDC
2.5A continuous. 6/12/24 VDC
4.0A continuous. 6/12/24 VDC
7.0A continuous. 6/12/24 VDC
ST-2406-2A
ST-2406-3A
ST-2406-5A
ST-2406-7A
–
–
–
–
Convert low-voltage AC input power
to low-voltage DC output power.
Regulated and filtered output voltage.
Short-circuit protection.
Thermal protection and compensation.
Built-in backup battery charger.
Switches to backup battery automatically
in case of power loss.
Fused protection for battery charger.
2 LEDs to indicate AC power input and
DC power output status.
Compatible with lead acid or
gel-type rechargeable battery.
Reverse polarity protected.
Copyright 2007 SECO-LARM U.S.A., Inc. All rights reserved.

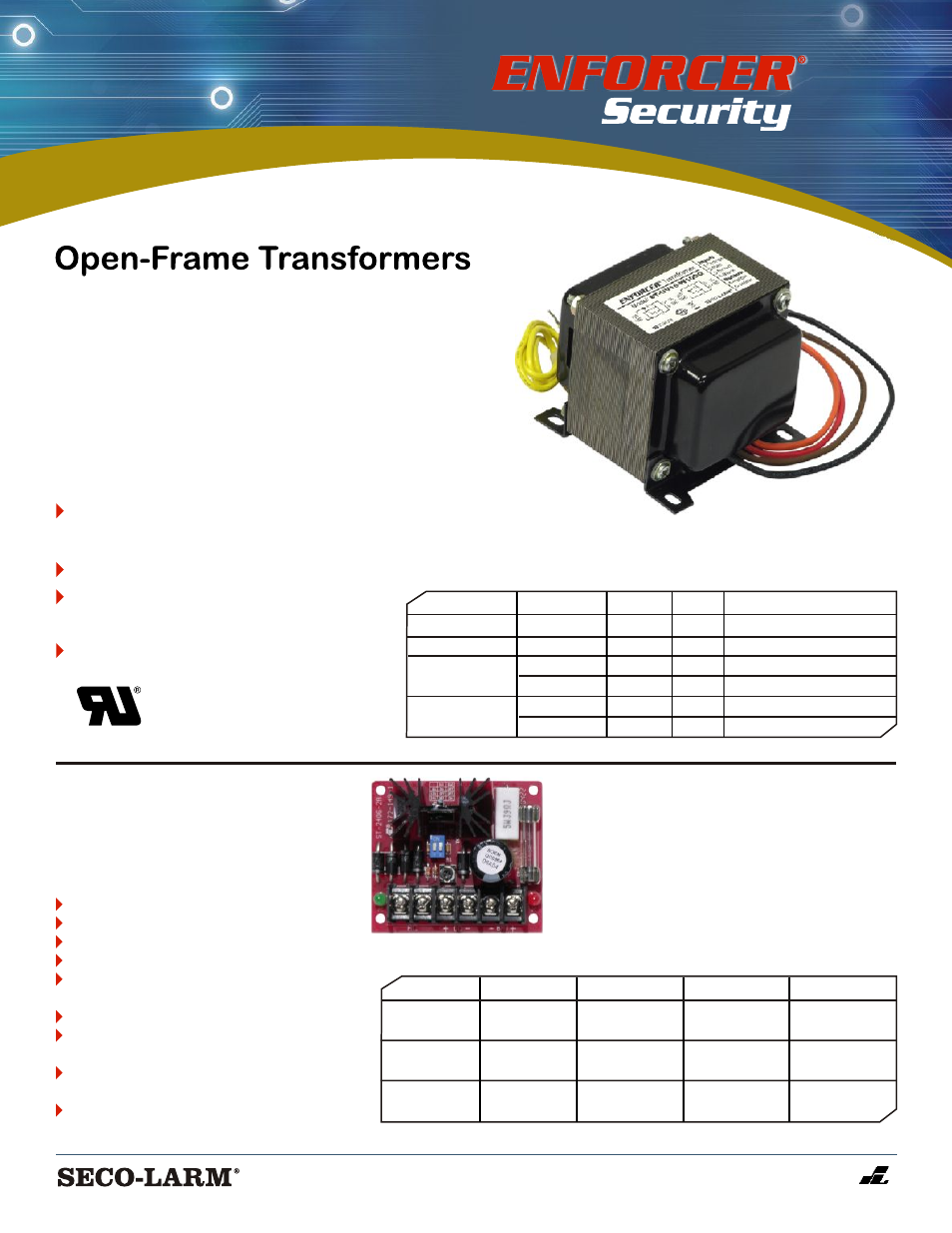

(Model: ST-UV16-W100Q shown)
Features:
Shielded windings to reduce
Electromagnetic Interference (EMI).
Selectable input voltage.
Selectable output voltage
(see chart below).
UL recognized.
