TYPICAL INSTALLATION

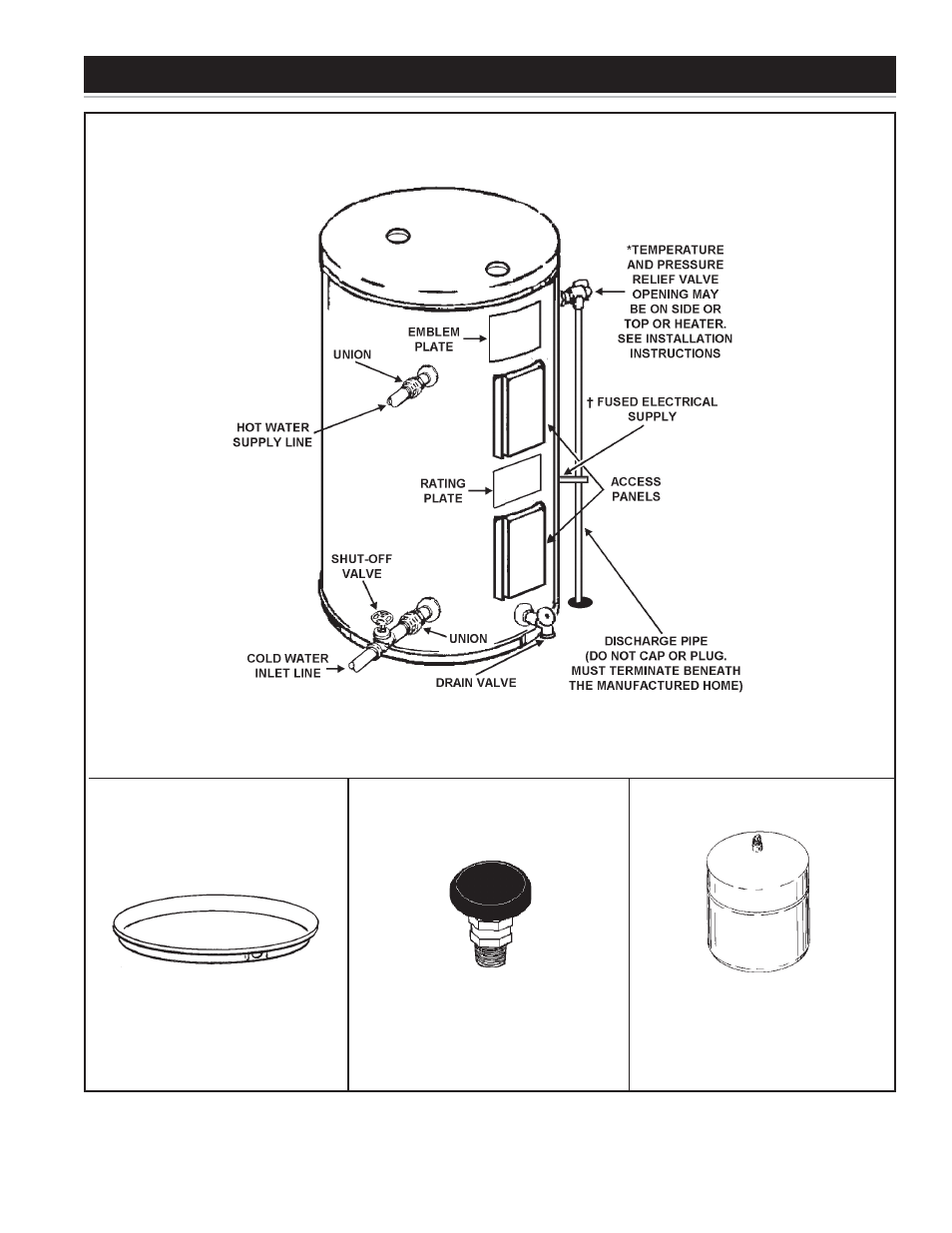

FIGURE 1.
INSTALL VACUUM RELIEF IN COLD
WATER INLET LINE AS REQUIRED
BY LOCAL CODES.
INSTALL SUITABLE DRAIN PANS
UNDER HEATERS TO PREVENT
DAMAGE DUE TO LEAKAGE. REFER
TO WATER HEATER LOCATION ON
PAGE 8.
INSTALL THERMAL EXPANSION TANK
OR DEVICE IF WATER HEATER IS
INSTALLED IN A CLOSED WATER
SYSTEM.
