WIRING
Never use water heater unless it is completely full of water. To prevent
damage to the tank and heating element, the tank must be filled with
water. Water must flow from the hot water faucet before turning on
power.
You must provide all wiring of the proper size outside of the water
heater. You must obey local codes and electric company requirements
when you install this wiring.
If you are not familiar with electric codes and practices, or if you have
any doubt in your ability to connect the wiring to this water heater,
obtain the service of a competent electrician. Contact a local electrical
contractor and/or the local electric utility.
WATER HEATERS EQUIPPED FOR ONE VOLTAGE ONLY: This water
heater is equipped for one type voltage only. Check the rating plate
near the bottom access panel for the correct voltage. DO NOT use this
water heater with any voltage other than the one shown on the model
rating plate. Failure to use the correct voltage can cause problems
which can result in DEATH, SERIOUS BODILY INJURY, OR PROPERTY
DAMAGE. If you have any questions or doubts consult your electric
company.
If wiring from your fuse box or circuit breaker box was aluminum for
your old water heater, replace it with copper wire. If you wish to reuse
the existing aluminum wire, have the connection at the water heater
made by a competent electrician. Contact a local electrical contractor
and/or the local electric utility.
1. Provide a way to easily shut off the electric power when working
on the water heater. This could be with a circuit breaker or fuse
block in the entrance box or a separate disconnect switch.
2. Install and connect a circuit directly from the main fuse or circuit
breaker box. This circuit must be the right size and have its own
fuse or circuit breaker.
3. If metal conduit is used for the grounding conductor:
A. The grounding electrode conductor shall be of copper, aluminum,
or copperclad aluminum. The material shall be of one continuous
length without a splice or joint.
B. Rigid metal conduit, intermediate metal conduit, or electrical,
metallic tubing may be used for the grounding means if conduit or
tubing is terminated in fittings approved for grounding.
C. Flexible metal conduit or flexible metallic tubing shall be permitted
for grounding if all the following conditions are met:
• The length in any ground return path does not exceed 6 feet.
• The circuit conductors contained therein are protected by
overcurrent devices rated at 20 amperes or less.
• The conduit or tubing is terminated in fittings approved for
grounding.
For complete grounding details and all allowable exceptions, refer to
the current edition of the National Electrical Code NFPA 70.
4. A standard 1/2” conduit opening has been made in the water heater
junction box for the conduit connections.
5. Use wire nuts and connect the power supply wiring to the wires
inside the water heater’s junction box.
6. The water heater must be electrically “grounded” by the installer. A
green ground screw has been provided in the water heater’s
junction box. Connect ground wire to this location.
7. Replace the wiring junction cover using the screws provided.

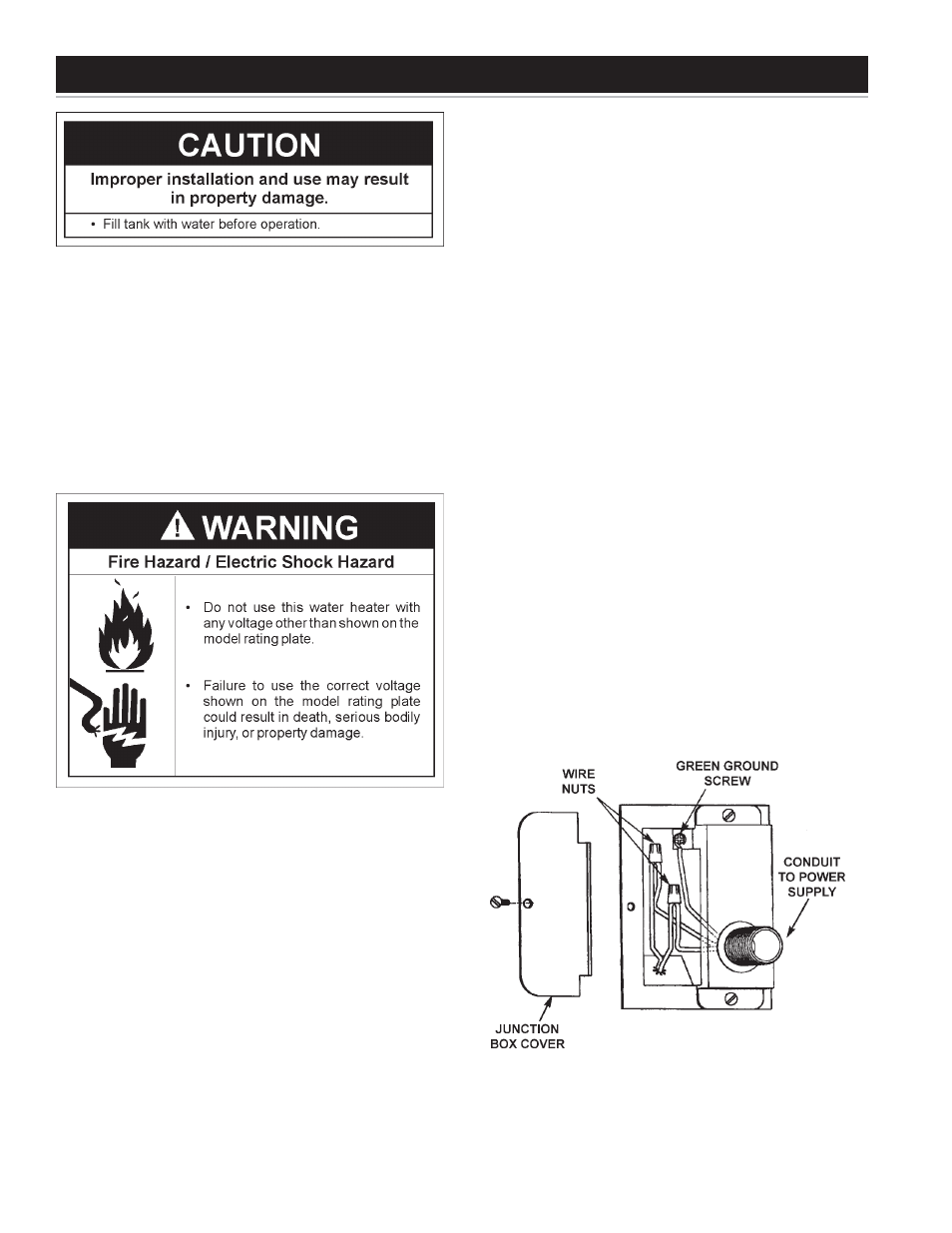

FIGURE 8.
