State SCI 30 DHMS - Manual (Page 21)

21
REPAIR PARTS LIST
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• MODEL NUMBER
• SERIAL NUMBER
• VOLTAGE AND ELEMENT WATTAGE
• PART DESCRIPTION
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
Now that you have purchased this water heater, should a
need ever exist for repair parts or service, simply contact the
company it was purchased from or the manufacturer listed on
the rating plate on the water heater.
Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be
shipped at prevailing prices and you will be billed accordingly.
The model number of your Water Heater will be found on the
rating plate located above or adjacent to outer door.

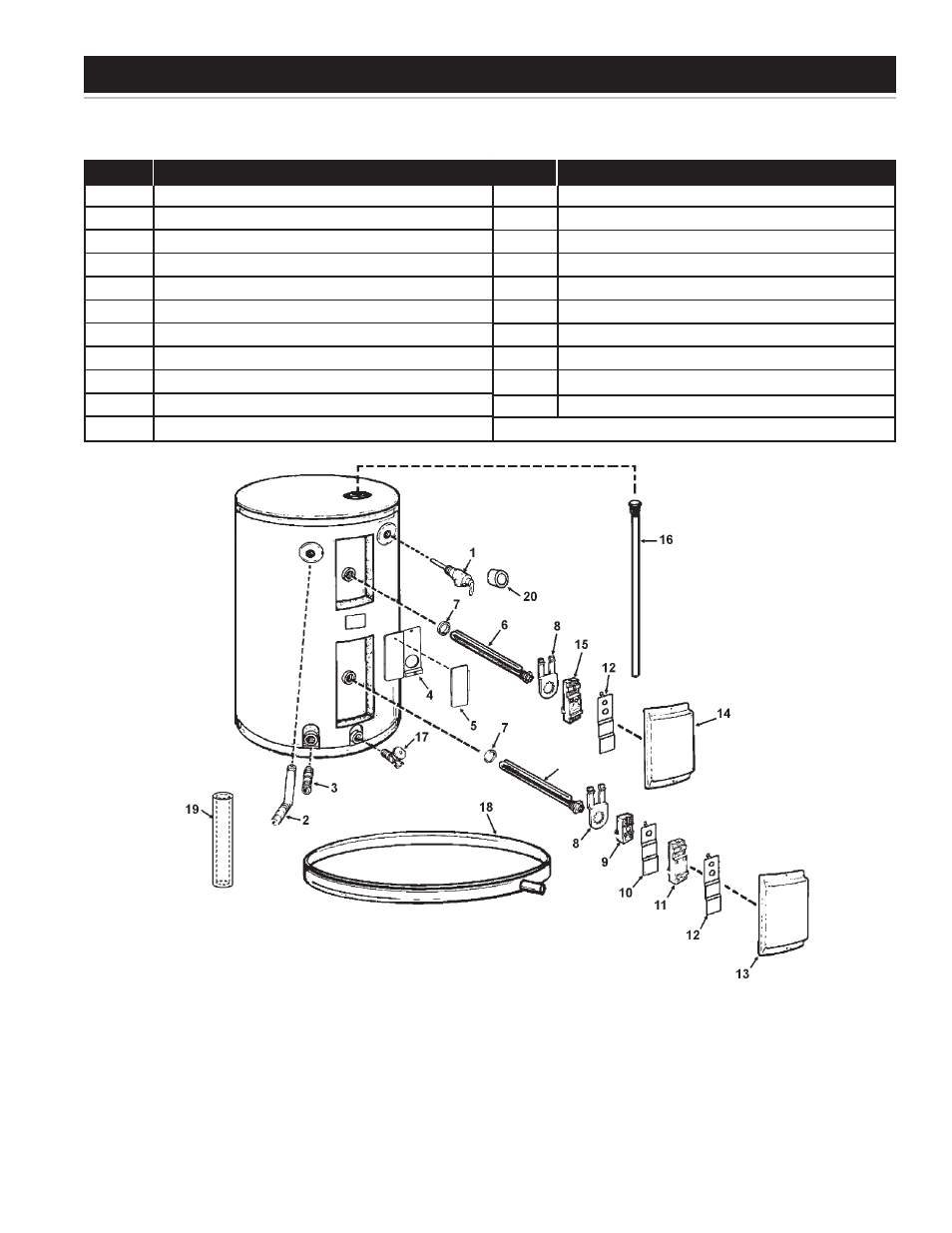

Key No. Part Description
1 Temperature-Pressure Relief Valve
2 Outlet Nipple Assembly
3 Inlet Nipple
4 Conduit Bracket
5 Junction Box Cover
6 Upper and Lower Element
7 Element Gasket
8 Thermostat Bracket (ea.)
9 Lower Thermostat 2 Pole
10 Terminal Cover
11 Lower Thermostat w/Hi Limit 4 Pole (Used in place of 9)
* Not Applicable to
19.9 Gallon Models.
** Not Illustrated.
MANUFACTURED (MOBILE) HOME ELECTRIC MODELS
Key No. Part Description
12 Terminal Cover (Used in place of 10)
13 Lower Outer Door
14 Upper Outer Door
15 Upper Thermostat w/Hi/Limit
16 Anode Rod
17 Drain Valve (30 Gallon Model Only)
18 Base Pan w/Side Drain
19 Pipe Insulation*
20 T & P Insulation*
** Instruction Manual
