Chapter 2 Fitting and Connecting Related Equipment
26
Chapter 2 Fitting and Connecting Related Equipment

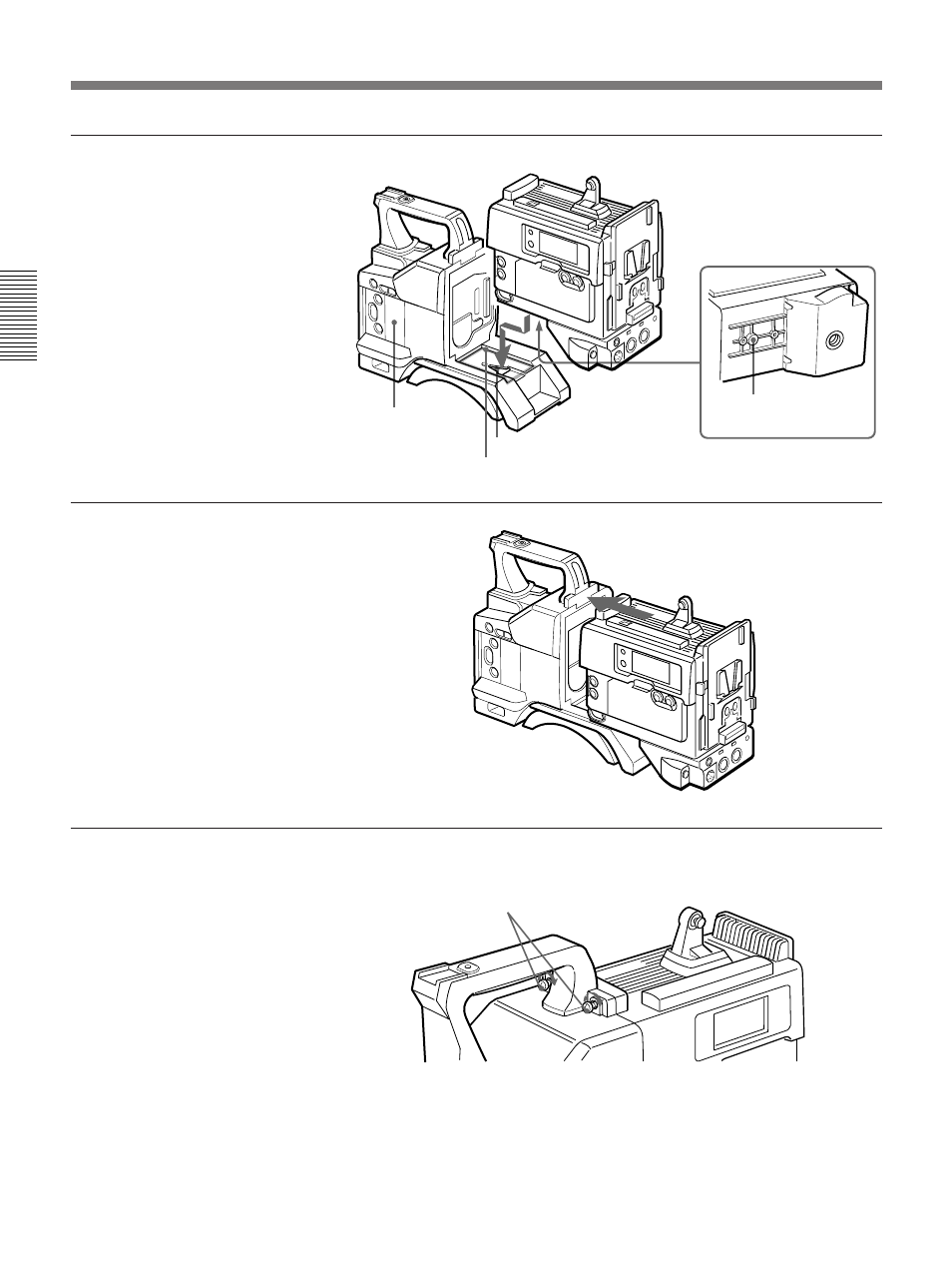

Mounting on Video Camera
2
Fit the projection on the
bottom of the DSR-1/1P into
the slot on the camera.
3
Slide the DSR-1/1P along the
groove on the camera, and
press firmly until fixed.
4
Tighten the two screws (M4
×
12) in the figure.
M4
×
12 screws
Groove
Slot
Projection
Camera
