Speaker SetUp (Continued)
Setting the test tone
Use the test tone to check the speaker connection status or level.
Press
SETUP/MENU button.

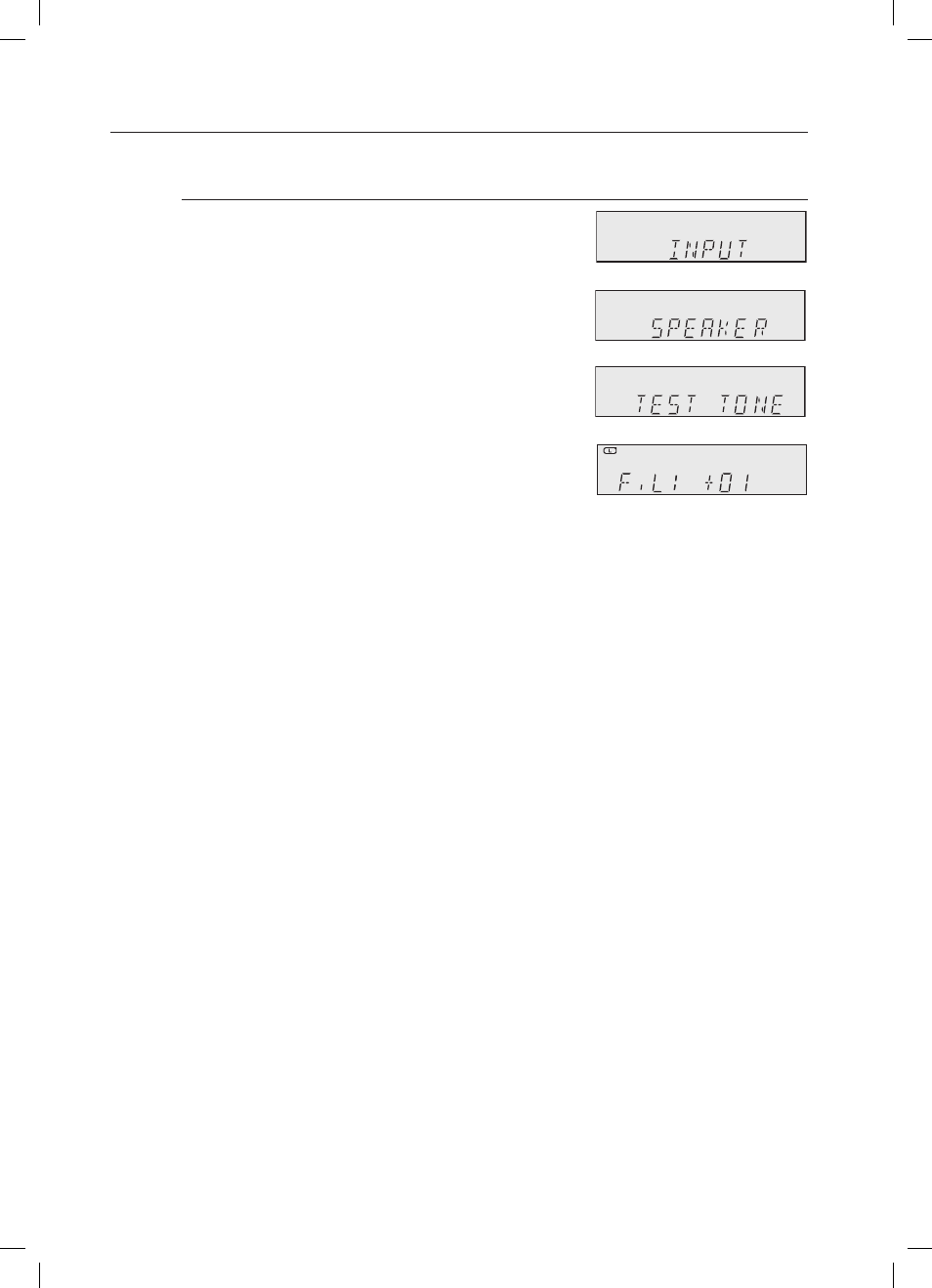

“INPUT” appears on the display and goes into Setup Mode.
Press ▲▼ button to select "SPEAKER", and then press the
ENTER.
Press ▲▼ button to select "TEST TONE", and then press the
ENTER or ▶ button.
Press ▲▼ button to select the option you want, and then
press the
ENTER or ▶ button.
aUtO : Test signal will be automatically output as follows;
F.L CEN S.W F.R S.R SBR SBL S.L.
- During test tone output, press ▲▼ button to adjust the
speaker output level from -10 to +10 dB
by 1 step.
manU (MANUAL): Enables you to adjust the output level of the speaker manually.
1) Press ◀▶ button to select the speaker you want.
Each time you press ◀▶ button, F.L CEN S.W F.R S.R SBR SBL S.L will
be selected in turn.
2) Press ▲▼ button to set the test tone as you want.
You can adjust the speaker output level from -10 to +10dB by 1 step.
The sound gets quieter at -10dB and louder at +10dB.
test tone Output
• F.L (front left) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB
• CEN (center) : -10 ~ +10dB
• SBR (surround back right) : -10 ~ +10dB
• S.W (subwoofer) : -10 ~ +10dB
• SBL (surround back left) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB
• S L (surround left) : -10 ~ +10dB
- to stop test tone -
Press
SETUP/MENU or ExiT button once time.
“SETUP OFF” appears on the display and test tone stops.
