Page 52
52
1
2
3
TO GROUND
(ENGINE BASE)
TO CONTROL
PANEL
HARNESS
(GREEN WIRE)
TO NEG.
BATTERY
TERMINAL
TO POS.
BATTERY
TERMINAL
TO CONTROL
PANEL
HARNESS
(BLACK WIRE)
TO STARTER
SOLENOID
TO CONSOLE
HARNESS
TO R.H. LIGHT
TO PARK
BRAKE
SWITCH
TO SEAT
SWITCH
TO L.H. LIGHT
TO PTO
TO ENGINE
TO
BATTERY
TO PTO SWITCH
TO AMP METER
TO BUZZER
TO IGNITION
SWITCH
TO HOUR METER
TO LIGHT SWITCH
FUSES
TO STARTER
SOLENOID
TO FRONT
HARNESS
4

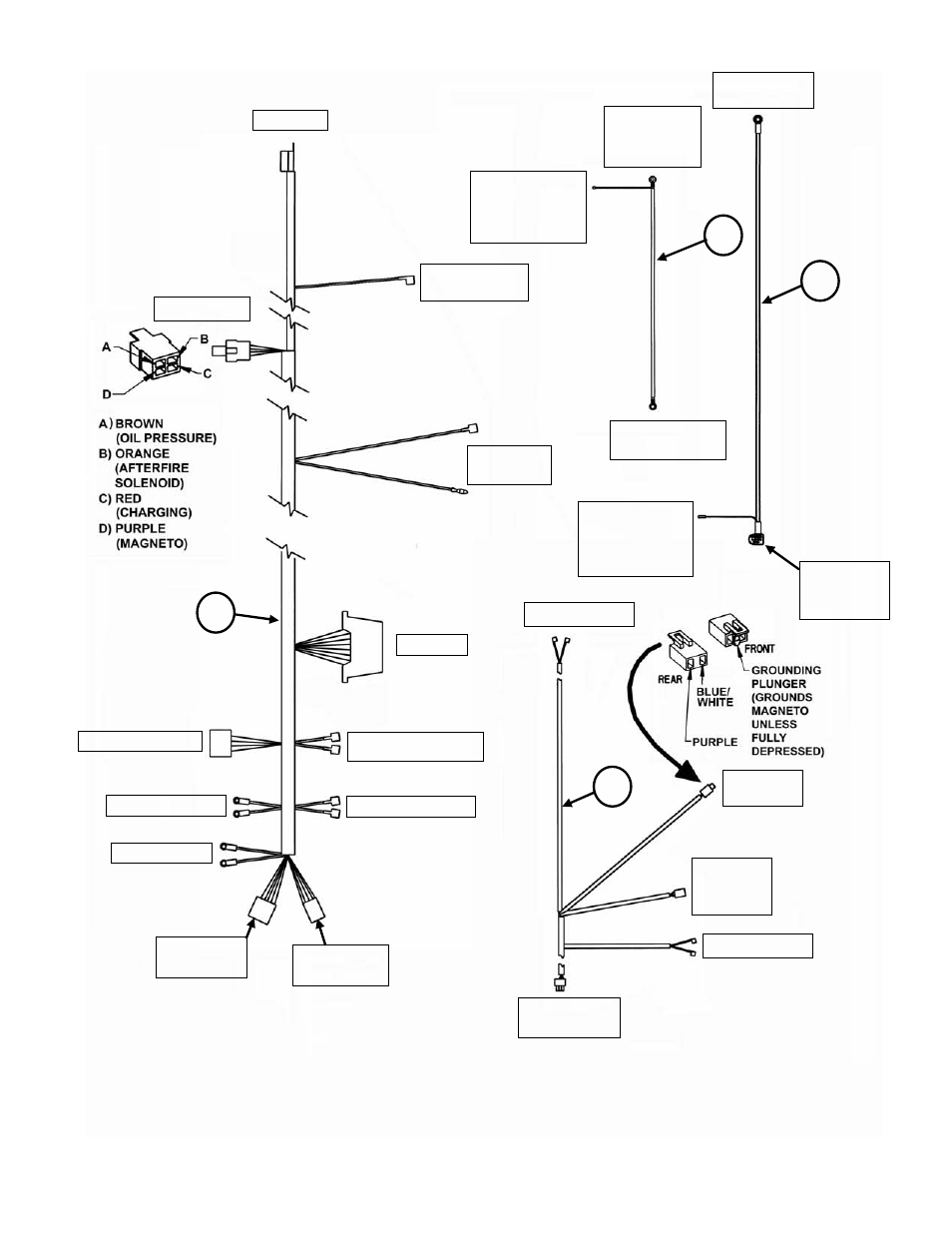

WIRING HARNESS
(Non-MZM Models)
ITEM
PART
NO.
DESCRIPTION
1
4-4912
HARNESS, Control Panel
2
4-4913
HARNESS,
Front
3
3-5607
CABLE, Battery- Positive (6 Ga., 47”)
4
3-5609
CABLE, Battery- Negative (6 Ga., 38”)
MANUAL No. 06110
MID MOUNT Z-RIDER
