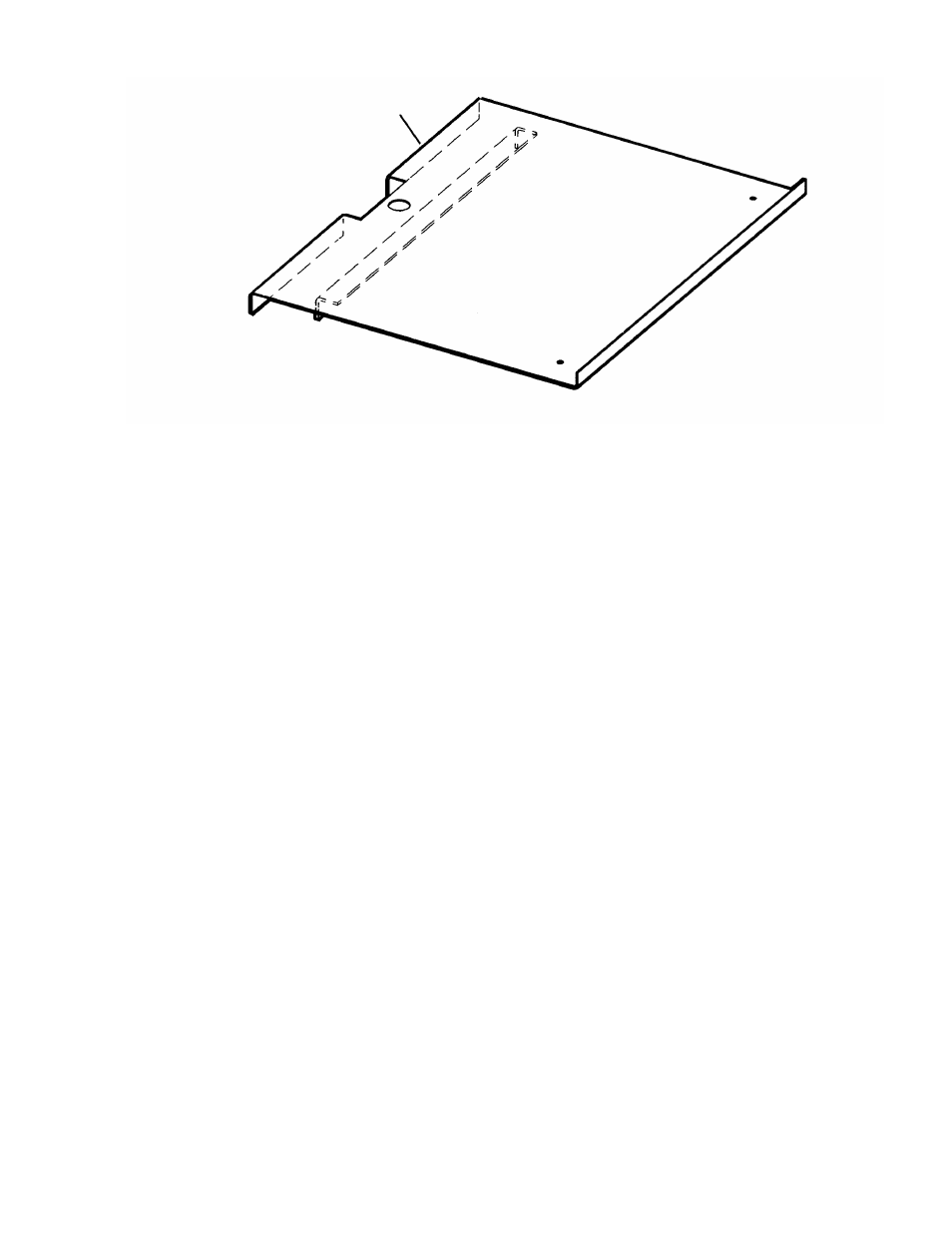

FOOTREST ASSEMBLY
ITEM
PART
NO.
DESCRIPTION
1A
4-6727
BRACKET, Floor Pan
1B
5-8362
WELDMENT, Floor Pan (Model ZMT2500KH only!)
2
4-3843
PAD Left Hand Friction
3
9-1318
SCREW, 5/16-18 x 3/4” Hex Head Cap
4
9-1296
WASHER, 11/32” Flat Lock
5
4-3795
BRACKET, Left Hand Footrest
6
9-1298
NUT, 5/16-18 Hex Nylon Insert (2)
7
4-3800
BRACE, Left Hand Footrest
8
4-6730
BRACKET,
Footrest
9
4-4867
PAD, Floor Pan Trim (2)
10
9-1508
BOLT, 5/16-18 x 3/4” Carriage Short Neck Grade 5
11
4-4905
PAD, Right Hand Front Friction
12
9-1541
SCREW, 5/16-18 x 3/4” Hex Self Tapping (6)
13
4-3842
PAD, Right Hand Rear Friction
14
4-3794
BRACKET, Footrest (Right Hand)
MID MOUNT Z-RIDER
MANUAL No. 06110
1B
