Rear, Syncmaster 323t – Samsung 323T User Manual
Page 12

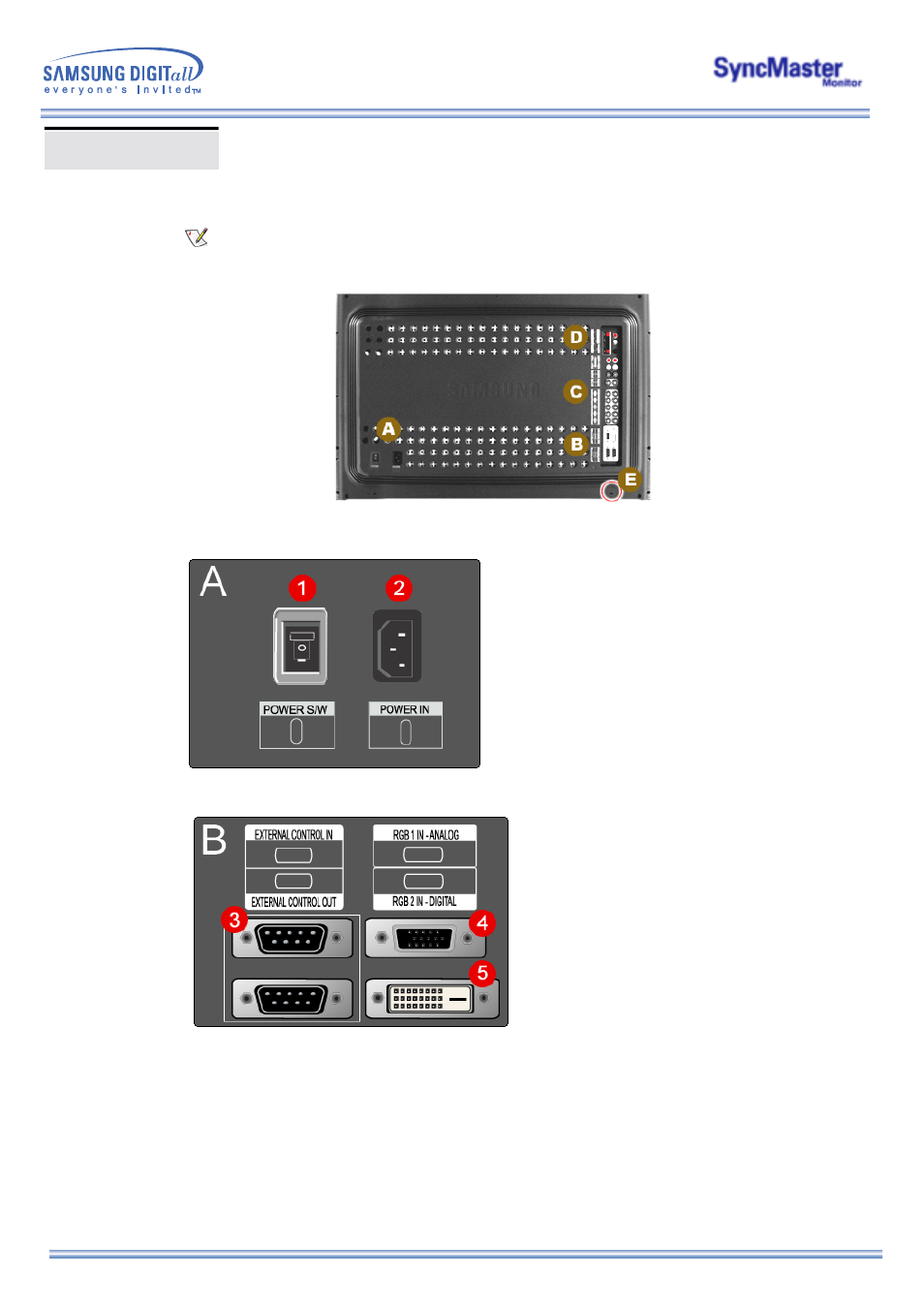

For detailed information concerning cable connections, refer to
Connecting Cables
under Setup.
The monitor's rear configuration may vary slightly depending on the monitor model.
1. Power On/Off Switch
2.
Power port
3.
EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port
4.
PC Video Connection Terminal
: Using D-Sub Cable (15 pin D-Sub) - RGB 1 mode (Analog PC)
5.
PC Video Connection Terminal
: Using DVI Cable (DVI-D to DVI-D) - RGB 2 mode (Digital PC)
Rear
SyncMaster 323T
