Instructions for the user

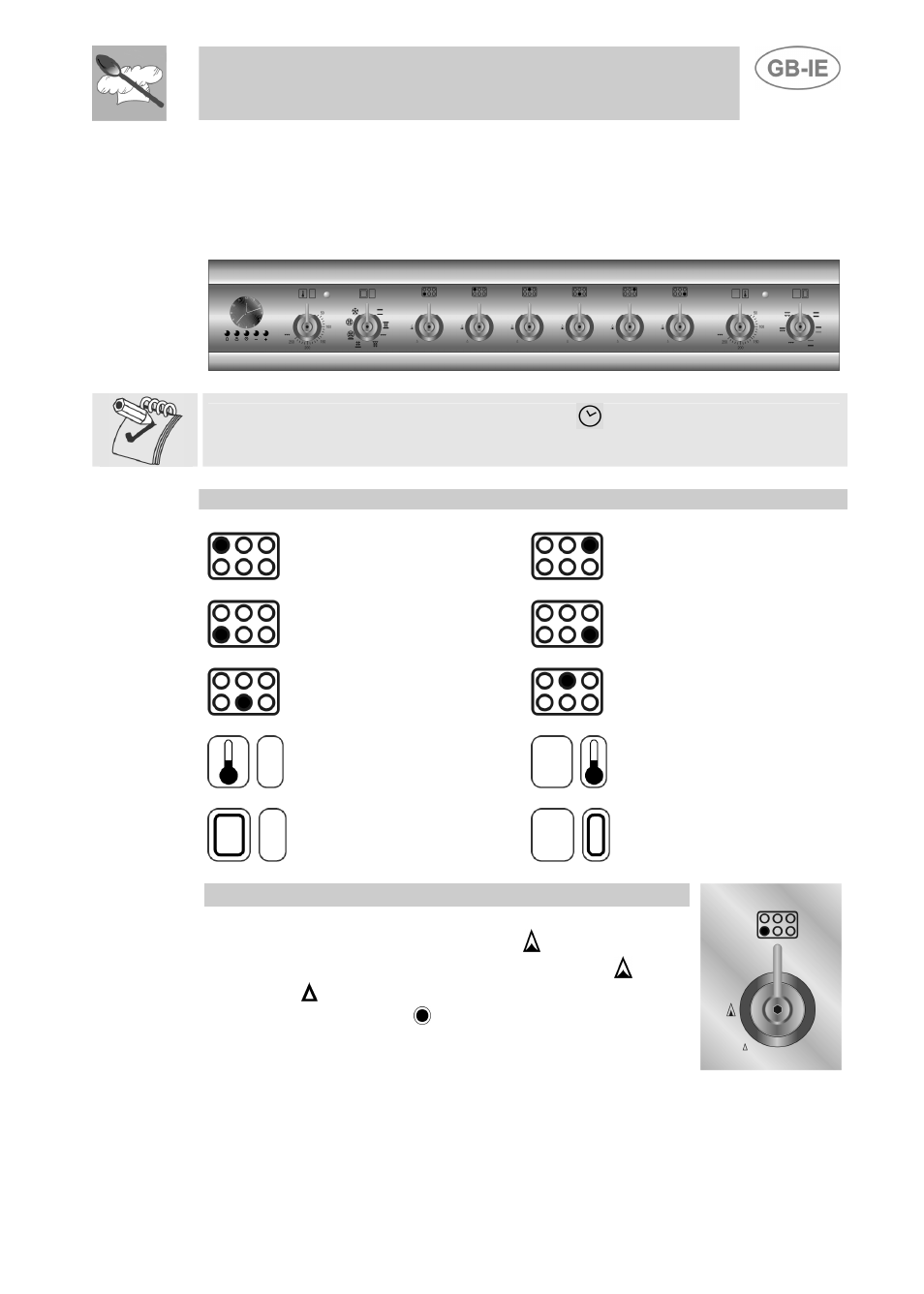

DESCRIPTION OF CONTROLS

5.1

Front control panel

All the cooker controls and commands are on the front panel.

The user has only to press the central key

for 1 - 2 seconds to enable

use of the oven on first use or after a power blackout.

DESCRIPTION OF SYMBOLS

BACK LEFT BURNER

BACK RIGHT BURNER

FRONT LEFT BURNER

FRONT RIGHT BURNER

FRONT CENTRAL
BURNER

BACK CENTRAL
BURNER

MAIN OVEN
THERMOSTAT

AUXILIARY OVEN
THERMOSTAT

MAIN OVEN
FUNCTIONS

AUXILIARY OVEN
FUNCTIONS

COOKING HOB BURNER COMMAND KNOB

The flame is lit by pressing the knob and turning it
anticlockwise to maximum flame . To adjust the
flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is
returned to the position .
