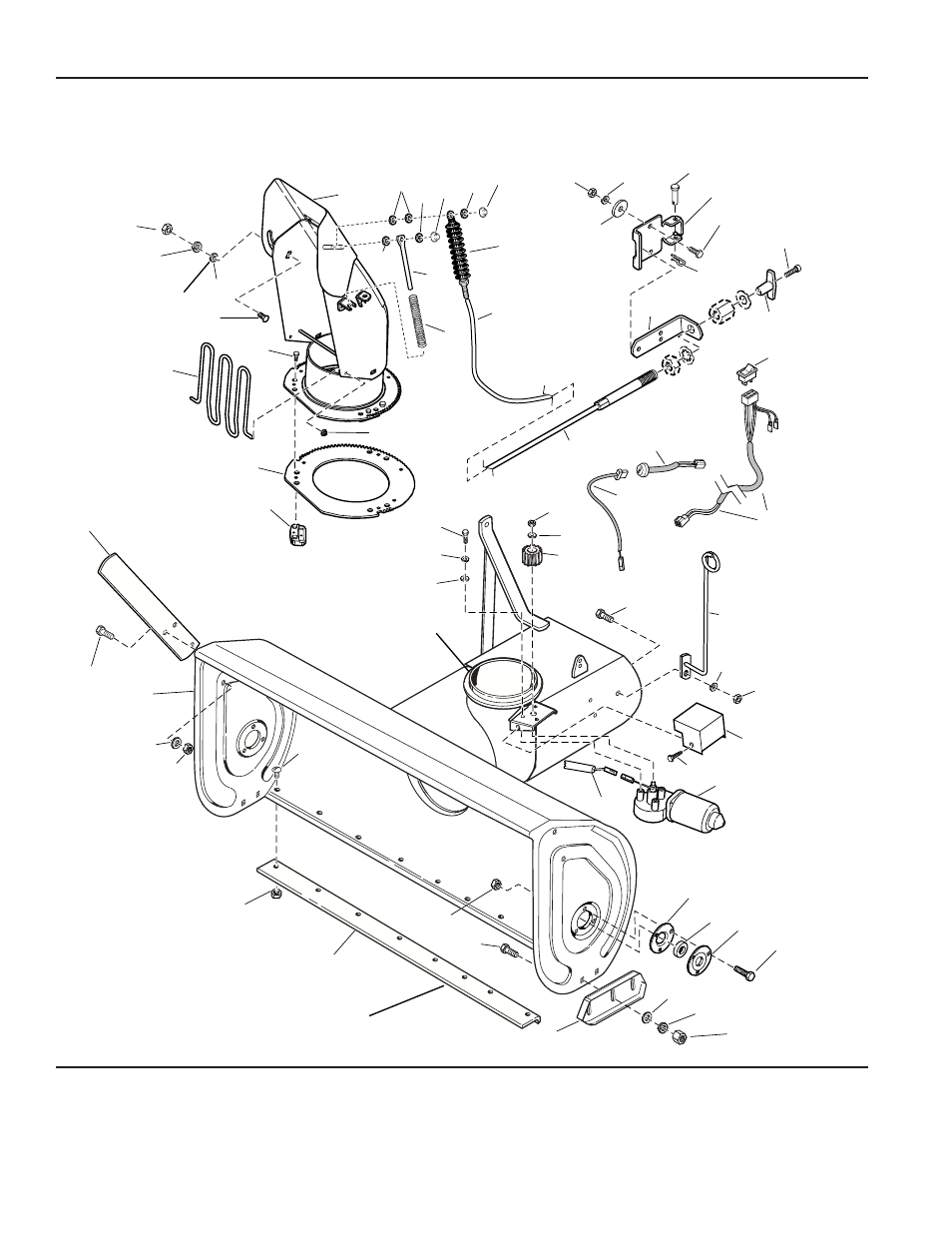

Auger Housing Group - 42”
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986170
Coat top and bottom of
chute ring with grease.
Scraper blade should
be on inside of housing.
Plastic washer
(Ref. 3) goes
between chute
and deflector.
3
5
6
7
9
10
11
12
13
14
42
43
44
45
46
47
48
50
51
3
37
49
36
28
27
8
10
8
9
52
4
41
2
1
10
24
25
40
32
20
16
33
9
34
18
15 16
17
19
20
xx 18
22
23
21
26
30
31
14
32
35
3
37
36
38
39
51
29
The above parts group applies to the following Mfg. Nos.:
1694238 Two-Stage Snowthrower, 42”
