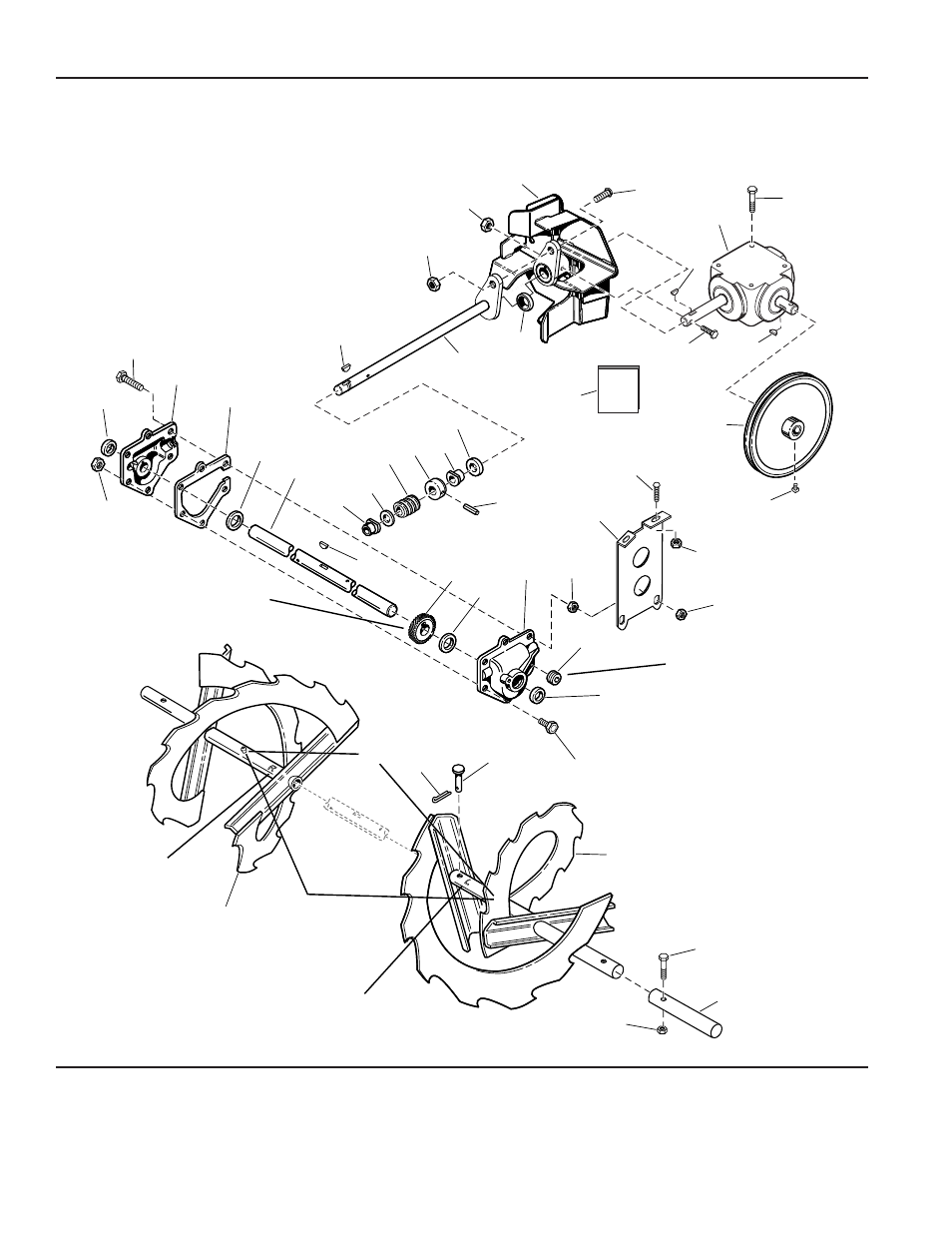

Auger Drive Group - 42”
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986154
Marked side of worm
gear must contact against
left thrust washer to assure
proper gear mesh.
Auger assembly
stamped "R".
Auger assembly
stamped "L".
Apply grease until
it appears at ends
of auger assembly
(2 places).
Torque to 9 - 11 ft-lbs.
Seal
Kit
14
15 16
19
13
17
18
32
23
40
39
35
38
37
36
34
33
31
30
27
26
1
15
29
32
35
29 28
23
23
20
21
22
41
25
24
3
2
3
4
5
12
8
7
6
8 9
10
11
42
The above parts group applies to the following Mfg. Nos.:
1694238 Two-Stage Snowthrower, 42”
