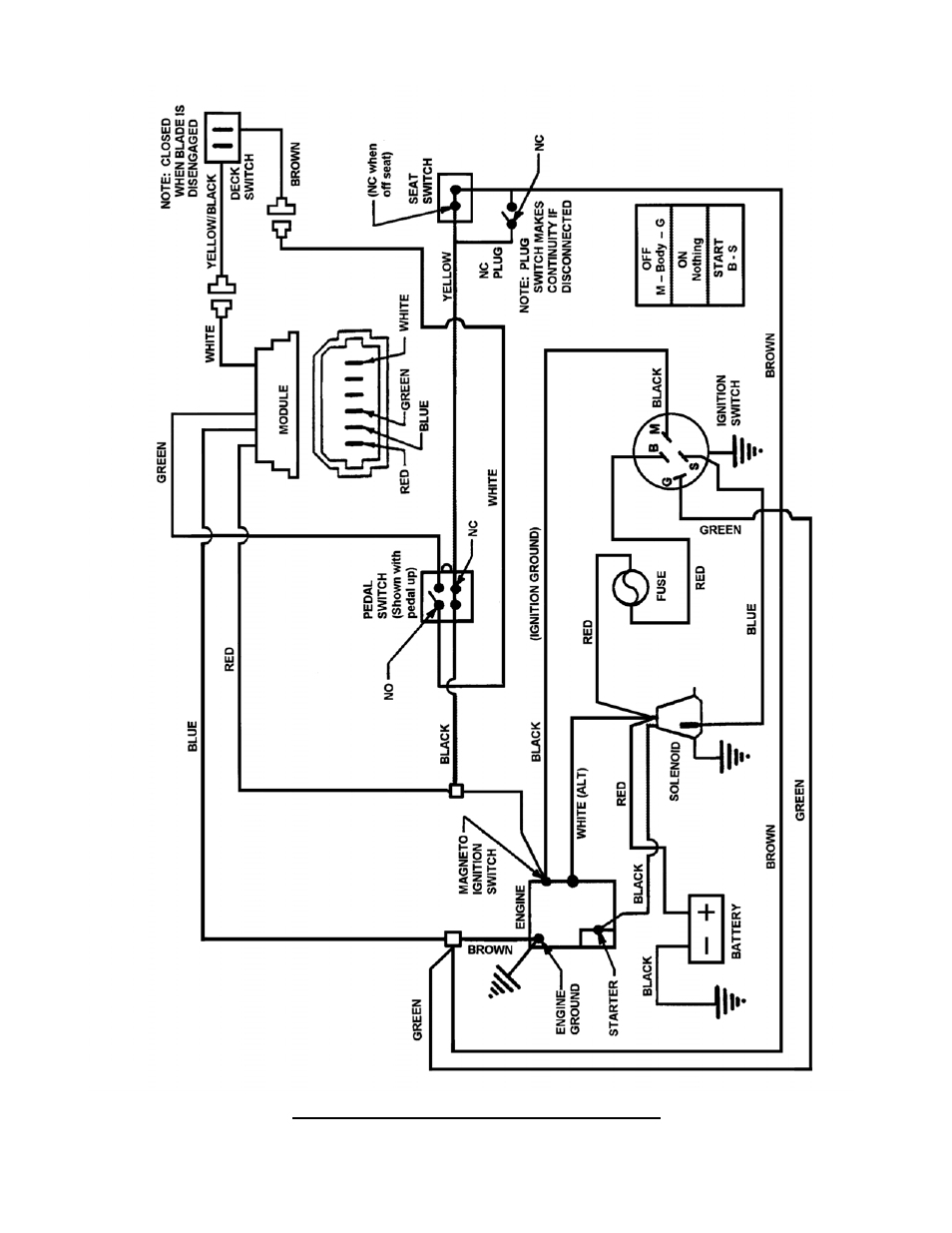

WIRING SCHEMATIC

WIRING SCHEMATIC FOR 16 HP BRIGGS ENGINE

MANUAL No. 06130

42” MODEL R. E. RIDER SERIES 22
