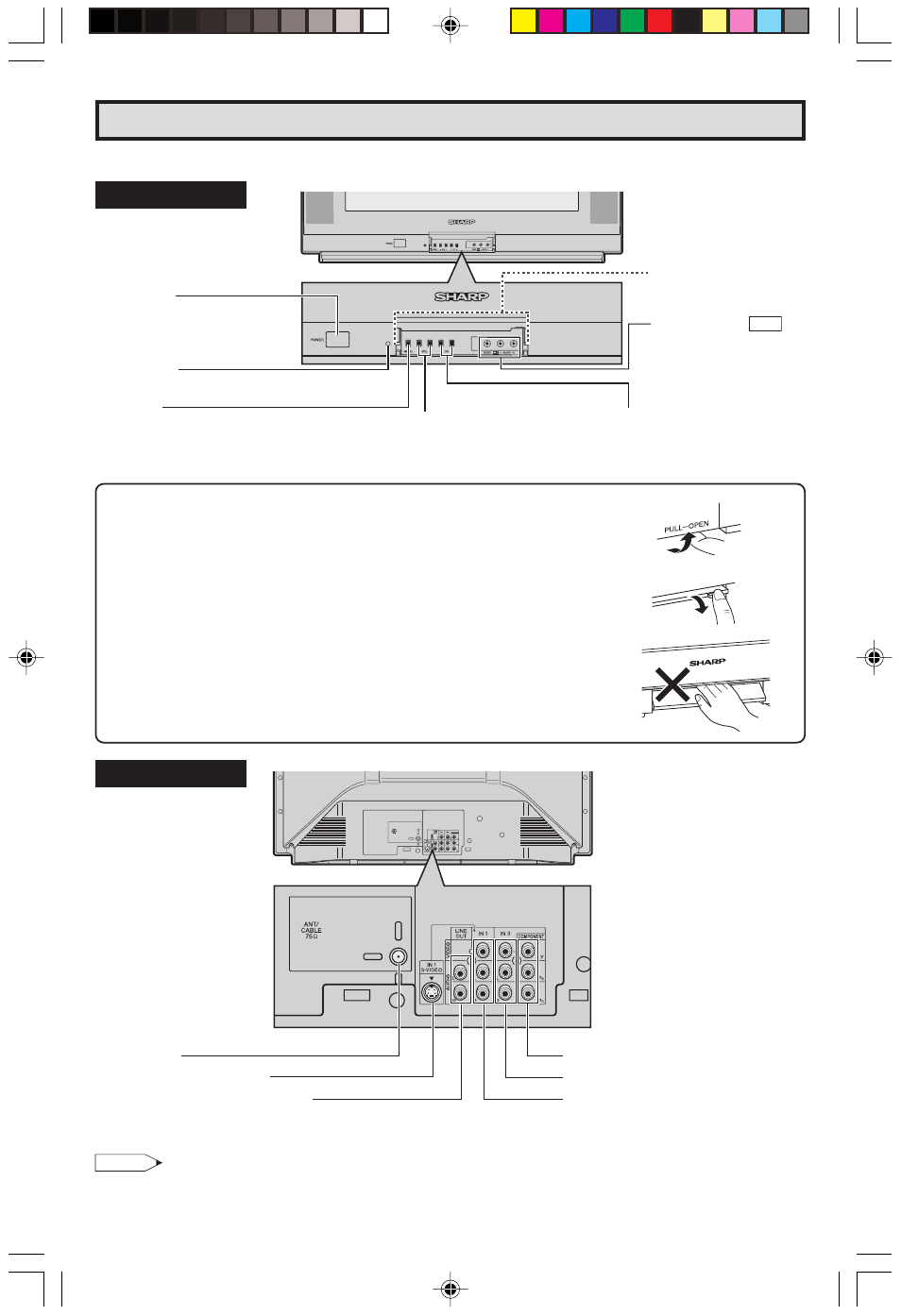

Quick Reference Control Operation
•
Part Names
Front Panel
POWER
Press
→ On.
Press again → Off.
REMOTE CONTROL
SENSOR
MENU
Press
→ Accesses MAIN MENU.
Press again
→ Exits MAIN MENU.
VOLUME UP/DOWN
(k) Increases sound.
(l) Decreases sound. CHANNEL UP/DOWN
(a) Selects next higher channel.
(s) Selects next lower channel.
INSIDE DOOR
VIDEO/AUDIO IN 2
TERMINALS
To open the door
Using the projection located under the “PULL-OPEN” indication,
pull and lift the door open.
To close the door
Using the projection, lower the door until closed.
Caution:
• When opening or closing the door, do not insert your fingers into
the gap between the door and front panel. This may result in an
injury.
Rear Panel
ANTENNA/CABLE INPUT
TERMINAL
IN 1 S-VIDEO TERMINAL
LINE OUT (AUDIO) TERMINALS
COMPONENT (VIDEO) TERMINALS
IN 3 (VIDEO/AUDIO) TERMINALS
IN 1 (VIDEO/AUDIO) TERMINALS
Note:
• The TV set and remote control illustrations and the on-screen displays in this manual may differ from
their actual appearance.
