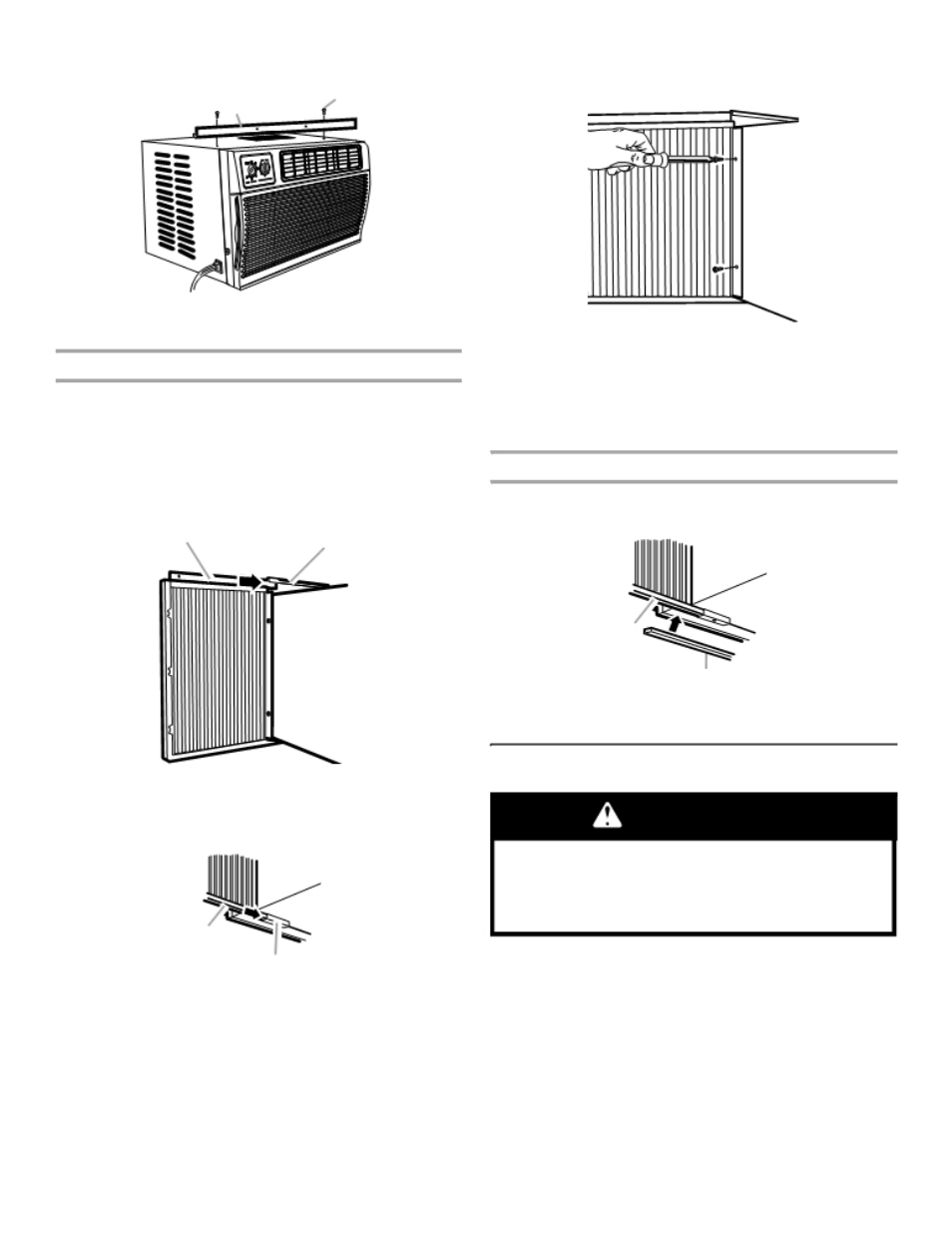

Soleus Air KC-25U - Manual (Page 6)

NOTE: Your model may differ from the one shown.
B
A
A. Top channel
B. #8 x 3/8" pan-head screw
Install side curtains
NOTE: Attach curtains to unit before placing unit in window.
1. Remove unit from packaging.
2. Locate provided bag of screws.
3. Insert top and then bottom of right-hand curtain housing in
top and bottom curtain channels on air conditioner.
Top view
A B
A. Curtain housing
B. Curtain top channel on air conditioner
Bottom view
A
B
A. Curtain housing
B. Curtain bottom channel on air conditioner
4. Extend right-hand curtain outward so you may insert a #8 x
3/4" round-head screw through the top hole of the curtain.
Using #8 x 3/8" screw, screw curtain to top hole in air
conditioner cabinet.
NOTE: This screw is required to correctly attach curtain (top
to bottom) to the air conditioner cabinet.
5. While the right-hand curtain is still extended, insert screw in
the bottom slot of the curtain. Using #8 x 3/8" pan-head screw,
screw the curtain to the bottom hole in the air conditioner
cabinet.
6. Slide the curtain housing into the channels as far as it will go.
7. Repeat above steps for the left-hand curtain.
Attach foam adhesive seal
Attach foam adhesive seal along the bottom of the curtain
bottom channel.
A
B
A. Curtain housing
B. Foam adhesive seal
Position the Air Conditioner
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Failure to do so can result in back or other injury.
•
Handle air conditioner with care.
• Be sure your air conditioner does not fall out of the
opening during installation or removal.
•
The place where the power cord exits the air conditioner
should be no more than 4 ft (122 cm) from a grounded
outlet.
•
Do not block the louvers in the front panel or outside of the
air conditioner.
6
