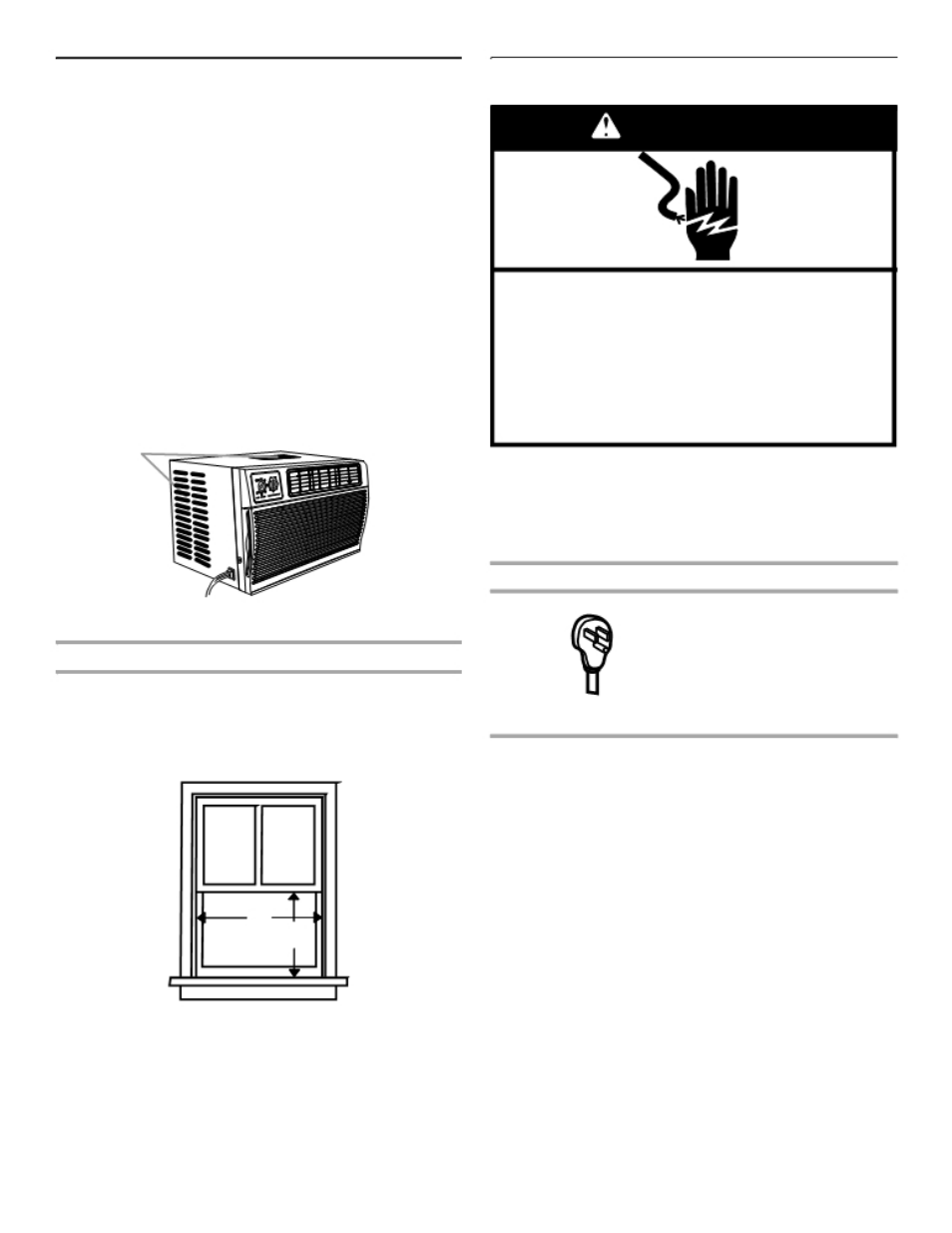

Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
Check the location where the air conditioner will be installed.
Proper installation is your responsibility. Make sure you have
everything necessary for correct installation.
The location should provide:
• Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.
NOTE: Do not use an extension cord.
•
Free movement of air in room to be cooled.
• A large enough opening for the air conditioner. Installation
parts are supplied for double-hung windows.
• Adequate wall support for weight of air conditioner. Air
conditioner weighs 51 lb (23 kg) to 65 lb (29.5 kg).
NOTES:
• Cabinet louvers must not be obstructed. Air must be able to
pass freely through the cabinet louvers.
•
Your model may differ from the one shown.
A
A. Cabinet louvers
Window Installation
Window opening measurements:
o 25" (63.5 cm) minimum to 38" (96.5 cm) maximum
opening
width
o 14" (35.6 cm) minimum opening height
A
B
A. 25" (63.5 cm) minimum
B. 14" (35.6 cm) minimum
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
The electrical ratings for your air conditioner are listed on the
model and serial number label. The model and serial number
label is located behind the front panel above the coil area.
Specific electrical requirements are listed in the chart below.
Follow the requirements for the type of plug on the power supply
cord.
Power supply cord Wiring requirements
o 115 volt (103.5 min.-
126.5max.)
o 0-12 amps
o 15-amp time-delay fuse or
circuit breaker
o Use on single outlet circuit
only.
