8
WINDOW KIT INSTALLATION
The window kit is designed to fit into most
standard vertical and horizontal windows, as well
as some sliding glass doors. However, it may be
necessary to modify some aspects of the
installation process for certain window types.
1.
Open the window or sliding door and adjust
the length of the window kit to fit the
opening. If the window kit is not long
enough, connect the extra window kit panel
to fit the opening. Mark and cut down a
single panel of the window kit if necessary.
2.

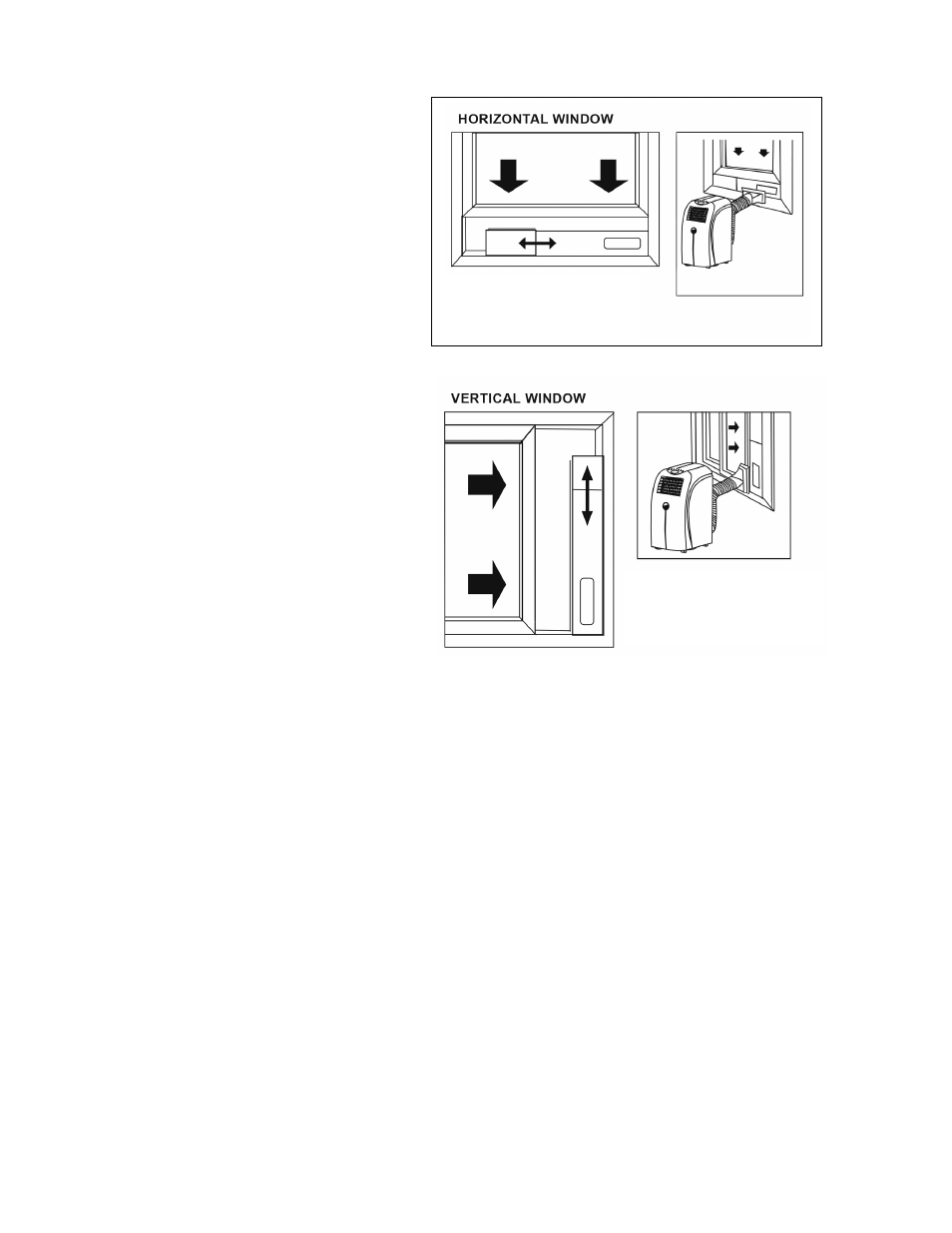

Place the window kit between the window
and the window frame as shown in the
images to the right. Close the window onto
the window kit to form a tight seal.
3.
Attach the exhaust duct adapter to the
window kit. Tabs located on the adapter will
lock into place securing the adapter to the
window kit.
Window Slider Kit
Minimum: 33 1/2” (85cm)
Maximum: 70” (177.8cm)
Window Slider Kit
Minimum: 33 1/2” (85cm)
Maximum: 70” (177.8cm)
