CONTROL PANEL FUNCTIONS

ON/OFF BUTTON

Starts or stops the unit.

MODE BUTTON

Press to select the operating mode:
Fan Mode
Air Conditioning Mode
Heating Mode
Dehumidifying Mode
Auto Mode

FAN SPEED BUTTON

Press to select the fan speed: High, Medium, and Low.

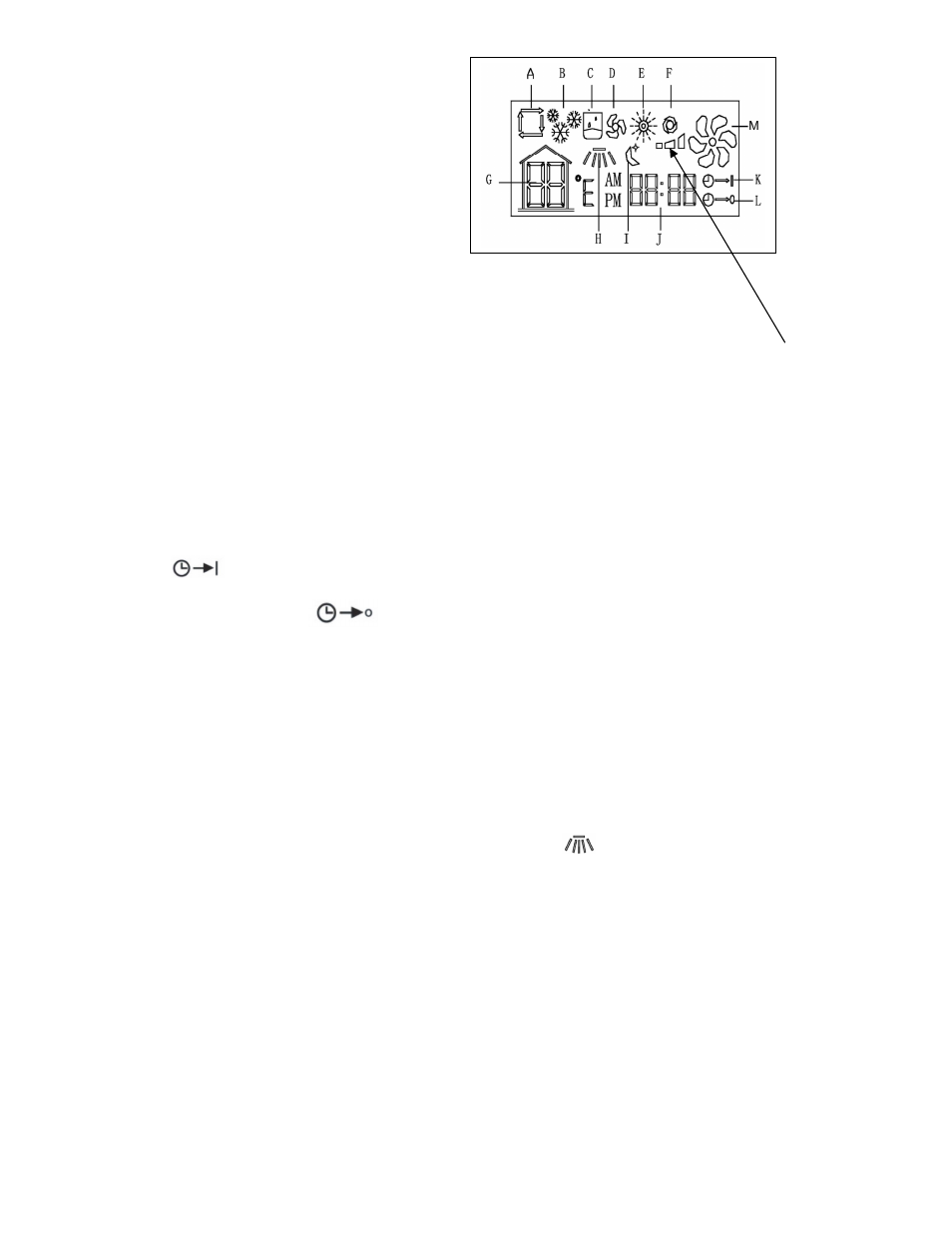

The fan speed can be visually distinguished by the number of the digital air segments (follow arrow
above) flow out from the windmill fan image on the multi-color display.

TEMPERATURE

When in cooling or heating mode, the desired temperature can be selected by pressing the ∧ and ∨
buttons. The multi-color display flashes the temperature while it is being set. The multi-color display
shows the set temperature when it is not in temperature setting mode.

The multi-color display can show either Celsius or Fahrenheit. Press the ∧ and ∨ buttons
simultaneously to change the display from Celsius to Fahrenheit or vice versa.

TIMER

To set the auto start time, press the Timer on button until the multi-color display shows a flashing

”. Press the ∧ and ∨ buttons to change the clock to the desired time for the unit to

automatically start. To set the auto stop time, press the Timer Off button and the multi-color display

will show a flashing “

”. Press the ∧ and ∨ buttons to change the clock to the desired time

for the unit to automatically stop. The light will flash for 3 seconds to activate the timer you
programmed.

TIME DISPLAY

In the diagram above, the letter “J” points to the adjustable time display. To adjust the time, Press FAN,
SPEED and SWING together (at the same time) and then release your fingers from the buttons. The
Time Display feature is now activated. To change the hours the ▲ button. Each press of the button will
increase the hours by increments of 1. To change the minutes press the ▼ button. Each press of the
button will increase the minutes by increments of 1.

SWING

To start horizontal oscillation, press the Swing button once. ‘

’ icon will appear on the multi-color

display. To stop oscillation, press the Swing button again. Vertical air flow direction can be adjusted
manually.
