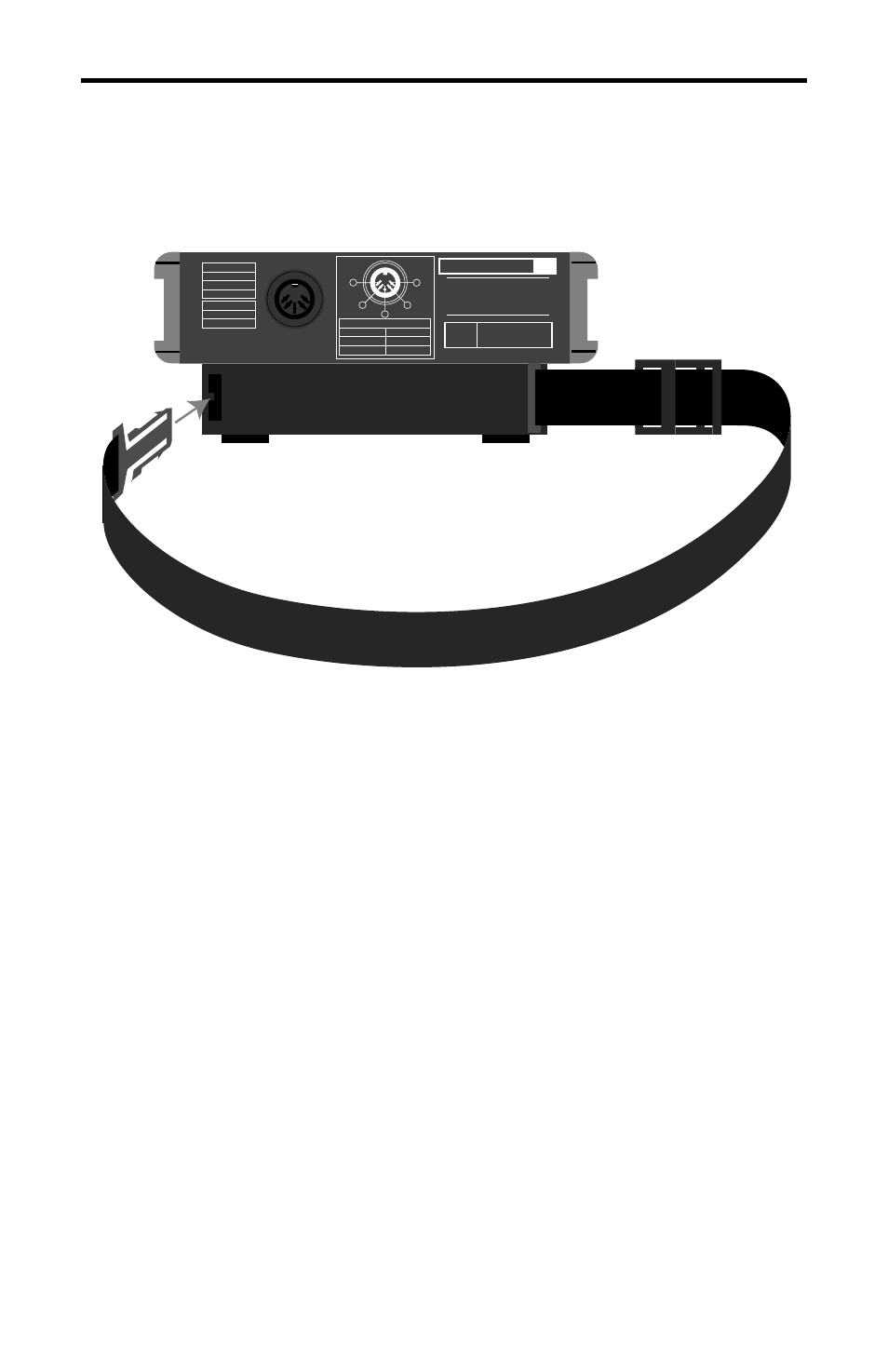

The MIXPAD 4 is supplied with a handy carrying strap for easy
portability. As shown in the illustration above, attach the strap to the
MIXPAD 4 by placing the buckles in the connector slots and pressing
them in firmly until they snap in place. Remove the carrying strap by
gently squeezing together the outside buckle clips in order to extract
them from the connector slots.
Connecting the MIXPAD 4
Carrying Strap
11
MIX PAD PAD 4
S / N
A V I S ;
R I S Q U E D E C H O C E L E C T R I Q U E
N E P A S O U V R I R
D O N O T E X P O S E T H I S E Q U I P M E N T
T O R A I N O R M O I S T U R E
1
2
3
4
5
D . C . I N P U T
P I N 1 + 1 5 V
P I N 2 - 1 5 V
P I N 3 G N D
P I N 4 + 3 2 V
P I N 5 G N D
X L R / L I N E I N P U T
2 / T I P +
3 / R I N G -
1 / S L E E V E G N D
A U X S E N D / R E T U R N
T I P +
S L E E V E G N D .
D C I N P U T
MIX
PAD 4
