Samson MIXPAD User Manual
Page 10
8
Guided Tour - MIXPAD 12 /

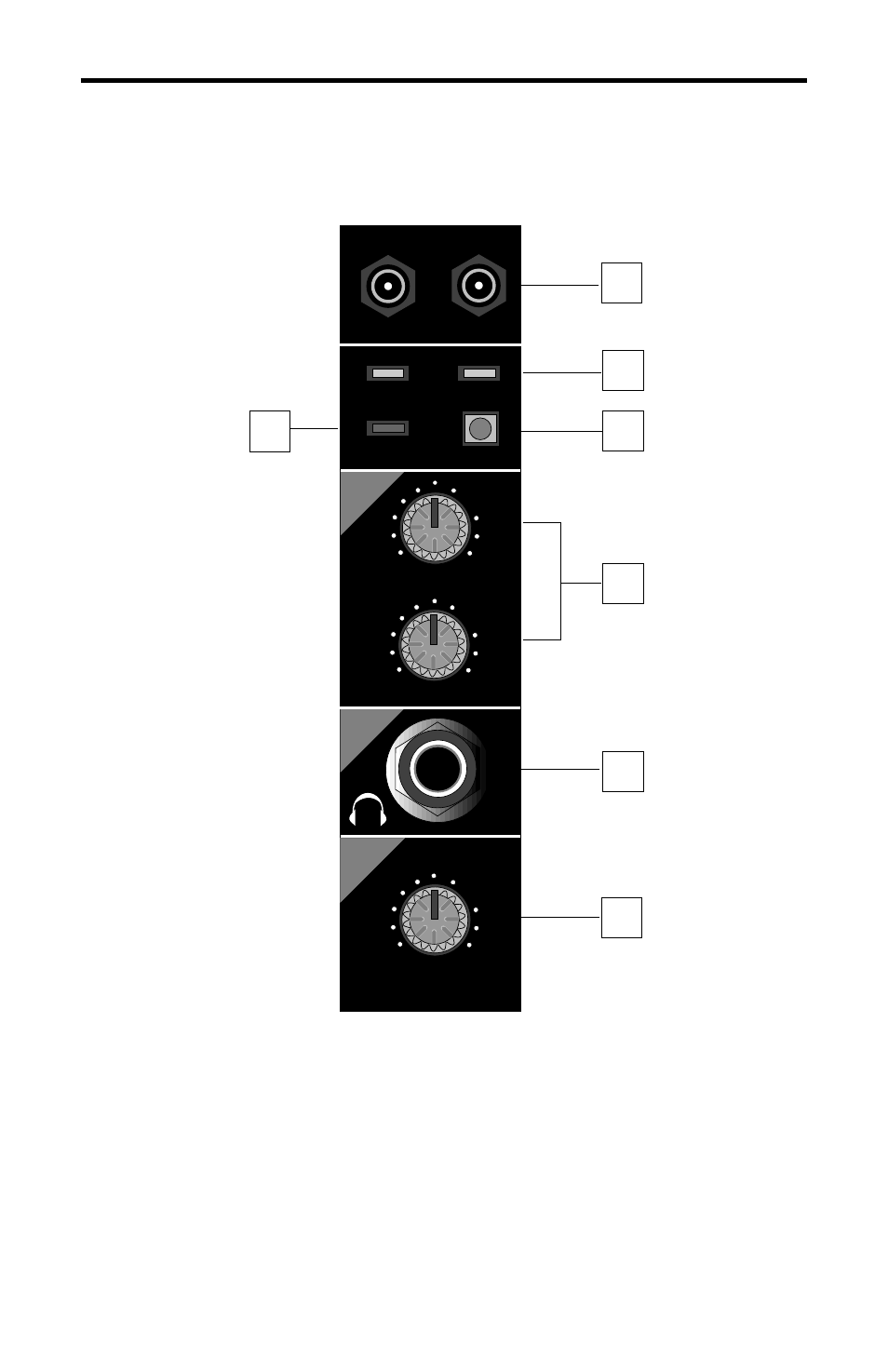

MIXPAD 9 Main Section
1: Tape/CD inputs (L, R) - Use this set of dual RCA jacks to connect
the outputs of a tape or CD player to the MIXPAD. In the MIXPAD 12,
signal connected here appears at stereo channel 11/12 and is mixed at
unity gain with any line input signal connected to channel 11/12. In the
MIXPAD 9, signal connected here appears at stereo channel 8/9 and is
mixed at unity gain with any line input signal connected to channel 8/9.
