Instructions for the Installer
50

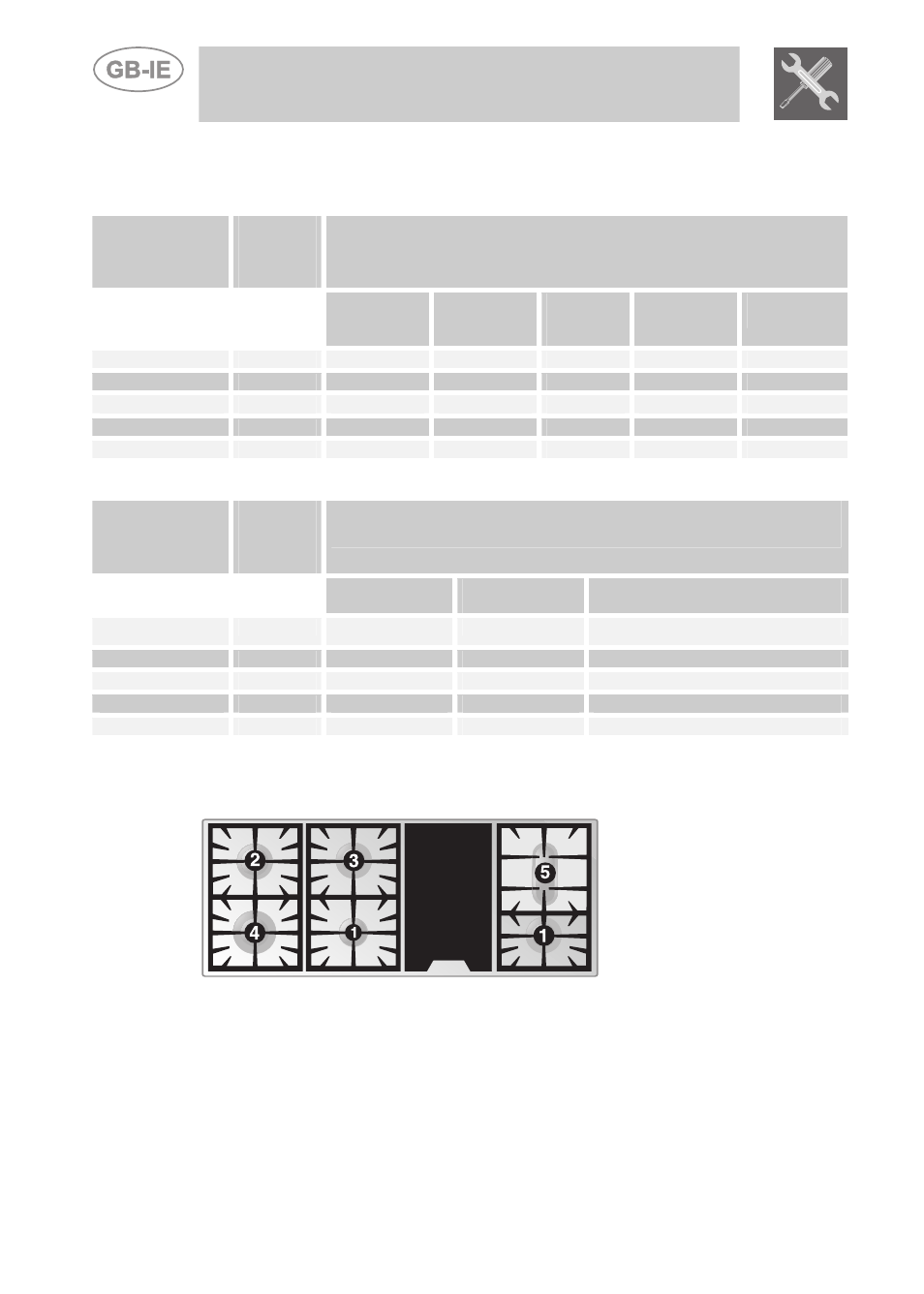

3.2 Burner and nozzle characteristics table
Burner Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
(drawing ref. X238)
Nozzle
diameter
1/100 mm
By-pass
Mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 50 30 400 76 75
Semi rapid 1.8 65 33 500 131 129
Rapid 3.0 85 45 800 218 215
Fish Burner 1.9 68 45 800 138 136
Ultra rapid 4.0 100 65 1600 291 286
Burner Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Drawing
Ref.
Reduced flowrate
(W)
Auxiliary 1.05 72 (X) 400
Semi rapid 1.8 97 (Z) 500
Rapid 3.0 115 (Y) 800
Fish Burner 1.9 94 (X) 800
Ultra rapid 4.0 135 (K) 1600
3.3 Hob burner layout
BURNERS
1
Auxiliary
2 Semi rapid
3 Rapid
4 Ultra rapid
5 Fish
