Specifications for Printwork and Stickers
Stickers
Stickers are processed as self-adhesive labels
supplied on rolls.
NICE PRICE
FROM SONY MUSIC
NICE PRICE
FROM SONY MUSIC
40 / 75
Max. 300
Min. 3
Max. 100
Sticker sizes to be
processed on machine:
min. 10x10 or Ø 15
max. 110x90 or Ø 90
● Possible core diameter: 40 or 75 mm
● Max. possible roll diameter: 300 mm
● Eliminate punching grid
(do not leave on the roll).
● Distance between the stickers:
at least 3 mm.
● Position stickers with letters or various
print in unwinding direction, if application
is to the upper side of the box.
● Punched paper base cannot be processed
further.
● Stickers not complying with the standard
cannot be processed on the machine and
will increase costs considerably.
All dimensions in mm
Unwinding direction
Reading direction
Unwinding direction
Reading direction

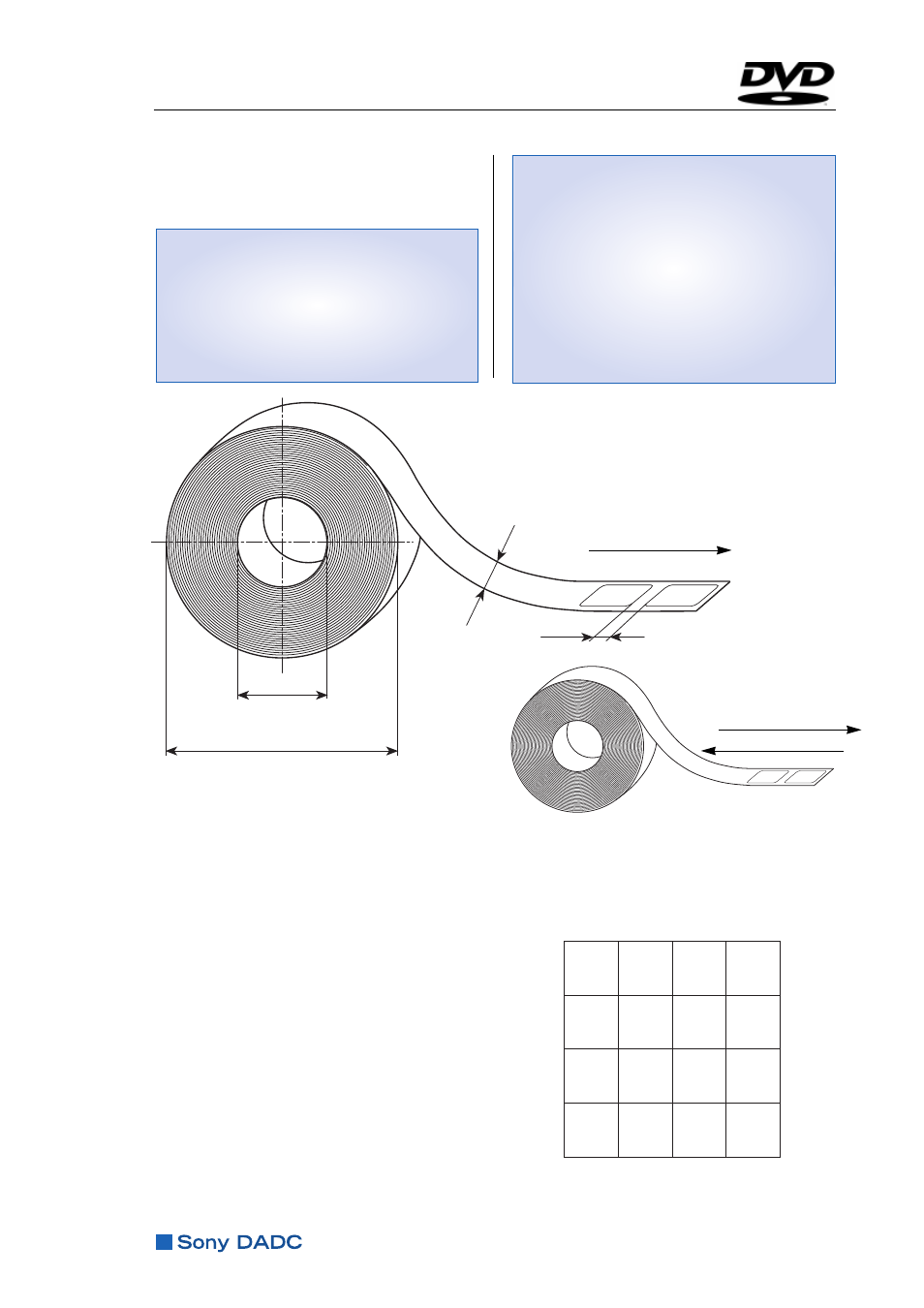

Stickers can be processed automatically on the
upper and lower side of the box. To indicate the
desired position of the sticker on the box please use
the diagram opposite.
Arrangement of stickers on the roll for the lower
side of the box.
Positioning of the sticker
V = position of the sticker on the front side (V/. /.)
H = position of the sticker on the rear side (H/. /.)
Example: V/A/1
sticker on position A1/front side
H/B/2
sticker on position B2/rear side
A1 B1 C1 D1
A2 B2 C2 D2
A3 B3 C3 D3
A4 B4 C4 D4
NICE PRICE
FROM SONY MUSIC
NICE PRICE
FROM SONY MUSIC
Position diagram
