Specifications for Printwork
● Barcode types: UPC/EAN 128, Code 39, CODABAR, 2/5 Industrial
● Position: right, vertical (see drawing)
● Alternative: right, horizontal (see drawing)
● Barcode height: min. 11 mm

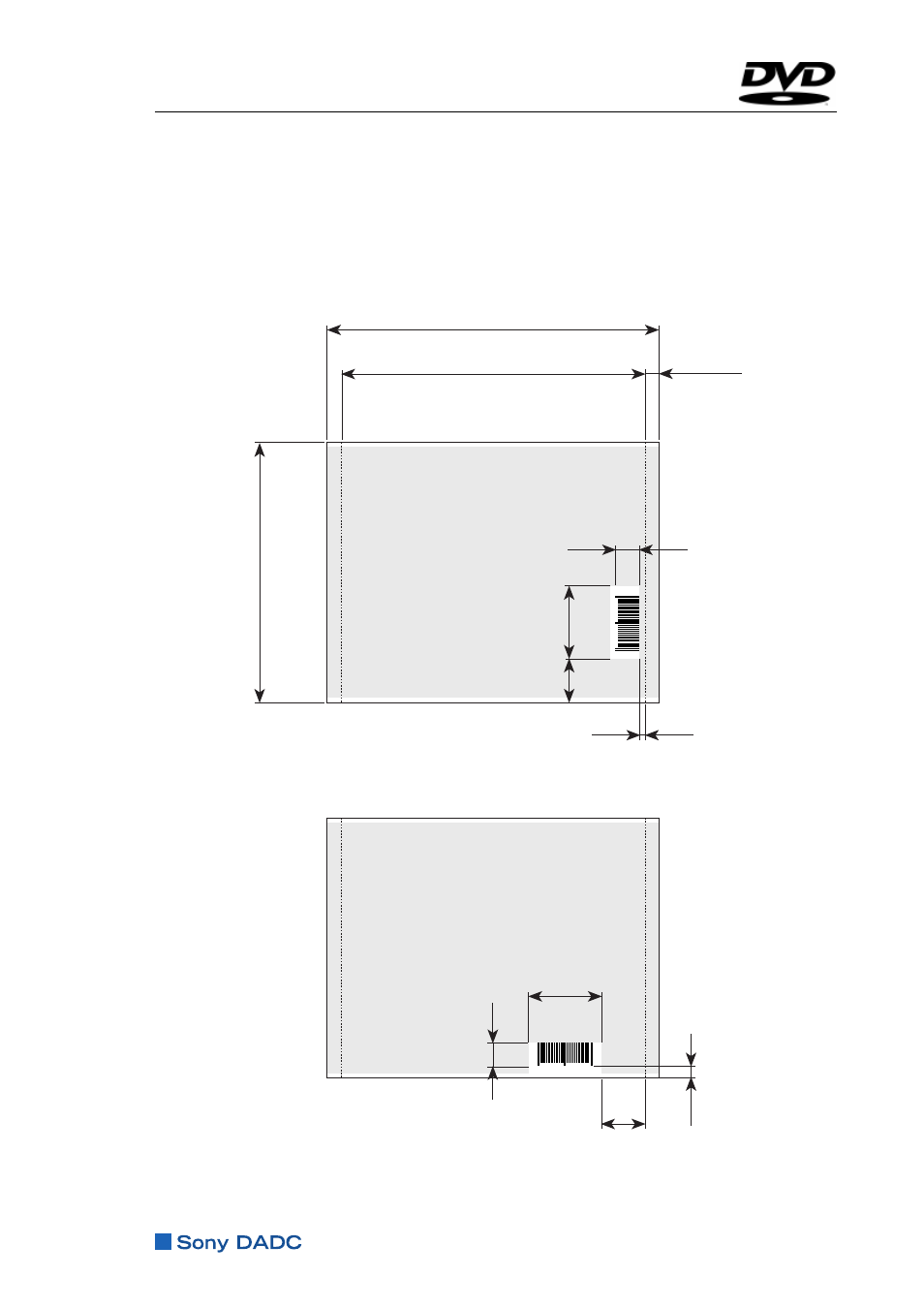

Position Specifications for Barcode (Inlay Card):
138
±0,2
1
18
151
±0,2
POSITION VERTICAL
4
013859
777012 32
2,5
11
(6,5
±0,2)
POSITION HORIZONTAL
4 013859 777012
32
1
1
5
20
20
0 -0,5
All dimensions in mm
