NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
SUPERIOR ® DIRECT-VENT GAS FIREPLACES • MODELS SLDVT-30/35/40/45 • CARE AND OPERATION INSTRUCTIONS

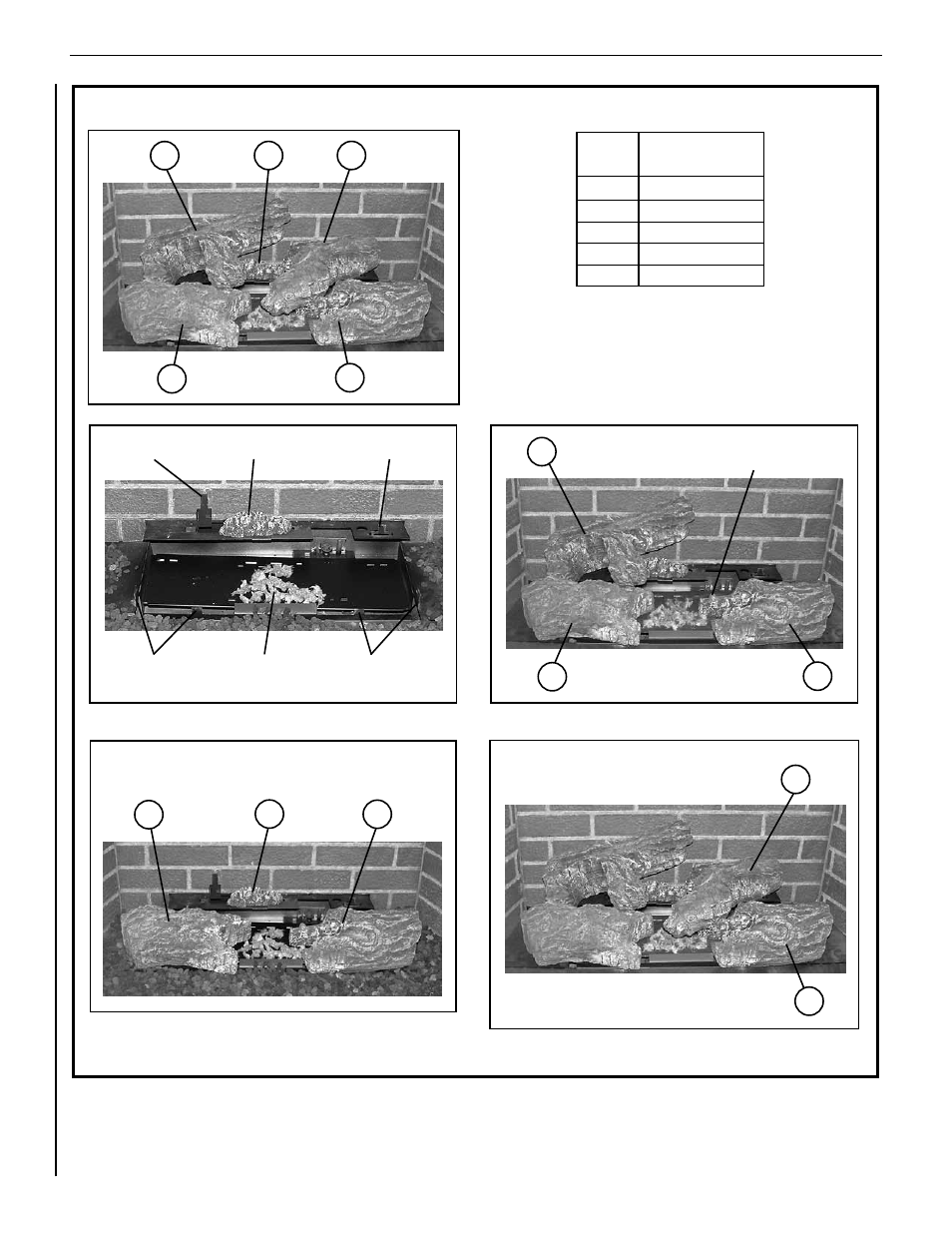

SLDVT-40 LOG PLACEMENT
Step 2
Step 3 Step 1
4
2
Right Front Log "Nub"
3
Step 4
Log
Number Description
1 Ember Chunk
2 Left Front Log
3 Right Front Log
4 Left Rear Log
5 Right Rear Log
Catalog Number for the entire
log set: H7245
4 5
3 2
1
Align the hole at the bottom of log (5) over
the "Nub" of log (3) as shown.
3
5
Left Rear
Bracket
Right Rear Bracket
Right Front Brackets Left Front Brackets
Place Ember Chunk Here
Align hole at the bottom of left front log (2) over the left front
brackets and the right front log over the right front brackets.
3 2 1
Position on the left
rear log bracket
Rockwool
(Do Not Place Rockwool Over Burner Slots)
Figure 10
