12. Install the Door Panels
NOTE: Perform these installation steps from outside the bath/shower.
Install the Inside Panel
Lift the inside door panel with the rollers facing away from you.
Position the rollers on the inside rail of the top track.
Check the panel for proper alignment and smooth operation. Adjust as needed (directions below).
Temporarily position the inside panel in the center of the top track.
Adjusting the Rollers
Remove the door panel.
Loosen the roller screw(s) and move the roller(s) in the slot to align the panel.
Tighten the screws and reinstall the panel.
Install the Outside Panel
Lift the outside door panel with the rollers facing you and position the rollers on the outside rail.
Position the bottom of the door panel over the bottom track guide.
Check the panel for proper alignment and smooth operation. If adjustment is needed, follow the
adjustment directions above.

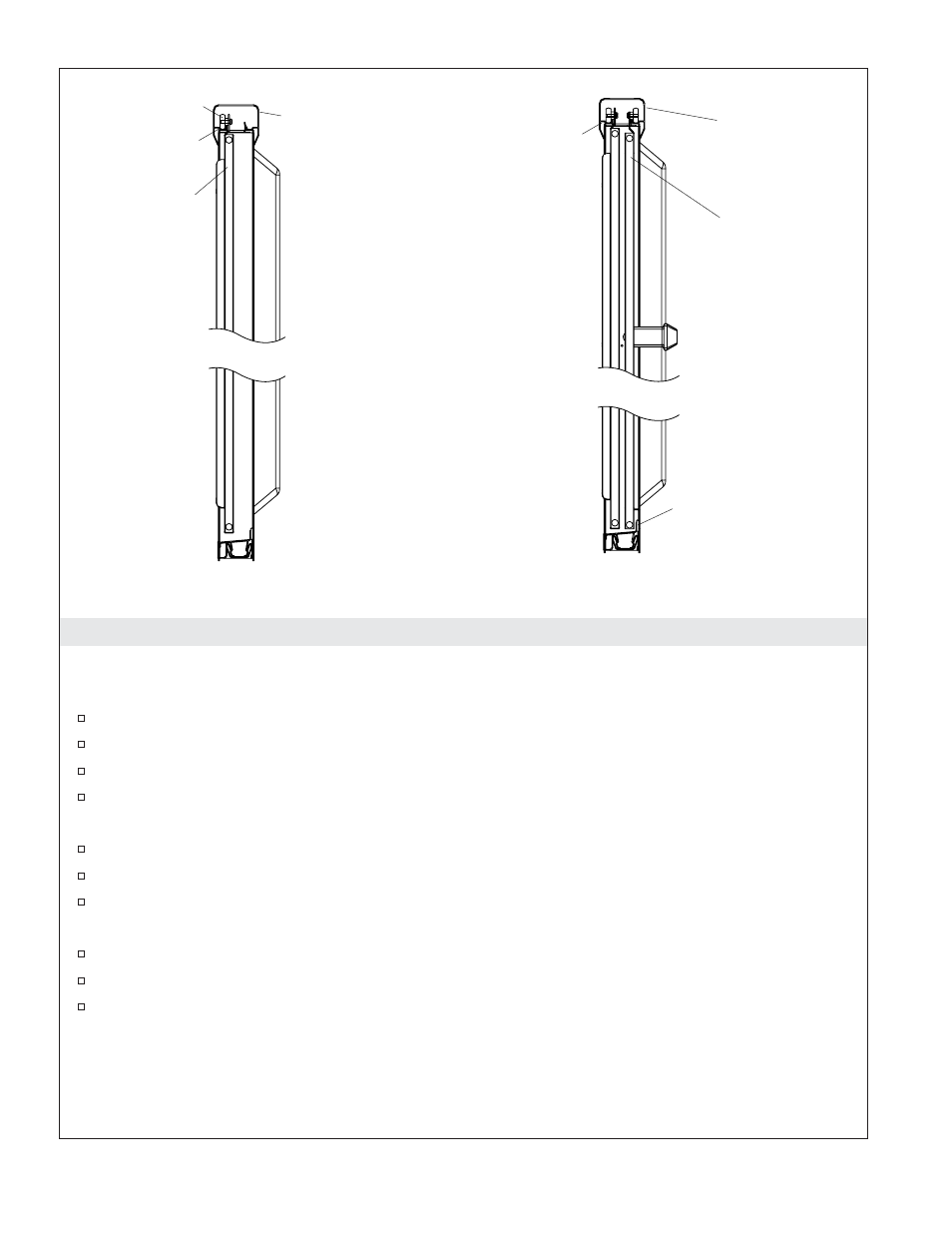

Roller
Outside of
Bath/Shower
Inside
Panel
Top Track
Rail
Side View
Outside Panel
Top Track
Rail
Inside of Bath
Bottom Track Guide
Side View
1035946-2-C 12 Sterling
