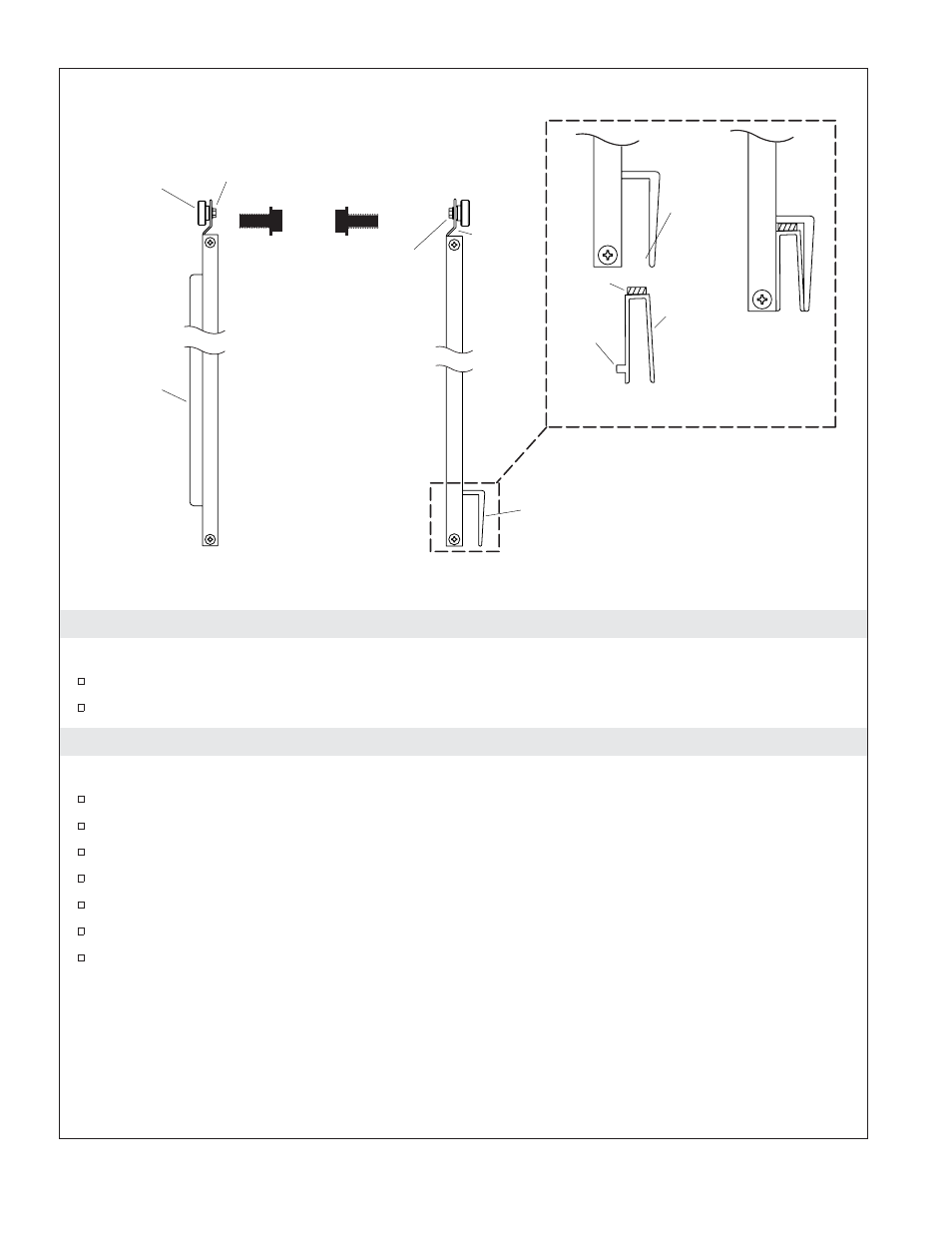

10. Install the Rollers - Inside Panel
NOTE: The steel side of the roller must be installed against the top frame flange.
Place the rollers on the top frame flange, facing the handle side of the door panel side frame.
Secure the rollers with #8-32 x 3/8 ″ hex washer head screws.
11. Install the Rollers - Outside Panel
NOTE: The steel side of the roller must be installed against the top frame flange.
Place the rollers on the top frame flange. The roller should face the bottom frame leg.
Secure the rollers to the top frame flange with #8-32 x 3/8 ″ hex washer head screws.
Lay the outside door panel on a flat surface taking care to protect the glass.
Cut two 7/8 ″ (2.2 cm) long pieces of the provided adhesive tape.
Remove the protective paper from the adhesive side of the tape and attach the tape to the bushings.
Locate the bushings 1/4 ″ (6 mm) from each end on the bottom frame of the outside panel.
With the bushing tab toward the bottom frame groove, pinch the bushing legs together and push
down until the bushing tab snaps into the bottom frame groove.
Bushing
Installed into the
Bottom Frame
Groove
Bushing
Roller
Outside Panel
Bottom Frame Leg
Top
Frame
Flange
#8-32 x 3/8" Hex
Washer Head
Screw
#8-32 x 3/8"
Hex Washer
Head Screw
Inside Panel Outside Panel
Handle Side
of Door Panel
Side Frame
Tab
Tape
Sterling 11 1035946-2-C
