HT Link Width
This item allows you to enable or disable the HT Link Width.

The choice: Auto, 8 bit or 6 bit.
HT Link Frequency
This item allows you to set the HT Link Frequency.

The choice: Auto, 200 MHz~2.6 GHz.
******** Memory Timing Set *********
Timing Mode
Auto, no user limit MaxMemClk, limit by Memory Clock value.

The Choice: Manual or Auto.
Memory Clock Value
Setting platform Memclock.

The Choice: DDR, DDR667 or DDR800.
DDRII Timing Item
This item allows you to enable/disable the DDRII Timing Item.

The choice: Enabled or Disabled.
(Tcl)CAS Latency Time
 The Choice: ~6 clocks.


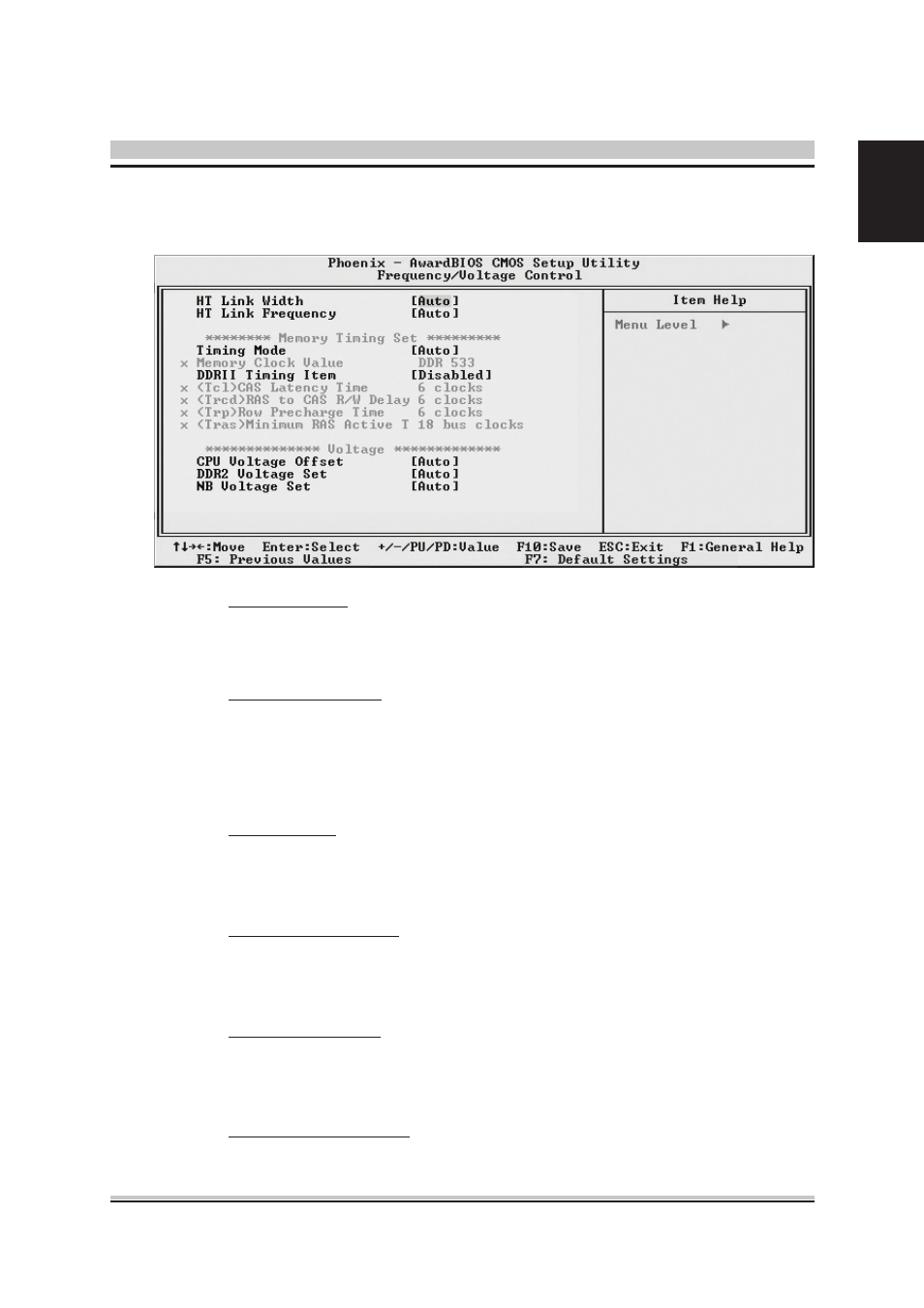

Frequency/Voltage Control
