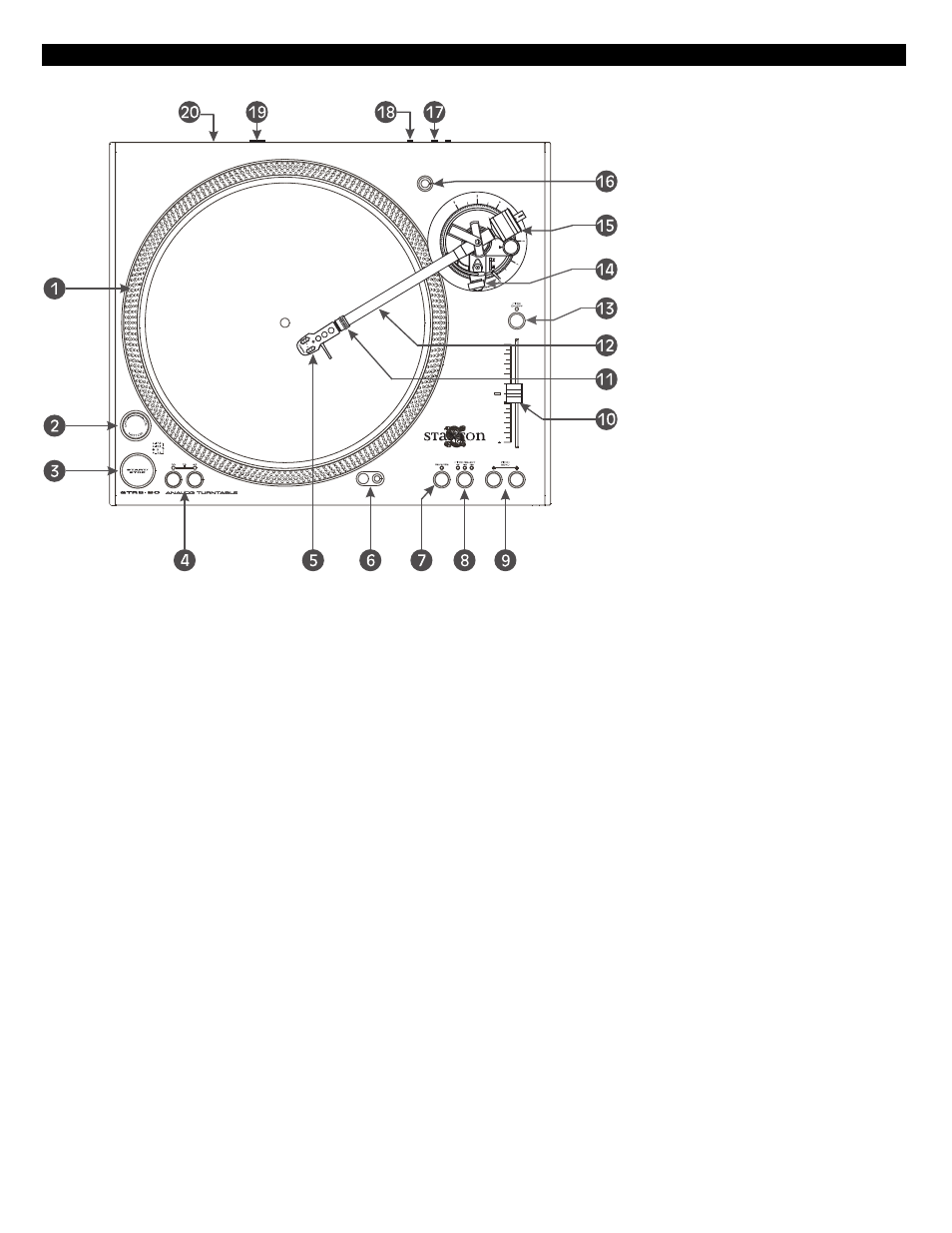

PART NAMES & FUNCTIONS
1) STROBE DOTS
The dots around the edge of the platter are
used in conjunction with the light located inside
the motor ON/OFF switch. While the platter is
in rotation, the dots help to indicate the speed
of rotation. The speed is lower than the
displayed speed (33,45,78) when the dots are
flowing to the right. It is higher than the
displayed speed (33,45,78) when the dots are
flowing to the left. When the strobe is stopped,
the platter is rotating at the displayed speed.
2) MOTOR ON/OFF SWITCH
As opposed to analog turntables, this is not the
power switch. This switch only turns on or off
the motor. Rotate clockwise to turn on the
motor. The platter will not start spinning until
the start/stop button has been pressed. Rotate
counter-clockwise during playback (off position)
for a slow winding down effect.
3) START/STOP
Press this button to start or stop the platter.
4) PLATTER REVOLUTION SPEEDS (rpm)
33 rpm – Press 33
45 rpm – Press 45
78 rpm – Press 33 and 45 buttons
simultaneously. To return to 33 or 45-rpm play
mode, just press the desired button.
5) HEASDHELL
When installing a phonograph cartridge, refer
to the installation instructions supplied by the
cartridge manufacture.
6) TAGRET LIGHT
Press the button to light up the stylus. To
retract the light, press down on the light itself.
7) REVERSE
This button is used to reverse the direction of
the platter rotation.
8) PITCH SELECT
Press the button to switch between
+/-8%,+/-16%, or +/-25% pitch range.
9) PITCH BEND
The pitch will increase/decrease by up to 6%
while the pitch bend minus button is pressed.
10) PITCH SLIDER
Use this to change the speed of the platter
when the PITCH button is lit.
11) HEADSHELL LOCKING NUT
Attach the headshell by inserting into the front
end of the tone arm, then turn the locking nut
clockwise with the head shell firmly held
horizontally.
12) TONE ARM
This is a fully manual tone arm. To start
playback, gently place the stylus on the record
using the headshell finger support. Do not drop
the stylus onto the record as it may cause
damage to the diamond tip and to the record.
13) PITCH ON/OFF
The ON setting will allow use of the pitch adjust.
When set of OFF, the pitch control will be
locked at 0%.
14) TONE ARM BASE
The tone arm base includes the height
adjustment, tone arm rest. See “tone arm and
cartridge settings” for proper adjustments. Note:
No Anti-Skate is needed on straight tonearms.
15) COUNTERWEIGHT
Use this to balance the tone arm and to adjust
the stylus pressure.
16) HEADSHELL HOLDER
This is used to place extra headshell during a
performance for quick access.
17) OUTPUT
This is the standard analog output (RCA jacks)
which can be connected to a phono input on
any DJ mixer.
18) GND
Ground wire connection post
19) POWER SETICH
This switch turns the power on or off, including
the motor and audio signal.
20) POWER CORD CONNECTOR
Used to connect the included power cord.
