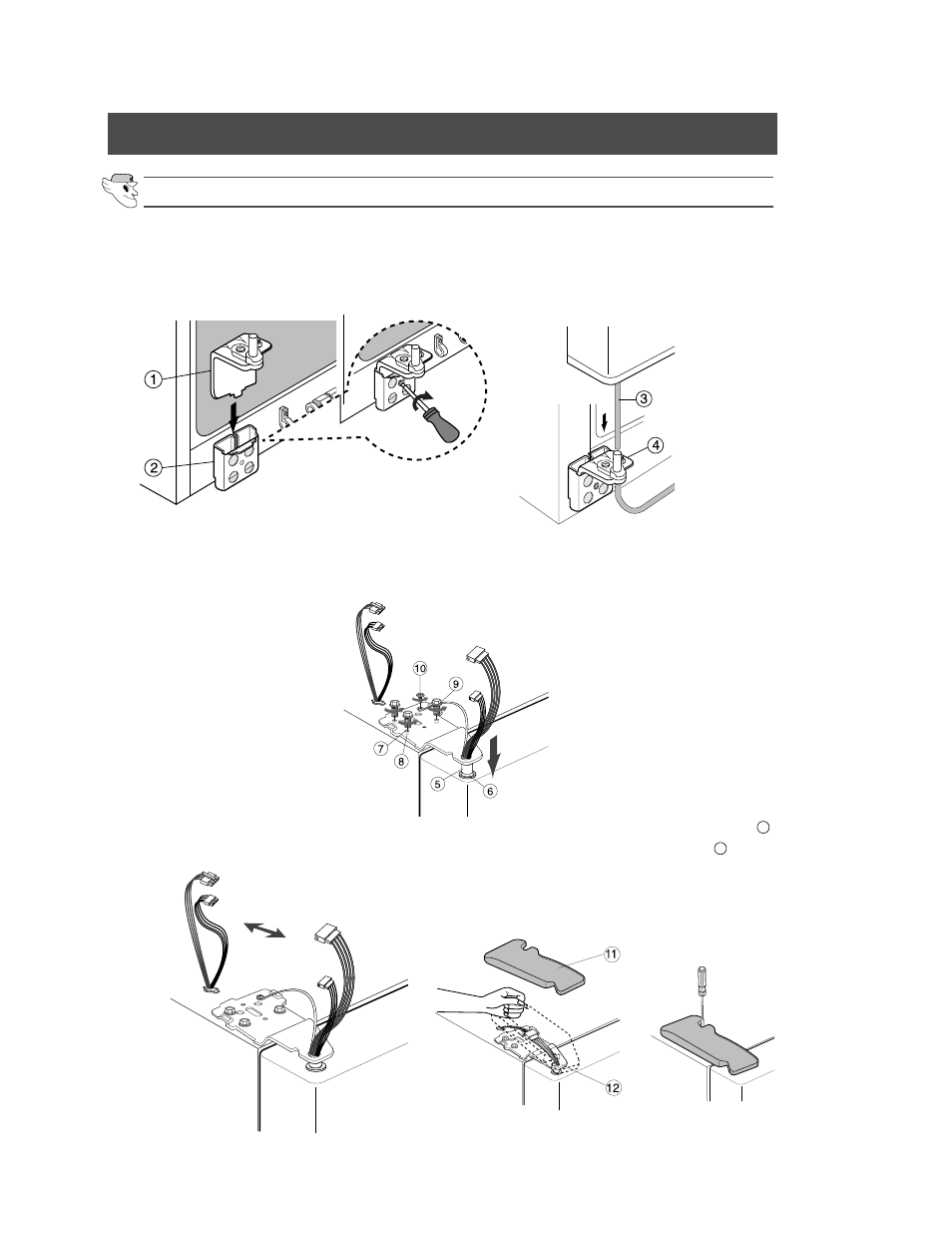

REATTACHING THE REFRIGERATOR DOORS
Reattaching the Freezer Door
1) Insert the lower hinge (
➀) in the bracket
lower hinge (
➁).
2) Reattach the freezer door by inserting the
hose (
➂) in the lower side of the door into
the hole in the lower hinge (
➃) and pulling
the hose down.
3) Insert the upper hinge shaft (
➄) into the hole (➅). After levelling between the upper hinge hole
(
➆) and the hole of the cabinet (➇). Reattach bolts (➈) and screw (➉) in a clockwise direction.
4) Connect the wires.
5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach from the front part of the upper hinge
cover first.
