VCR and Cable
For best results, use this connection if:
❑
Your cable company does not require you to use a cable box.
To connect the VCR and cable
1
Connect the CATV cable to the VCR’s VHF/UHF input jack.
2
Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
3
Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
4
Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 43.
About Using This Connection with Dual Picture (Twin View, etc.) Features
With this connection, you can use all the dual picture features.
Using
S VIDEO jacks?
See page 25.

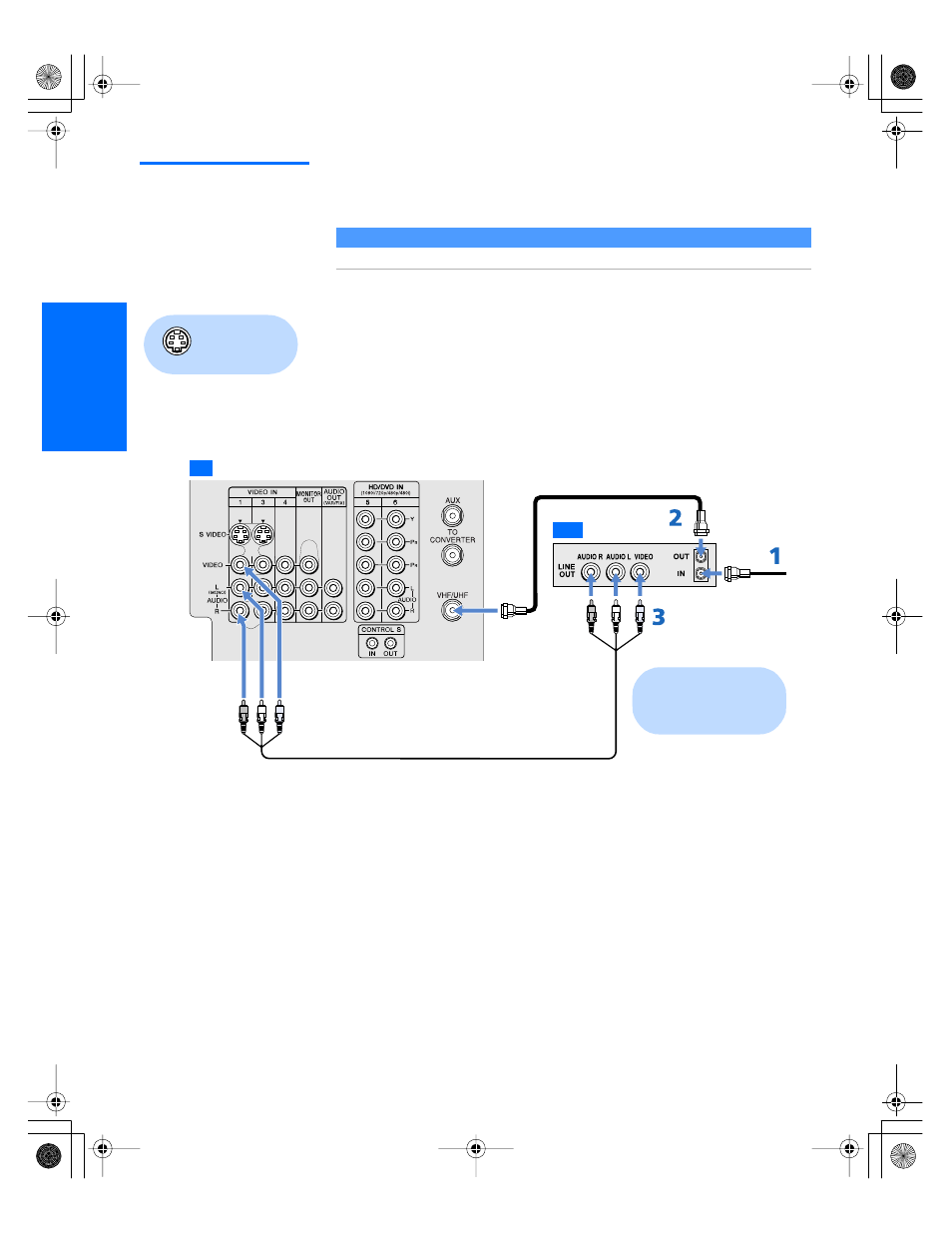

CATV cable
Coaxial cable
A/V cable
TV
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
