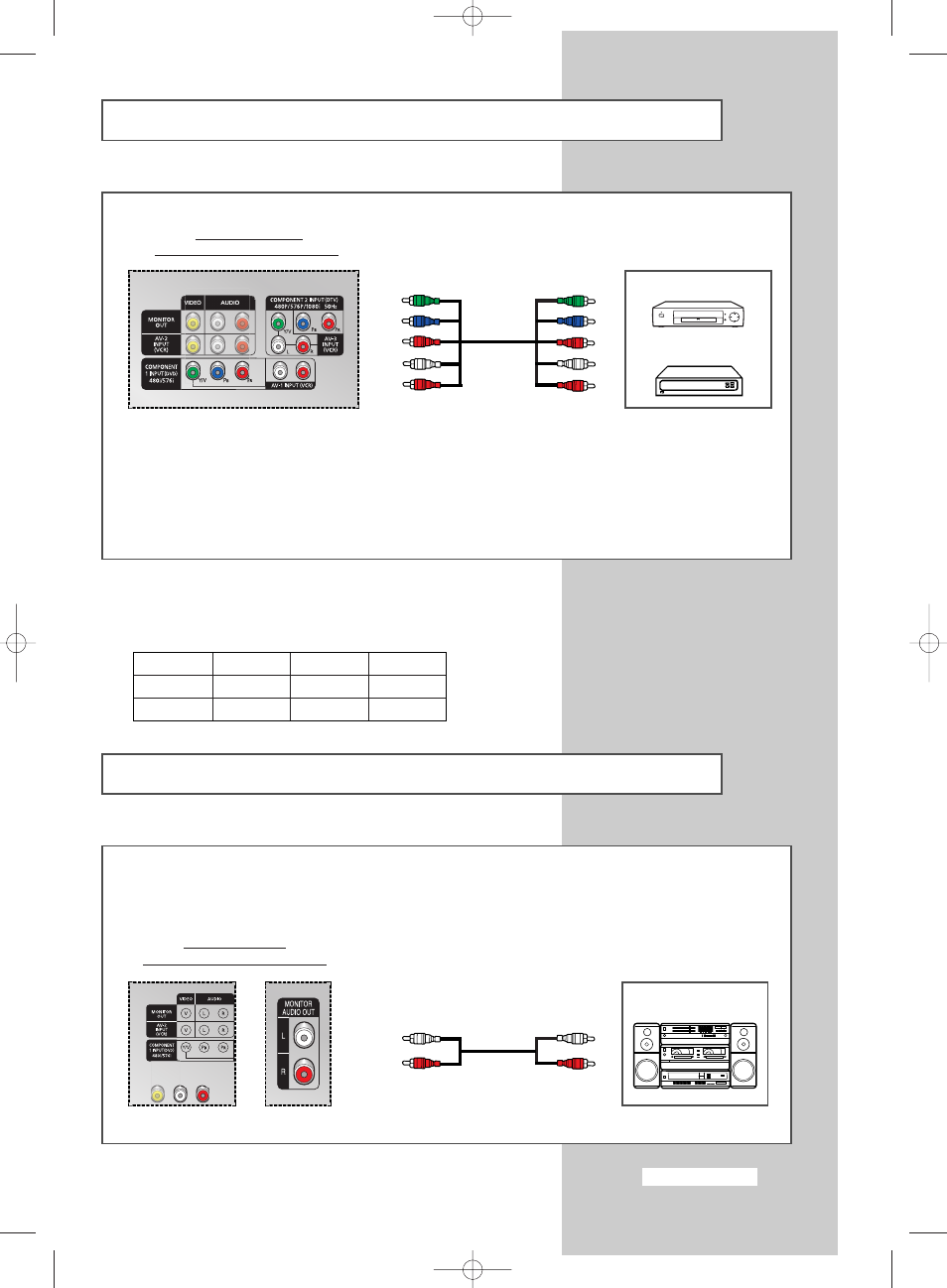

Connecting to the DVD Player or DTV receiver (depending on the model)
English-45
Connecting to the Audio Output
➢
The MONITOR OUT (L-AUDIO-R) connectors are used for equipment, such as an audio system (to
take full advantage of the Surround sound effect).
Audio system
Rear of the TV
(depending on the model)
DVD Player
Rear of the TV
(depending on the model)
◆ Connect the RCA Cable to “L” and “R” on the rear of your television and the other end to “Audio Out”
connector of the DVD player or DTV receiver. Connect the RCA Cable to “Y”, “P B ”, and “P R ” on the rear of
your television and the other end to the “Component Video Out (Y, P B , P R )” connectors of the DVD player
or DTV receiver.
◆ If you wish to connect both the DVD player and DTV receiver, you should connect the DVD player to the
“Component1” and connect the DTV receiver to the “Component2”.
DTV receiver
➢
If you change the output resolution of an external device at will,
the video from the device may not be displayed on the TV because
the resolution is not automatically switched. Check the available
input ports for each resolution.
Component1
Component2
480i/576i
O
X
480P/576P
X
O
1080i (50Hz)
X
O
