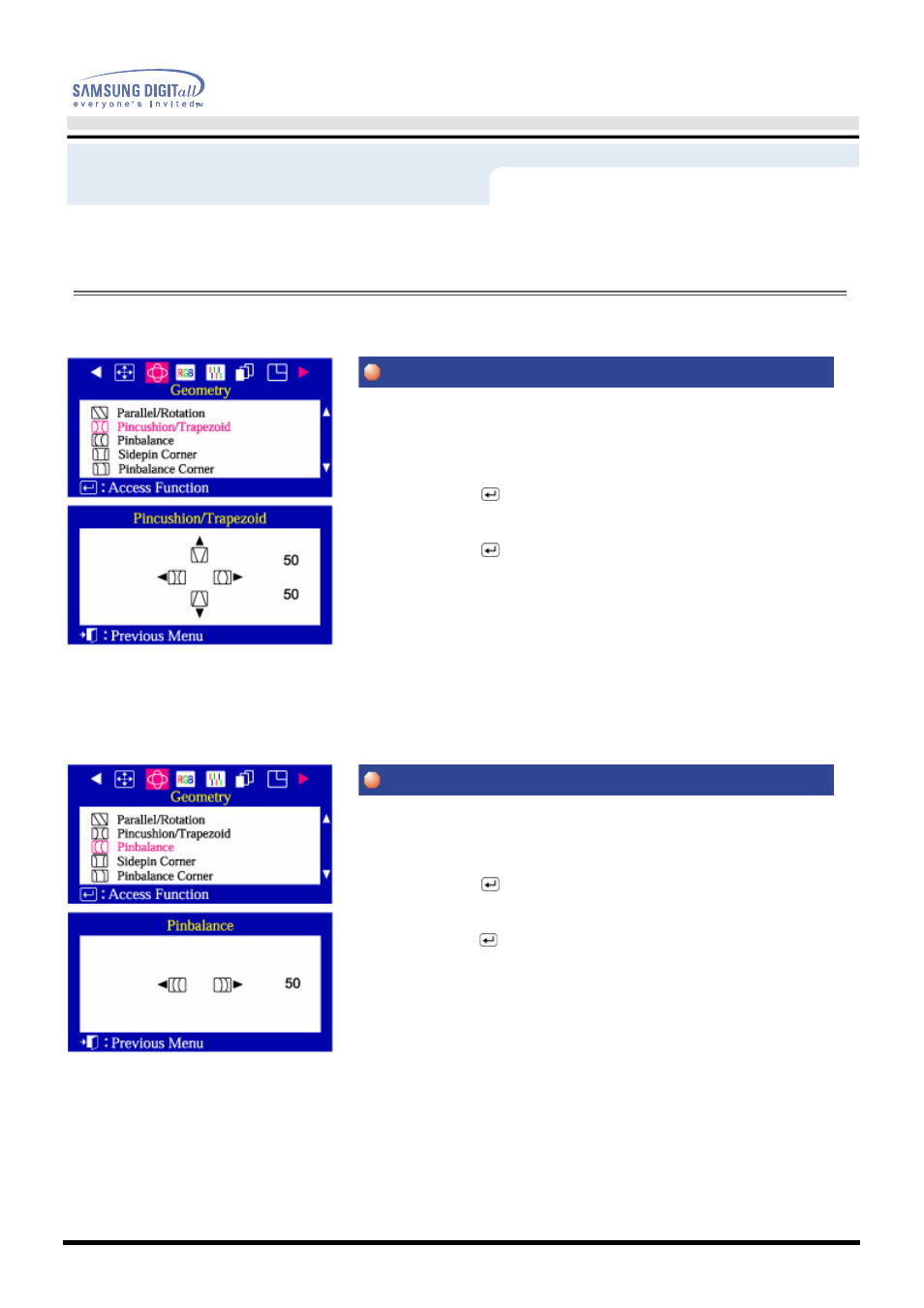

On-Screen Display
Adjust the pincushion setting when the sides of the display are bowed in or
bowed out; adjust the trapezoid setting when the top or bottom of the display is
too large or small.
1
Push the Menu (
) button.
2
Push the
button or
button until the Geometry screen is displayed.
push the button or button to select Pincushion/Trapezoid.
3
Push the Menu (
) button to open the Pincushion/Trapezoid
adjustment screen.
4
Use the
button or button to adjust the pincushion setting;
Use the button or button to adjust the trapezoid setting.
Adjust the pinbalance setting when the sides of the display are bowed towards
the left or right.
1
Push the Menu (
) button.
2
Push the
button or
button until the Geometry screen is displayed.
Push the button or button to select Pinbalance.
3
Push the Menu (
) button to open the Pinbalance adjustment screen.
4
Use the
button or
button to adjust the Pinbalance setting.
Menu
How to adjust
Pincushion/Trapezoid
Pinbalance
