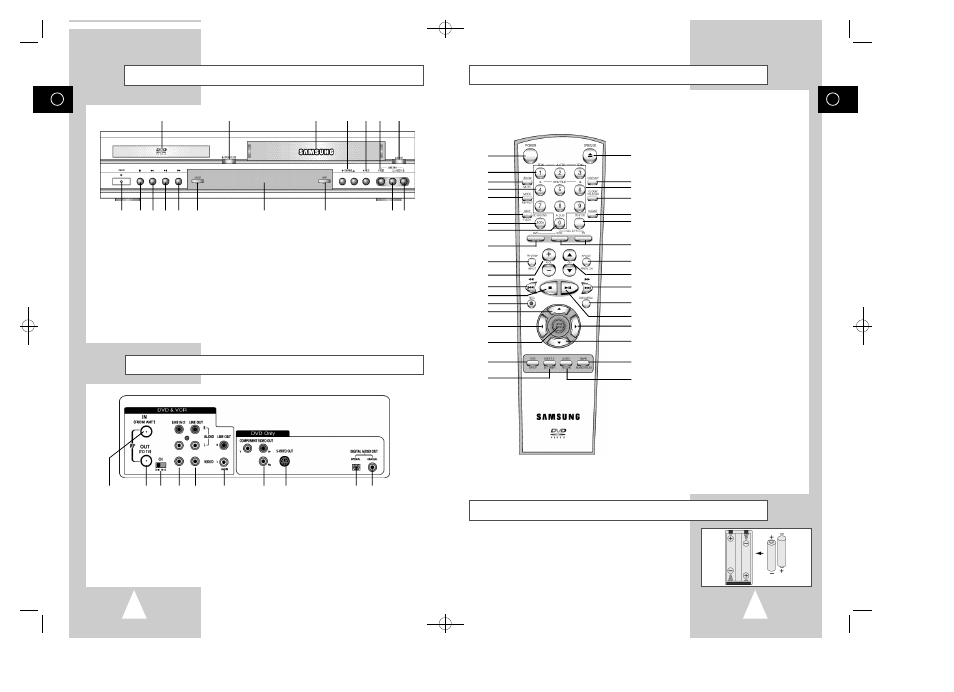

Remote Control Overview
Insert Remote Control Batteries
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
• Remove the battery cover by pushing down on the thumb tab and
sliding the cover in the direction of the arrow.
• Insert two 1.5V “AA” batteries as shown, paying attention to the correct
polarities (+/–).
• When finished, slide the cover until it clicks back into place.
1 POWER (p.13)
2 AUTO TRACKING (p.46)
TRACKING +/- (p.46)
3 ZOOM (p.37)
MUTE (p.68)
4 SHUTTLE <> (p.45)
5 MODE (p.42, 43)
REPEAT (p.39, 40, 45)
6 SKIP, F.ADV (p.34, 45)
7 3D SOUND (p.44), 100+ (p.15)
8 A.DUB (p.54)
9 DVD (p.13)
10 TV VIEW (p.13)
INPUT (p.68)
11 VOLUME +/– (p.15, 68)
12 REWIND (p.34, 45)
SKIP BACK (p.34, 45)
13 STOP (p.34)
14 RECORD (p.48)
15 UP (p.15)
16 LEFT (p.15)
17 SETUP (p.15)
ENTER (p.15)
18 TITLE (p.35)
SP/SLP (p.51)
19 SUBTITLE (p.38)
SET TIMER (p.55)
20 OPEN/CLOSE (p.13)
21 DISPLAY (p.15, 36, 45)
22 0-9 (p.15)
23 CLOCK/COUNTER (p.58)
24 CLEAR (p.15)
25 TV/VCR (p.15)
26 VCR, TV SELECT (p.68)
27 ANGLE (p.37)
PREVIOUS CHANNEL (p.15, 68)
28 CHANNEL +/– (p.15, 68)
29 FAST-FORWARD (p.34, 45)
SKIP NEXT (p.34)
30 DISC MENU (p.35)
31 PLAY/PAUSE (p.13, 14)
32 RIGHT (p.15)
33 DOWN (p.15)
34 MARK (p.41, 59)
SEARCH (p.60, 61)
INDEX (p.59)
35 AUDIO (p.22, 40)
RETURN (p.15)
Front Panel Overview
1 DVD DECK (p.13)
2 DVD OPEN/CLOSE (p.13)
3 VCR DECK (p.13)
4 RECORD (p.48)
5 VCR EJECT (p.14)
6 POWER (p.13)
7 REWIND/REV (p.34, 45)
8 PLAY/PAUSE (p.13, 14)
9 STOP (p.34)
10 FAST-FORWARD/FWD (p.34, 45)
11 DVD-VCR SELECT (p.13)
12 FRONT PANEL DISPLAY (p.10)
13 COPY (p.53)
14 CHANNEL +/– (p.15)
15 LINE 1 COMPOSITE VIDEO JACK
16 LINE 1 LEFT AUDIO JACK
17 LINE 1 RIGHT AUDIO JACK
1 2 3 14 4 15 5
6 9 7 8 10 11 12 13 16 17
1 2 3 4 5 6 7 8 9 10
Rear Panel
1 RF ANTENNA INPUT
2 RF OUT TO TV
3 VCR TUNER CHANNEL SELECTOR
4 LINE IN 2
5 LINE OUT TO TV (COMPOSITE)
6 AUDIO LINE OUT TO TV
(S-VIDEO OR COMPONENT)
7 COMPONENT VIDEO OUT
8 S-VIDEO OUT
9 DIGITAL AUDIO OUT
(OPTICAL)
10 DIGITAL AUDIO OUT(COAXIAL)
