2
Shock Mount
Internal rubber vibration isolator
Cable
1.8 m (6 ft) cable with effective hum shielding, four conductors
(two shielded), plastic jacketed
Case
Black finish die casting with black enamel diecast grille and
stainless steel screen

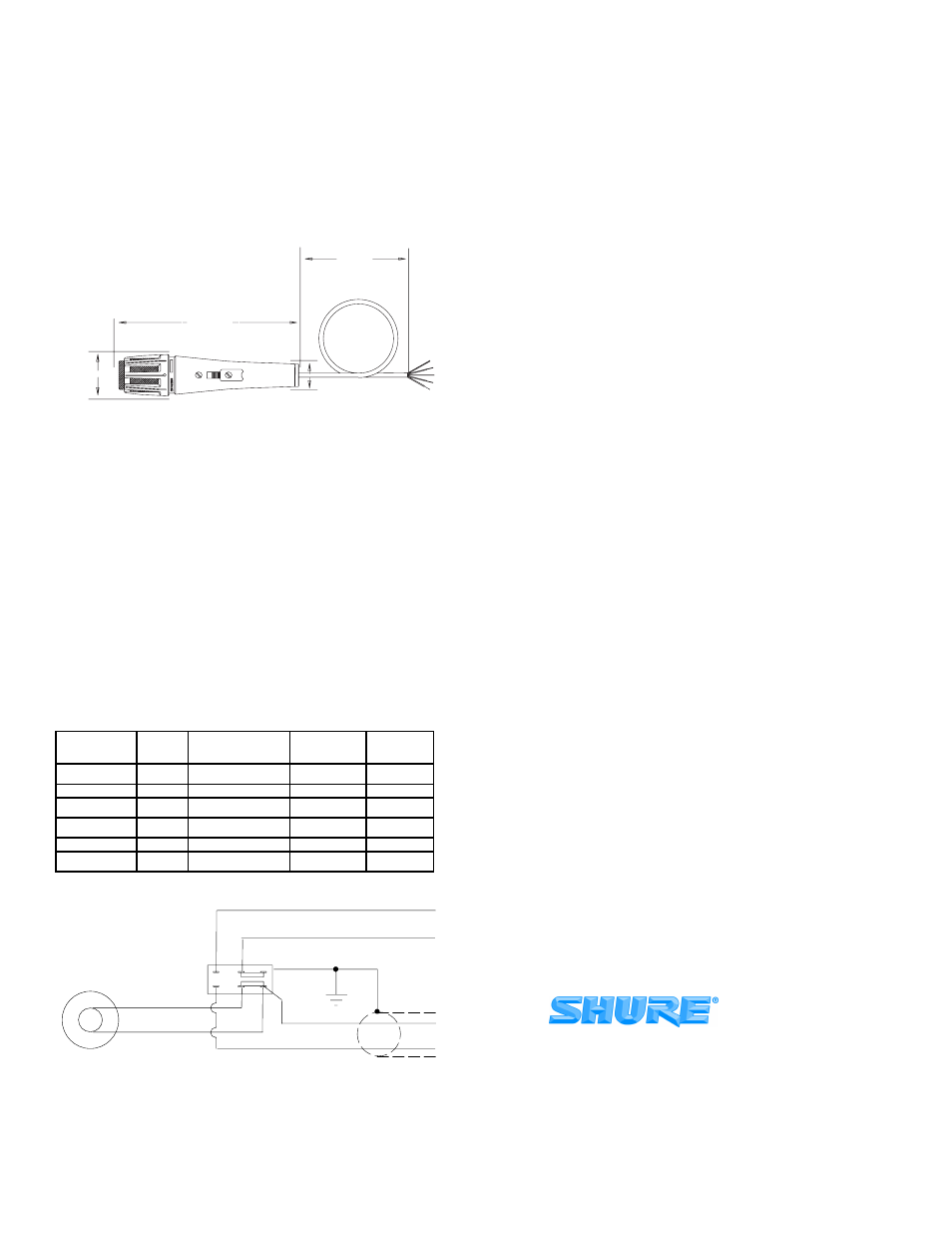

DIMENSIONS (FIGURE 3)
OVERALL DIMENSIONS
FIGURE 3
Net Weight
315 grams (11.1 oz)
CERTIFICATION
Conforms to European Union directives, eligible to bear CE
marking; meets European Union EMC Immunity Requirements
(EN 50 082-1, 1992).
WIRING CONNECTIONS
The RED and BLACK cable leads are the microphone audio
conductors for balanced-line connections; the shield is connected
to the amplifier ground. The GREEN and WHITE leads control an
external relay or switching circuit. Refer to the following table and
the wiring diagram in Figure 4.
INTERNAL CONNECTIONS
FIGURE 4
MOUNTING
To mount the microphone on a gooseneck or fixed pipe with a
5-8 in. 27 mounting thread, proceed as follows:
1. Use the supplied hex wrench to loosen the setscrew enough
so that the end cap can be unscrewed from the microphone.
2. Remove the end cap from the microphone.
3. Remove the thin metal washer and the metal spacer.
4. Replace the washer by sliding it on to the cable and up into the
end of the microphone.
5. Slip the cable through the gooseneck or pipe.
6. Thread the microphone firmly onto the end of the gooseneck
or pipe.
7. Tighten the setscrew to prevent the microphone from loosen-
ing.
FURNISHED ACCESSORIES
1.27 mm (.050 mm) Hex Wrench. . . . . . . . . . . . . 80A67
REPLACEMENT PARTS
Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R180
Grille Assembly . . . . . . . . . . . . . . . . . . . . . . . . .RK334G
Cable, 1.8 m (6 ft) . . . . . . . . . . . . . . . . . . . . . . 70A4172
OPTIONAL ACCESSORIES
Black Gooseneck, 0.3 m (12 in.) . . . . . . . . . . . . . G12B
Black Heavy-duty Mounting Flange. . . . . . . . . A13HDB
Windscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1WS
Black Mounting Flange. . . . . . . . . . . . . . . . . . . . . . A12B
For additional service or parts information, please contact
Shure's Service department at 1-847-600-8699. Outside the
United States, please contact your authorized Shure Service
Center.
INPUT TYPE WIRE
COLOR
FUNCTION XLR
CONNECTOR
1/4 IN.
PHONE
PLUG
RED AUDIO PIN 2 TIP
UNBALANCED BLACK AUDIO GROUND PIN 3 SLEEVE
SHIELD CHASSIS GROUND PIN 1 SLEEVE
RED AUDIO + PIN 2 TIP
BALANCED BLACK AUDIO - PIN 3 RING
SHIELD CHASSIS GROUND PIN 1 SLEEVE
3.75 cm
1.5 in.
1.8 m
6 ft
2 cm
0.85 in.
16.5 cm
6.5 in.
SWITCH SHOWN IN ”OFF” POSITION
SHIELD
