The following illustration shows how to
connect video components such as DVD
player, DVD recorder, satellite tuner or VCR.
If you connect a DVD recorder
Be sure to change the factory setting of the
DVD input button on the remote so that you
can use the button to control your DVD
recorder. For details, see “Changing button
assignments” (page 57).

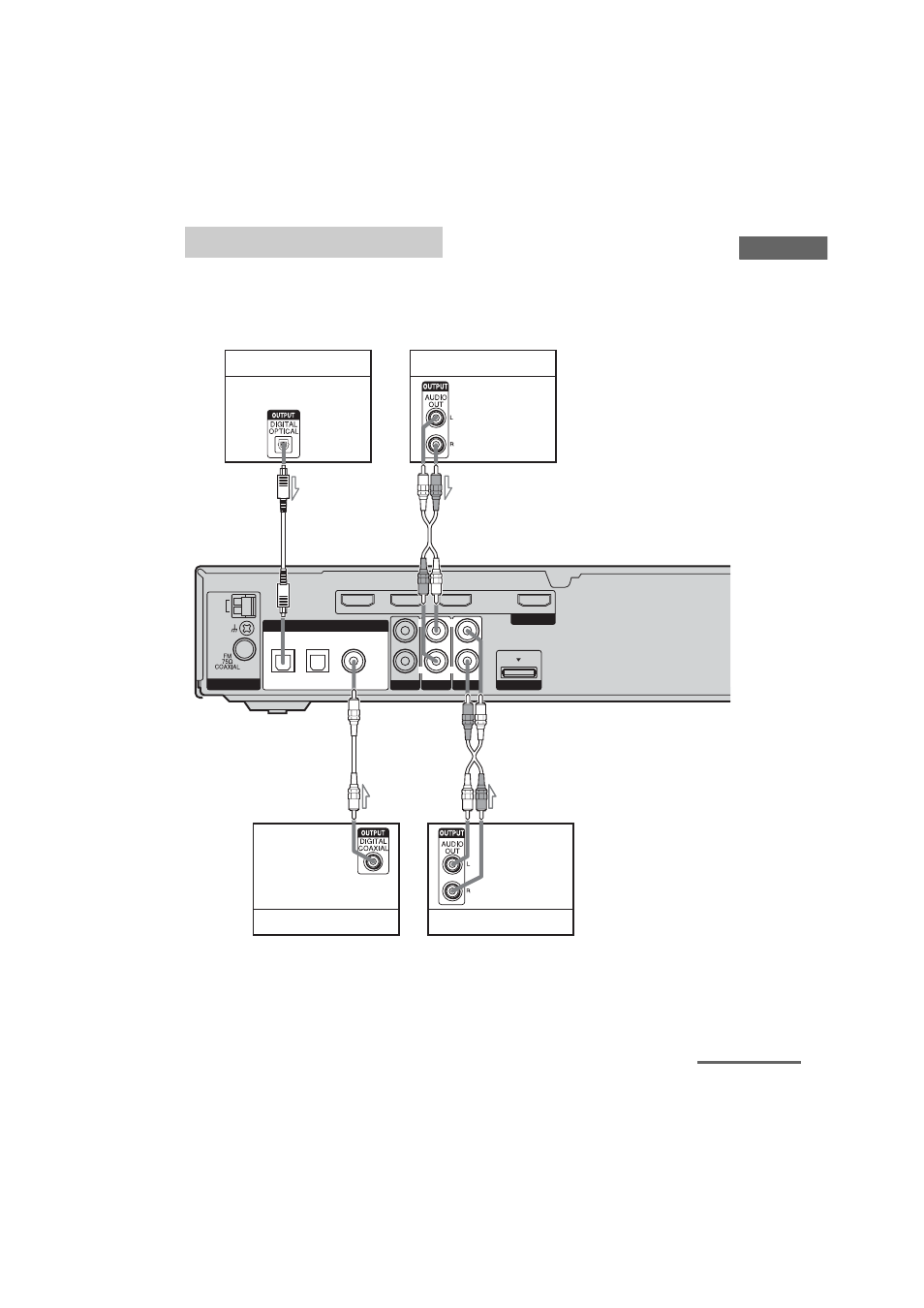

Connecting video components
OPT IN
SAT
OPT IN
VIDEO 1
AUDIO IN
DVD IN SAT IN OUT
ANTENNA SA-CD/CD
AUDIO IN
TV DMPORT
HDMI
AM
R R
L
VIDEO 2/BD IN
AUDIO IN
VIDEO 1
L
COAX IN
DVD
DIGITAL
A B
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Coaxial digital cord (supplied)
DVD player/DVD recorder VCR
Satellite tuner/Set-top box TV
Audio signal Audio signal
B C
Audio signal Audio signal
