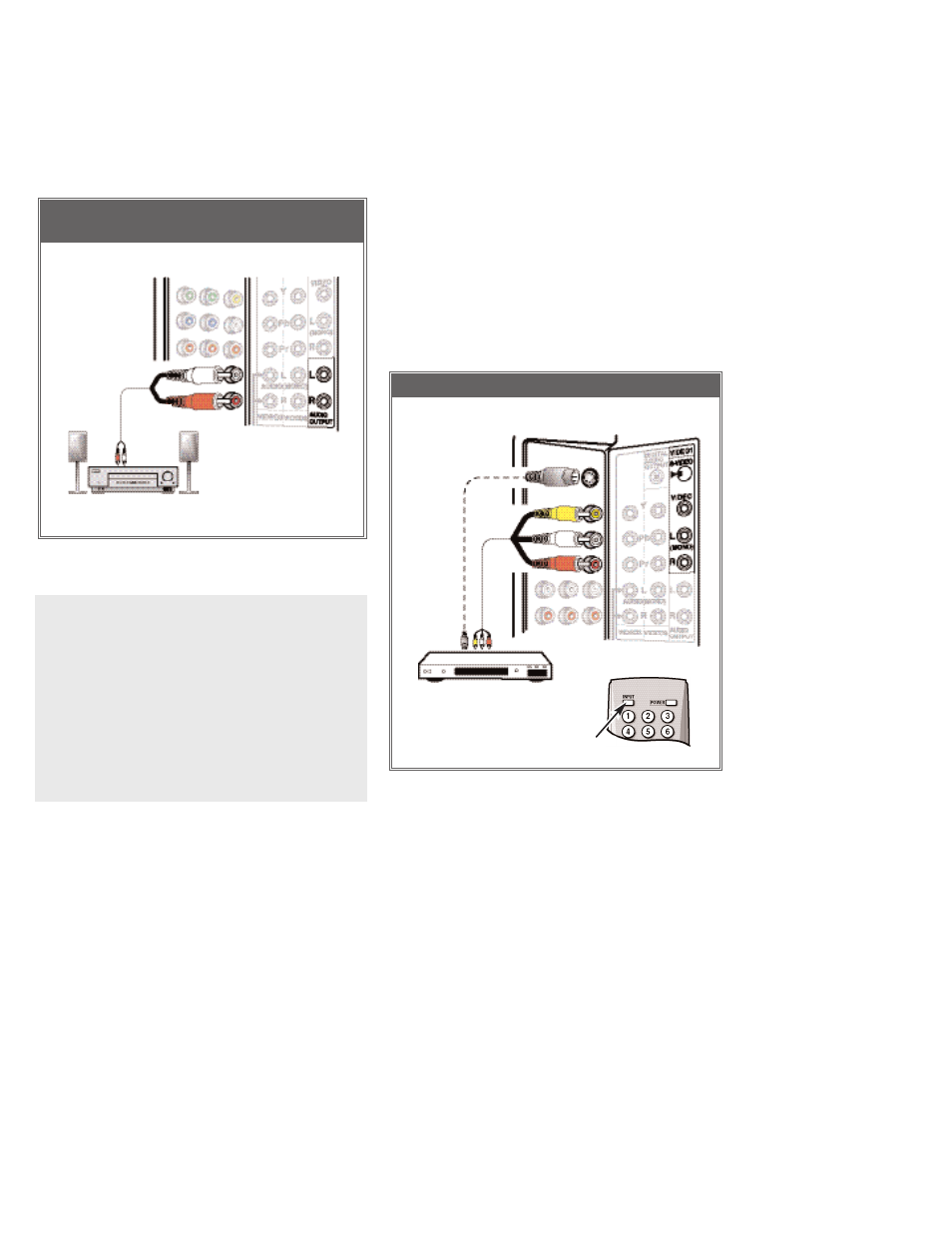

DVD OR VCR CONNECTED TO VIDEO1 JACKS
VIDEO1 (COMPOSITE-YELLOW)— A
Good Picture or
(S-VIDEO)— A Better Picture
CONNECTING A VCR OR DVD TO THE DTV
DVD or VCR
DTV VIDEO1 JACKS
1 Connect a Composite Cable to the VIDEO1
Yellow, White, and Red AV jacks as shown.
2 2 OPTIONAL
Connect DVD to the DTV S-Video In Jack, if avail-
able on your external equipment.
Note: S-Video jack connection overrides a Video jack
connection (VIDEO1).
3 Press INPUT to select Video 1 to view the DVD
or VCR program.
1
AV
JACKS
S-VIDEO
JACK
(OPTIONAL)
2 2
REMOTE CONTROL
3
IMPORTANT FACTS: Don’t be confused by the
phrase “Available in High-Definition.” Compos-
ite jacks offer only 480i (SDTV) resolution.
STEREO AMPLIFIER
BACK VIEW OF DTV
1 Connect a Stereo Amplifier to the DTV Audio Out
jacks as shown.
Note: Do not connect external speakers directly to
the DTV.
1
CONNECTING A STEREO AMPLIFIER
TO THE DTV
AUDIO OUT (FIXED ANALOG) JACKS
STEREO AMPLIFIER CONNECTED TO
ANALOG AUDIO OUT JACKS
OPERATING TIPS:
■
Position your DTV at least 2 feet from stereo
speakers. The magnets in the speakers may
affect the picture quality.
■
For Mono VCR (Single Audio Jack), connect VCR
Audio Out to DTV Audio (L) Input.
■
“No Signal” will appear randomly on the screen
when no signal is detected at the VIDEO1 video
jack.
VIDEO1 (Continued on page 10.)
